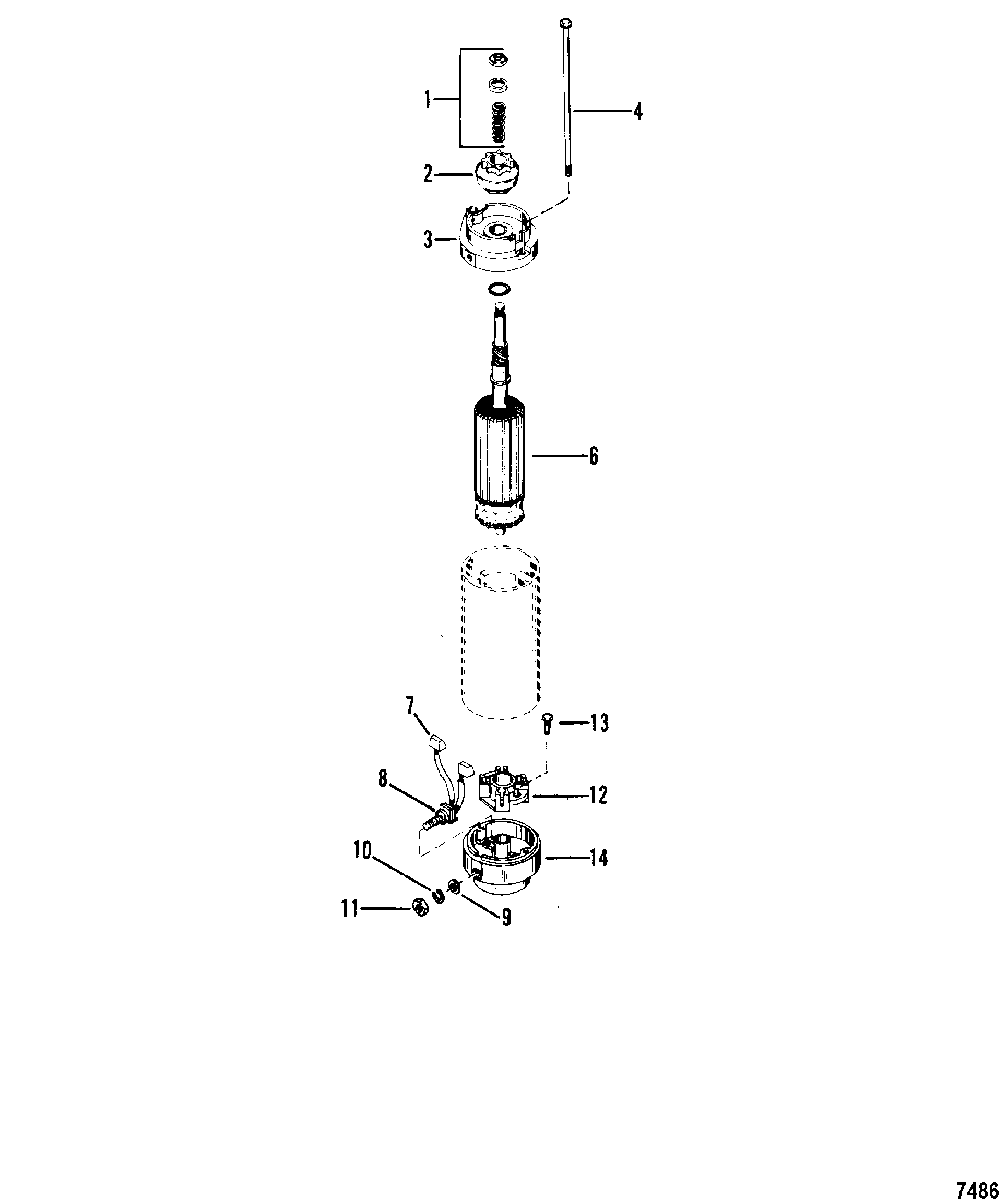

Starter Motor Assembly для Mariner - 45 (4 CYL.) 9466692 & Up
-
№АртикулНазвание
-
-50-898265005 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
190643 DRIVE KITDRIVE KIT
-
2685753 DRIVE ASSEMBLYDRIVE ASSEMBLY
-
375660 PLATE, Drive EndPLATE, Drive End
-
410-75379 BOLT, ThroughBOLT, Through
-
675382 ARMATUREARMATURE
-
7898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
823-57387 BUSHING, InsulatingBUSHING, Insulating
-
912-38013 WASHER, Input StudWASHER, Input Stud
-
1013-26992 LOCKWASHER, (.250) Stainless Steel, Input StudLOCKWASHER, (.250) Stainless Steel, Input Stud
-
1111-20890 NUT, (.250-20), Input StudNUT, (.250-20), Input Stud
-
12898265014 HOLDER, BrushHOLDER, Brush
-
1310-68586 SCREW, Brush and HolderSCREW, Brush and Holder
-
1475383 END CAP, CommutatorEND CAP, Commutator
