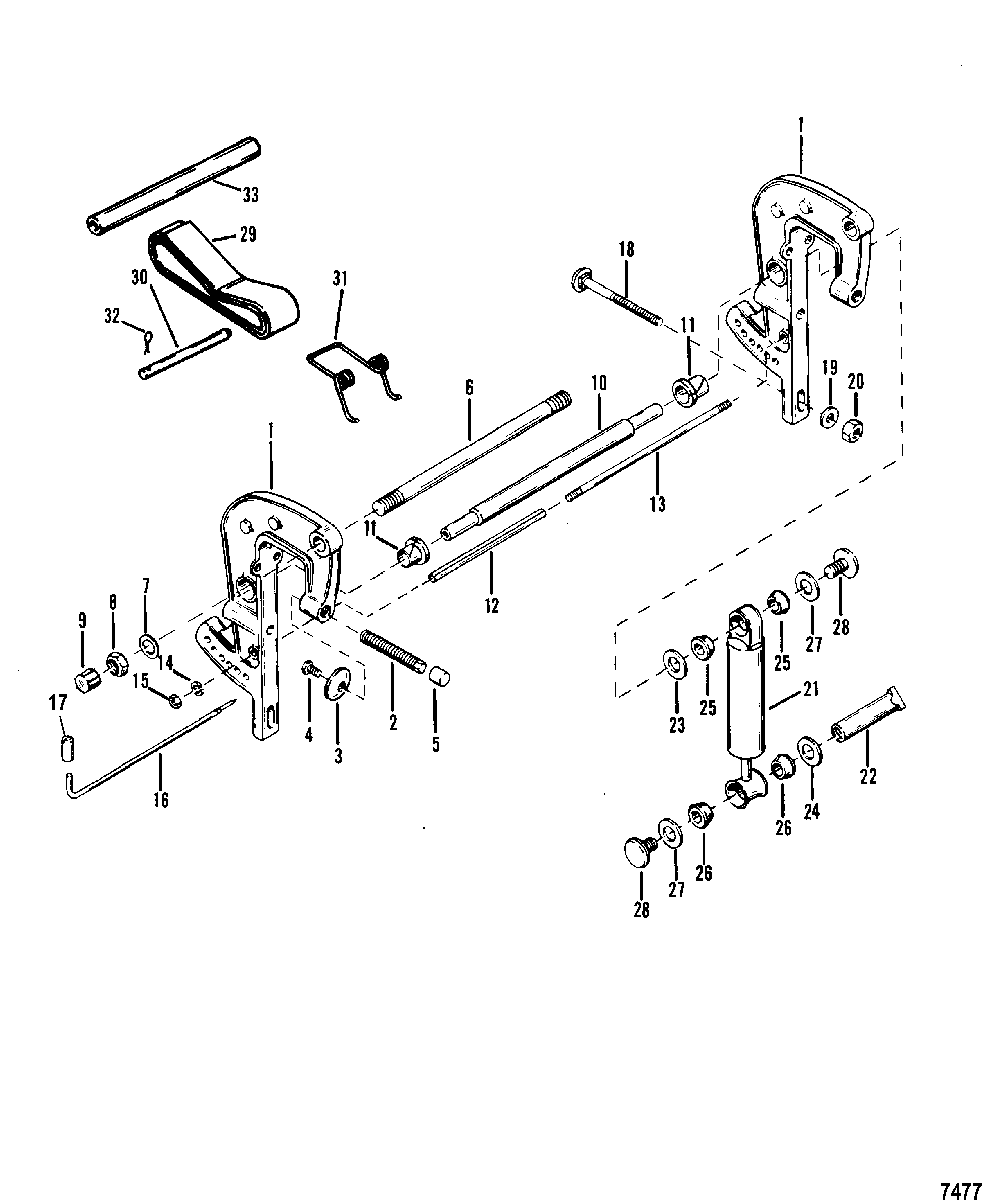

Clamp Bracket Assembly(Non Power Trim) для Mariner - 45 (4 CYL.) 9466692 & Up

№

Артикул

Название
1

1440-8394A2 CLAMP BRACKET ASSEMBLY
(Manual)

CLAMP BRACKET ASSEMBLY
(Manual)

0 ₽
1

1440-8394A1 CLAMP BRACKET ASSEMBLY, Black
(Electric)

CLAMP BRACKET ASSEMBLY, Black
(Electric)

0 ₽
1

1440-8394A3 CLAMP BRACKET ASSEMBLY, Gray
(Electric)

CLAMP BRACKET ASSEMBLY, Gray
(Electric)

0 ₽
2

10-90470A3 THUMB SCREW ASSEMBLY
(Manual)

THUMB SCREW ASSEMBLY
(Manual)

0 ₽
2

10-78492A1 THUMB SCREW ASSEMBLY
(Electric)

THUMB SCREW ASSEMBLY
(Electric)

0 ₽
3

12-78493 WASHER, Thumb Screw

WASHER, Thumb Screw

0 ₽
4

10-78495 SCREW, Washer to Thumb Screw

SCREW, Washer to Thumb Screw

2 300 ₽
5

75043 CAP, Thumb Screw

CAP, Thumb Screw

0 ₽
6

8M0041936 TILT TUBE

TILT TUBE

2 820 ₽
7

12-52864 WASHER, Tilt Tube

WASHER, Tilt Tube

0 ₽
8

11-858869 NUT, (.875-14), Tilt Tube

NUT, (.875-14), Tilt Tube

330 ₽
9

53078 CAP, Plastic - Tilt Tube

CAP, Plastic - Tilt Tube

0 ₽
10

55-28416 PIN, Upper Shock
(With Shock Absorber)

PIN, Upper Shock
(With Shock Absorber)

6 970 ₽
11

23-73203 BUSHING, Clamp Bracket

BUSHING, Clamp Bracket

0 ₽
12

23-59623 SPACER, Clamp Bracket Stud

SPACER, Clamp Bracket Stud

0 ₽
13

16-59625 STUD, Clamp Bracket

STUD, Clamp Bracket

0 ₽
14

13-26993 LOCKWASHER, (.312), Clamp Bracket Stud

LOCKWASHER, (.312), Clamp Bracket Stud

140 ₽
15

11-28770 NUT, (.312-24) Stainless Steel, Clamp Bracket Stud

NUT, (.312-24) Stainless Steel, Clamp Bracket Stud

110 ₽
16

17-8M0026068 PIN ASSEMBLY, Tilt Lock

PIN ASSEMBLY, Tilt Lock

4 970 ₽
18

10-68298 BOLT, (.375-16 x 3.250), Clamp Bracket to Tramsom (3.25 Inch)

BOLT, (.375-16 x 3.250), Clamp Bracket to Tramsom (3.25 Inch)

0 ₽
19

12-46765 WASHER, Clamp Bracket Bolt

WASHER, Clamp Bracket Bolt

570 ₽
18

10-89673 SCREW, (.375-16 x 5.00), Clamp Bracket to Transom (5 Inch)

SCREW, (.375-16 x 5.00), Clamp Bracket to Transom (5 Inch)

0 ₽
19

12-28420 WASHER, (1-1/ 4 x 25/64 x .125 SS), Clamp Bracket Bolt

WASHER, (1-1/ 4 x 25/64 x .125 SS), Clamp Bracket Bolt

3 680 ₽
19

12-68300 WASHER, (..88 x .39 x .06), Clamp Bracket Bolt

WASHER, (..88 x .39 x .06), Clamp Bracket Bolt

0 ₽
20

11-82671112 NUT, Clamp Bracket Bolt

NUT, Clamp Bracket Bolt

230 ₽
21

55-58780A7 SHOCK ABSORBER, Black
(With Shock Absorber)

SHOCK ABSORBER, Black
(With Shock Absorber)

32 410 ₽
21

55-58780A4 SHOCK ABSORBER, Gray
(With Shock Absorber)

SHOCK ABSORBER, Gray
(With Shock Absorber)

0 ₽
22

55-696531 PIN, Lower Shock
(With Shock Absorber)

PIN, Lower Shock
(With Shock Absorber)

0 ₽
23

12-34937 WASHER, (.766 x 1.312 x .125), Upper Bushing Retainer (Inner)
(With Shock Absorber)

WASHER, (.766 x 1.312 x .125), Upper Bushing Retainer (Inner)
(With Shock Absorber)

0 ₽
24

12-59378 WASHER, Lower Bushing Retainer (Inner)
(With Shock Absorber)

WASHER, Lower Bushing Retainer (Inner)
(With Shock Absorber)

220 ₽
25

23-32171 BUSHING, Rubber - Shock Absorber (Upper)
(With Shock Absorber)

BUSHING, Rubber - Shock Absorber (Upper)
(With Shock Absorber)

0 ₽
26

23-28198 BUSHING, Rubber - Shock Absorber (Lower)
(With Shock Absorber)

BUSHING, Rubber - Shock Absorber (Lower)
(With Shock Absorber)

0 ₽
27

12-69374 WASHER, Upper and Lower Bushing (Outer)
(With Shock Absorber)

WASHER, Upper and Lower Bushing (Outer)
(With Shock Absorber)

0 ₽
28

10-69375A1 SCREW, (.500-20 x .625), Upper and Lower Shock Pin (0.625 Inch)
(With Shock Absorber)

SCREW, (.500-20 x .625), Upper and Lower Shock Pin (0.625 Inch)
(With Shock Absorber)

0 ₽
29

98876 STRAP, Tilt Stop
(Without Shock Absorber)

STRAP, Tilt Stop
(Without Shock Absorber)

0 ₽
30

98878 PIN, Lower Shock Mount
(Without Shock Absorber)

PIN, Lower Shock Mount
(Without Shock Absorber)

0 ₽
31

24-98875 SPRING
(Without Shock Absorber)

SPRING
(Without Shock Absorber)

0 ₽
32

18-328571 COTTER PIN
(Without Shock Absorber)

COTTER PIN
(Without Shock Absorber)

270 ₽
33

98877 SHOCK MOUNT, Upper
(Without Shock Absorber)

SHOCK MOUNT, Upper
(Without Shock Absorber)

0 ₽
