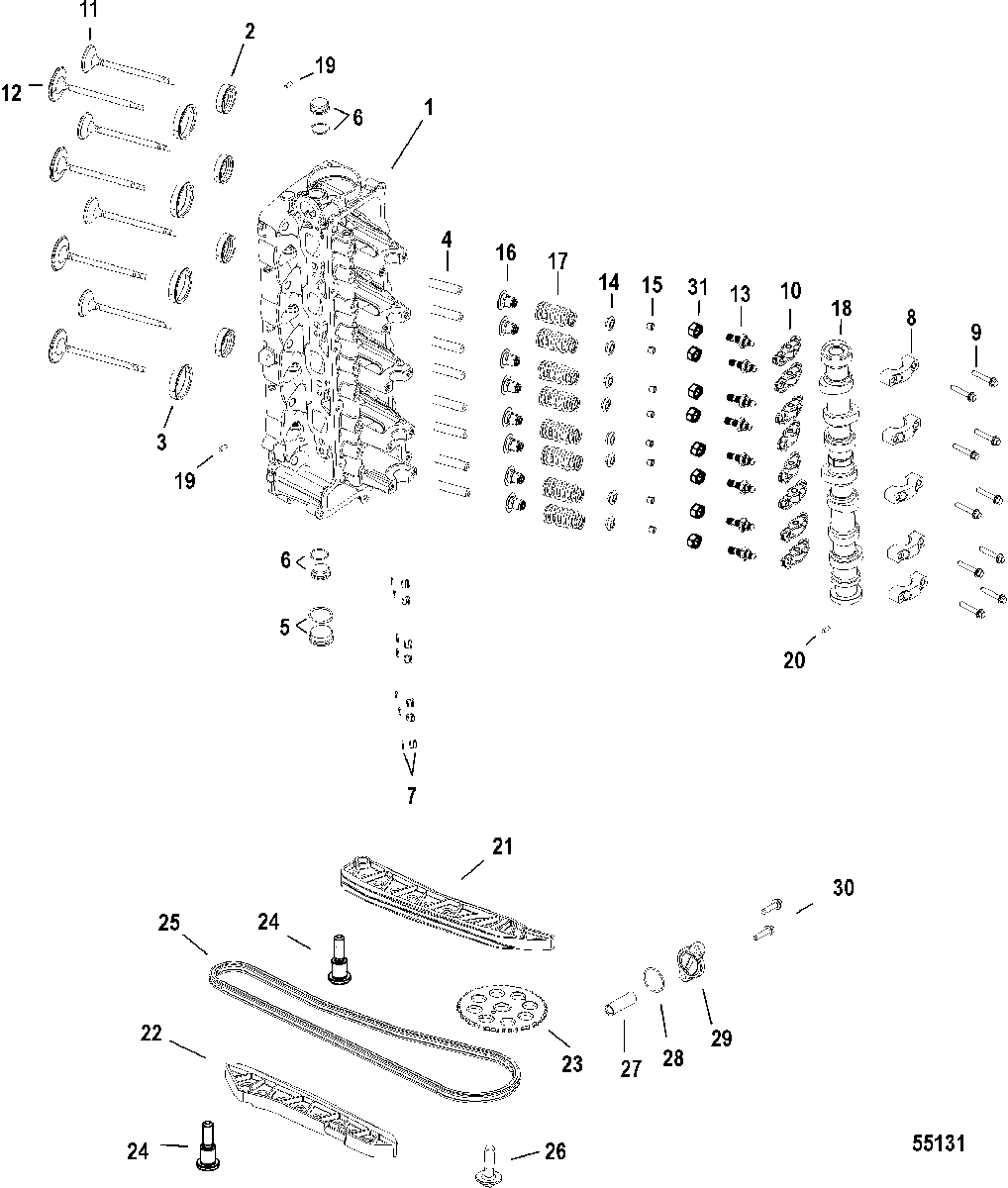

Cylinder Head and Camshaft для Mariner - 75 EFI (4-STROKE) 2B095049 & Up
-
№АртикулНазвание
-
-900-8M0098627 CYLINDER HEAD ASSEMBLY
65 Jet, 75, 80, 90, 100 HpCYLINDER HEAD ASSEMBLY
65 Jet, 75, 80, 90, 100 Hp -
-900-8M0098627 CYLINDER HEAD ASSEMBLY, 75,90 SeaProCYLINDER HEAD ASSEMBLY, 75,90 SeaPro
-
-900-8M0121260 CYLINDER HEAD ASSEMBLY
115 and 80 JetCYLINDER HEAD ASSEMBLY
115 and 80 Jet -
-900-8M0121260 CYLINDER HEAD ASSEMBLY, 115 SeaProCYLINDER HEAD ASSEMBLY, 115 SeaPro
-
1900-8M0091291 CYLINDER HEAD ASSEMBLY, BARECYLINDER HEAD ASSEMBLY, BARE
-
28M0056611 SEAT - EXHAUST VALVESEAT - EXHAUST VALVE
-
38M0056610 SEAT - INTAKE VALVESEAT - INTAKE VALVE
-
48M0054533 GUIDE - VALVEGUIDE - VALVE
-
519-8M0087454 PLUG, (30 MM)PLUG, (30 MM)
-
619-8M0087453 PLUG, (24 MM)PLUG, (24 MM)
-
719-8M0087446 PLUG, (10 MM)PLUG, (10 MM)
-
8NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
910-892454035 BOLT, (M6 x 36 MM)BOLT, (M6 x 36 MM)
-
108M6106000 ROLLER FINGER FOLLOWERROLLER FINGER FOLLOWER
-
118M0098633 VALVE - EXHAUSTVALVE - EXHAUST
-
118M0098633 VALVE, Exhaust, SeaProVALVE, Exhaust, SeaPro
-
128M0098632 VALVE - INTAKEVALVE - INTAKE
-
128M0098632 VALVE, Intake, SeaProVALVE, Intake, SeaPro
-
1316-8M0073719 STUD, BALL END , (M9 X 1)STUD, BALL END , (M9 X 1)
-
148M0054536 RETAINER - VALVERETAINER - VALVE
-
1528-8M0054537 KEY - VALVEKEY - VALVE
-
1626-8M6105000 SEAL - VALVE STEM ASSEMBLYSEAL - VALVE STEM ASSEMBLY
-
1724-8M6102000 SPRING - VALVESPRING - VALVE
-
18400-8M0098630 CAMSHAFT ASSEMBLY
65 Jet, 75, 80, 90, 100 HpCAMSHAFT ASSEMBLY
65 Jet, 75, 80, 90, 100 Hp -
18400-8M0098630 CAMSHAFT ASSEMBLY, 75,90 SeaProCAMSHAFT ASSEMBLY, 75,90 SeaPro
-
18400-8M0121261 CAMSHAFT ASSEMBLY
115 and 80 JetCAMSHAFT ASSEMBLY
115 and 80 Jet -
18400-8M0121261 CAMSHAFT ASSEMBLY, 115 SeaProCAMSHAFT ASSEMBLY, 115 SeaPro
-
1917-8M0084726 PIN - DOWELPIN - DOWEL
-
2017-8M0058695 PIN - DOWELPIN - DOWEL
-
218M0090800 CHAIN BLADECHAIN BLADE
-
228M0090799 CHAIN GUIDECHAIN GUIDE
-
2343-880550 SPROCKETSPROCKET
-
2410-8M0086569 SCREW - SHOULDER, (M8 X 1.25)SCREW - SHOULDER, (M8 X 1.25)
-
258M0128085 CHAIN - CAM DRIVECHAIN - CAM DRIVE
-
2610-8M0021532 SCREW, (M12 x 40 MM)SCREW, (M12 x 40 MM)
-
278M0057657 TENSIONER ASSY, Timing ChainTENSIONER ASSY, Timing Chain
-
2825-898836 O-RING, BrownO-RING, Brown
-
291100-8M0064752 END CAP - CAM TENSIONEREND CAP - CAM TENSIONER
-
3010-8M0103807 SCREW, (M6 x 25 MM) Stainless SteelSCREW, (M6 x 25 MM) Stainless Steel
-
3111-8M0072563 NUT, HEXNUT, HEX
