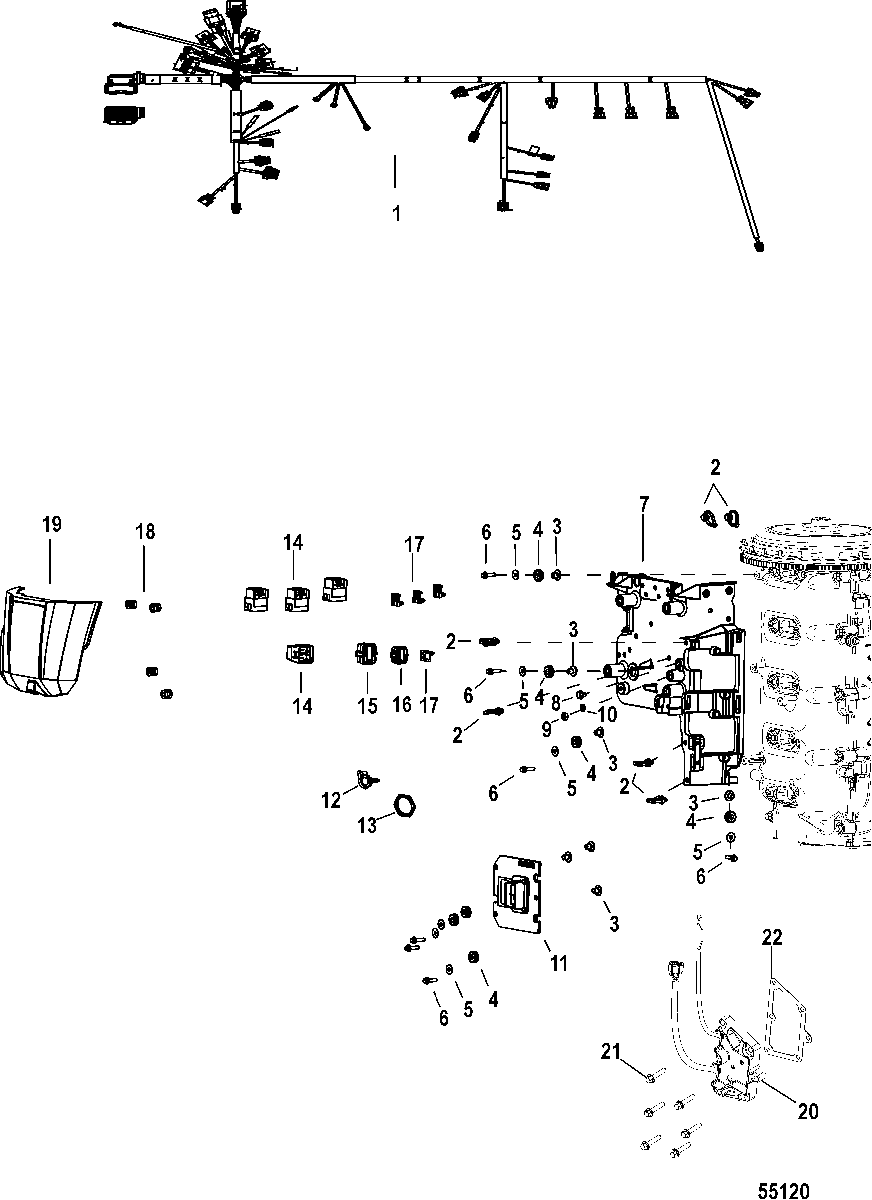

Electrical для Mariner - 75 EFI (4-STROKE) 2B095049 & Up
-
№АртикулНазвание
-
184-8M0088060 WIRING HARNESS - MAINWIRING HARNESS - MAIN
-
254-899145 CLIP, Tie StrapCLIP, Tie Strap
-
323-856954 BUSHINGBUSHING
-
425-834985 GROMMETGROMMET
-
512-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
610-8M0103807 SCREW, (M6 x 25 MM) Stainless SteelSCREW, (M6 x 25 MM) Stainless Steel
-
78M0092349 PLATE - ELECTRICALPLATE - ELECTRICAL
-
810-40011145 SCREW, (M8 x 10) Stainless SteelSCREW, (M8 x 10) Stainless Steel
-
911-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
1013-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1177-8M0116527 ECM 75HP 4SECM 75HP 4S
-
1177-8M0116524 ECM 75HP 4S , SeaProECM 75HP 4S , SeaPro
-
1177-8M0116528 ECM 80HP 4SECM 80HP 4S
-
1177-8M0116529 ECM 90HP 4SECM 90HP 4S
-
1177-8M0116525 ECM 90HP 4S, SeaProECM 90HP 4S, SeaPro
-
1177-8M0116530 ECM 100HP 4SECM 100HP 4S
-
1177-8M0116531 ECM 115HP 4SECM 115HP 4S
-
1177-8M0116526 ECM 115HP 4S, SeaProECM 115HP 4S, SeaPro
-
1254-858954 CLIP, (.625)CLIP, (.625)
-
1311-889664 NUT, (1.500-18) Black NylonNUT, (1.500-18) Black Nylon
-
14882751 RELAYRELAY
-
158M0047885 FUSE COVER, With SparesFUSE COVER, With Spares
-
16858754 COVER, FuseCOVER, Fuse
-
178M6001733 CLIP - RELAY, DOUBLE NAILCLIP - RELAY, DOUBLE NAIL
-
1825-821555001 GROMMETGROMMET
-
198M0097173 COVER, ELECTRICAL PLATECOVER, ELECTRICAL PLATE
-
198M0100266 COVER, , Electrical Plate
SeaPro OnlyCOVER, , Electrical Plate
SeaPro Only -
208M0133642 VOLTAGE REGULATORVOLTAGE REGULATOR
-
2110-8M0103808 SCREW, (M6 x 30 MM) Stainless SteelSCREW, (M6 x 30 MM) Stainless Steel
-
2227-8M0072790 GASKET - VOLTAGE REGULATORGASKET - VOLTAGE REGULATOR
