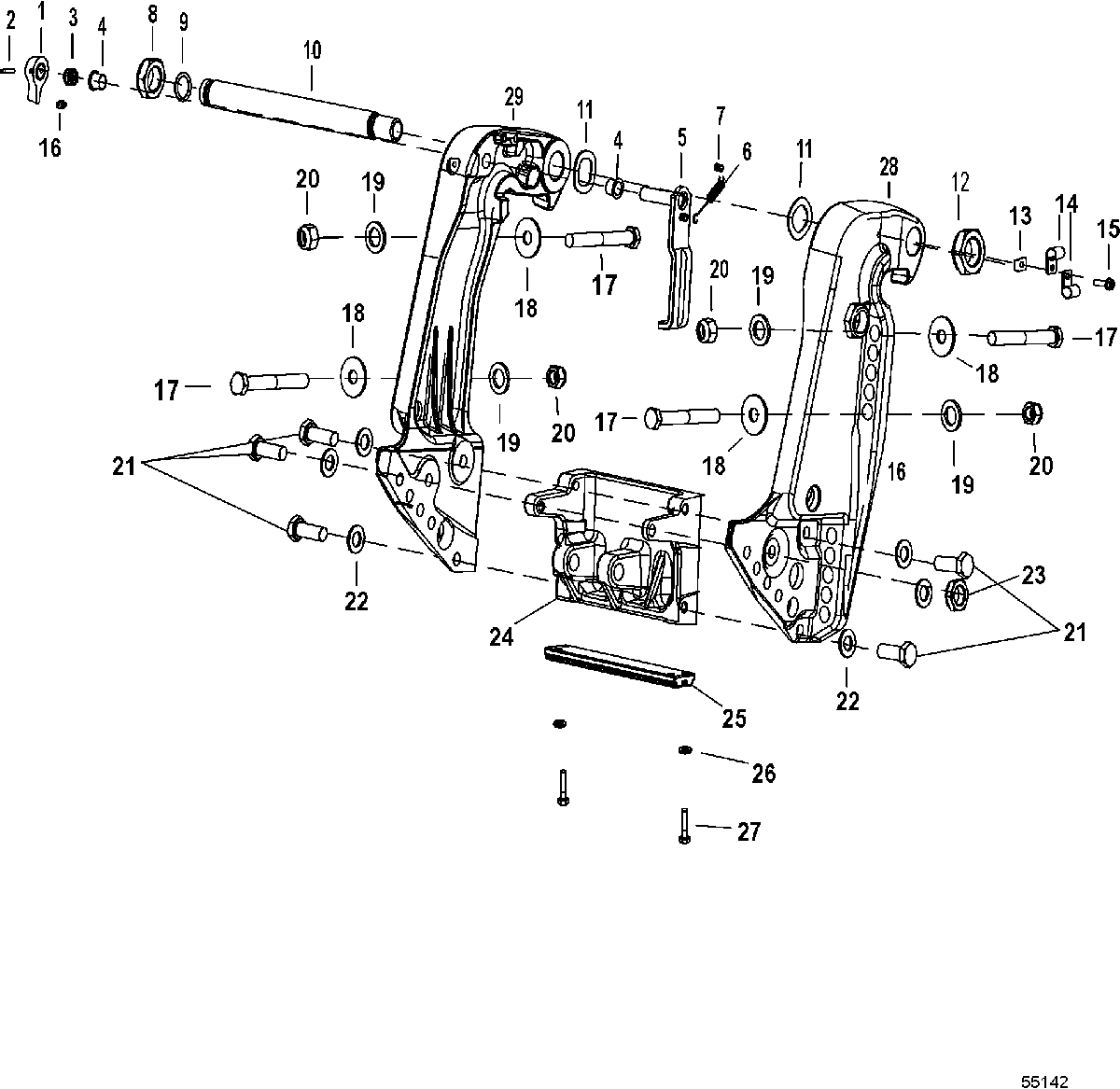

Transom Bracket для Mariner - 75 EFI (4-STROKE) 2B095049 & Up
-
№АртикулНазвание
-
199633 KNOBKNOB
-
217-99615 PIN, GroovePIN, Groove
-
324-830900 SPRING, CompressionSPRING, Compression
-
423-65830 NYLINERNYLINER
-
58M0109798 LEVER ASSEMBLY, Tilt LockLEVER ASSEMBLY, Tilt Lock
-
624-830899 SPRING, TensionSPRING, Tension
-
717-893709 PINPIN
-
811-826135 NUT, (1.00-14) Nylon InsertNUT, (1.00-14) Nylon Insert
-
925-45711 O-RING, (.612 x .103)O-RING, (.612 x .103)
-
10826125A1 TILT TUBETILT TUBE
-
1113-88750 WASHERWASHER
-
1211-826164 NUT, (.875-14)NUT, (.875-14)
-
138M0084613 C WASHERC WASHER
-
1454-22740 CLIPCLIP
-
1510-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
1622-98727 FITTING, GreaseFITTING, Grease
-
1710-677551 SCREW, (.500-20 x 4.500)SCREW, (.500-20 x 4.500)
-
1812-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
1912-54012 WASHER, (.530 x .870 x .105) Stainless SteelWASHER, (.530 x .870 x .105) Stainless Steel
-
2011-82671117 NUT, (.500-20)NUT, (.500-20)
-
2110-858771 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
2212-4002319 WASHERWASHER
-
2311-40114 NUT, (M10 x 1.5)NUT, (M10 x 1.5)
-
248M0086406 BRACKET , AnchorBRACKET , Anchor
-
2597-818298Q1 ANODE KITANODE KIT
-
2612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2710-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
281400-8M0127680 TRANSOM BRACKET, StarboardTRANSOM BRACKET, Starboard
-
291400-8M0127679 TRANSOM BRACKET, PortTRANSOM BRACKET, Port
