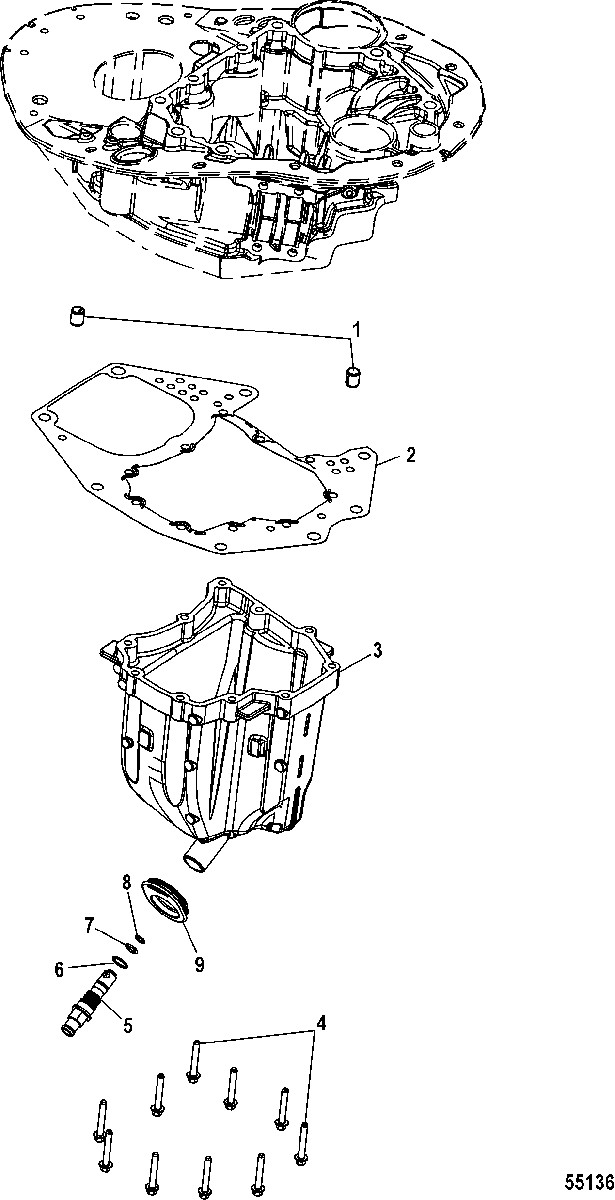

Oil Sump для Mariner - 75 EFI (4-STROKE) 2B095049 & Up
-
№АртикулНазвание
-
117-821327 PIN, DowelPIN, Dowel
-
227-8M0078540 GASKETGASKET
-
38M0091528 OIL SUMPOIL SUMP
-
410-8M0103809 SCREW, (M6 x 40 MM) Stainless SteelSCREW, (M6 x 40 MM) Stainless Steel
-
519-8M0112869 OIL PLUG ASSEMBLYOIL PLUG ASSEMBLY
-
625-85045 O-RING, (.551 x .070)O-RING, (.551 x .070)
-
725-62706 O-RING, (.426 x .070)O-RING, (.426 x .070)
-
825-8M0036228 O-RING, (8.1 X 1.6)O-RING, (8.1 X 1.6)
-
98M0068703 GROMMETGROMMET
