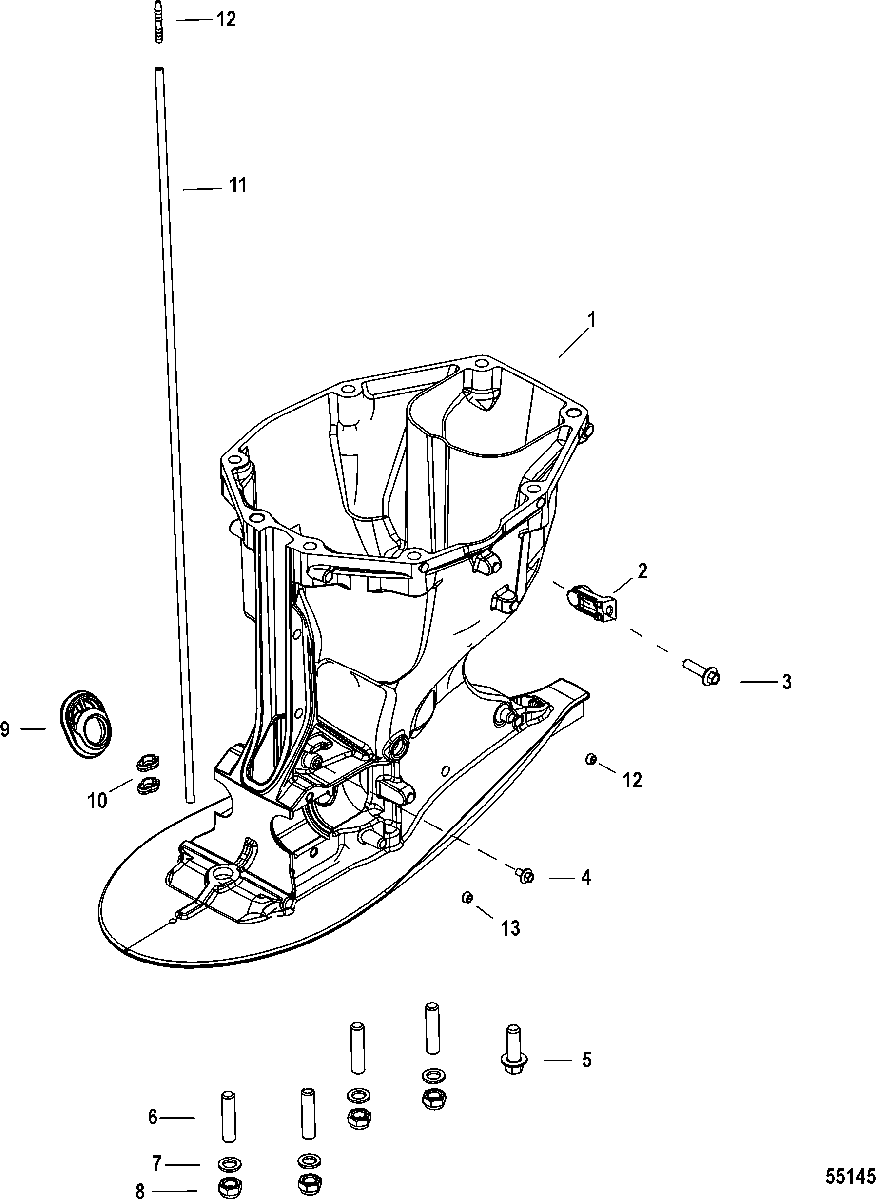

Driveshaft Housing для Mariner - 75 EFI (4-STROKE) 2B095049 & Up
-
№АртикулНазвание
-
11500-8M0091527 DRIVESHAFT HOUSING - LONGDRIVESHAFT HOUSING - LONG
-
28M0090787 BRACKET , FSMBRACKET , FSM
-
310-4010730 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
410-4010610 SCREW, (M6 x 10) Stainless SteelSCREW, (M6 x 10) Stainless Steel
-
510-8M0102995 SCREW, (M12)SCREW, (M12)
-
616-8M0070951 STUD, (M12 x 1.75 x 52)STUD, (M12 x 1.75 x 52)
-
712-856982 WASHER, (.500 x .810 x .090) Stainless SteelWASHER, (.500 x .810 x .090) Stainless Steel
-
811-896895 NUT, (M12)NUT, (M12)
-
98M0068703 GROMMETGROMMET
-
1054-818557001 CLAMPCLAMP
-
1122-8M0057706 SPEEDOMETER HOSE ASSYSPEEDOMETER HOSE ASSY
-
1222-85822T CONNECTOR, StraightCONNECTOR, Straight
-
138M0039082 CAP, Chap SupportCAP, Chap Support
