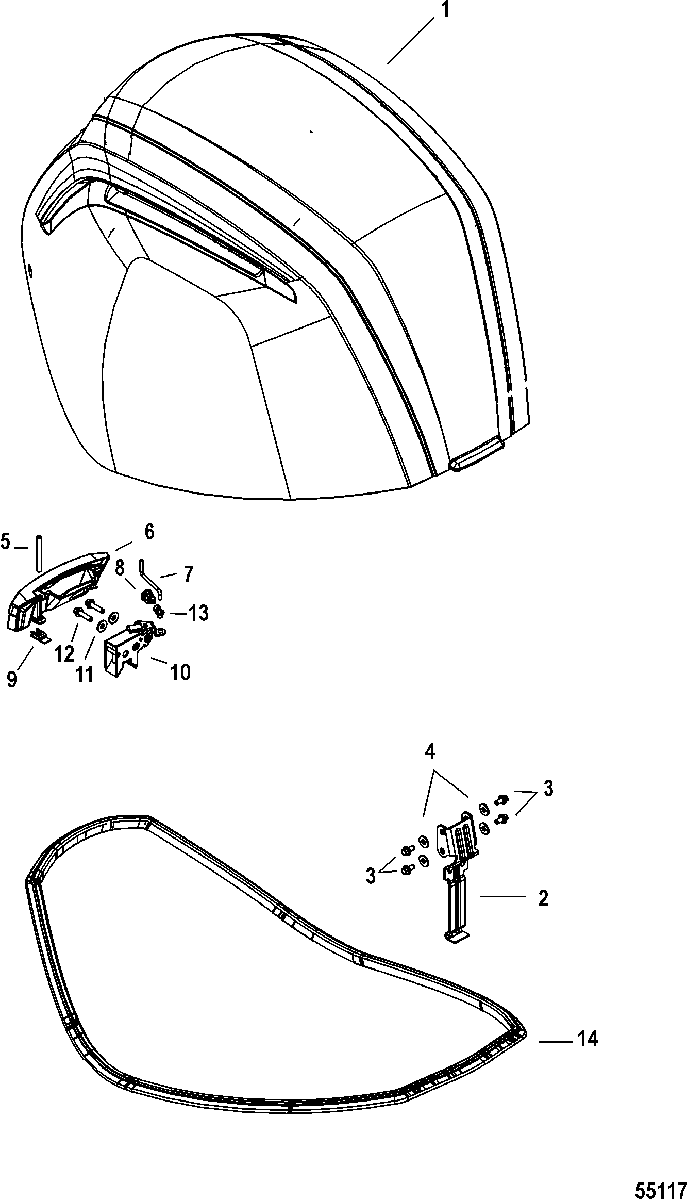

Top Cowl для Mariner - 75 EFI (4-STROKE) 2B095049 & Up
-
№АртикулНазвание
-
1100-8M0087994 TOP COWL ASSEMBLY, Mercury Decaled
Horse Power, Command Thrust and Jet Decals not includedTOP COWL ASSEMBLY, Mercury Decaled
Horse Power, Command Thrust and Jet Decals not included -
18M0090833 TOP COWL ASSEMBLY , Mariner Decaled
Horse Power, Command Thrust and Jet Decals not includedTOP COWL ASSEMBLY , Mariner Decaled
Horse Power, Command Thrust and Jet Decals not included -
1100-8M0091789 TOP COWL ASSEMBLY , Black, Non-DecaledTOP COWL ASSEMBLY , Black, Non-Decaled
-
1100-8M0087995 TOP COWL ASSEMBLY, Gray, Non-DecaledTOP COWL ASSEMBLY, Gray, Non-Decaled
-
1100-8M0096296 TOP COWL ASSEMBLY, Mercury, Decaled SeaProTOP COWL ASSEMBLY, Mercury, Decaled SeaPro
-
28M0055166 HOOK, Top Cowl Latch FrontHOOK, Top Cowl Latch Front
-
310-8M0103804 SCREW, (M6 x 12 MM) Stainless SteelSCREW, (M6 x 12 MM) Stainless Steel
-
412-4002316 WASHERWASHER
-
517-8M0075859 PIN- SPRING, SLOTTEDPIN- SPRING, SLOTTED
-
68M0055191 HANDLE, LATCH
MERCURYHANDLE, LATCH
MERCURY -
68M0088853 HANDLE, LATCH
MARINERHANDLE, LATCH
MARINER -
78M0055189 LINK - LATCH, REARLINK - LATCH, REAR
-
88M0056980 SEAL, Rear LatchSEAL, Rear Latch
-
953-8M0075694 CLIP-SNAPCLIP-SNAP
-
108M0055186 LATCH ASSEMBLYLATCH ASSEMBLY
-
1112-4002316 WASHERWASHER
-
1210-8M0103807 SCREW, (M6 x 25 MM) Stainless SteelSCREW, (M6 x 25 MM) Stainless Steel
-
138M0006054 RETAINERRETAINER
-
148M0087850 SEAL - TOP COWLSEAL - TOP COWL
