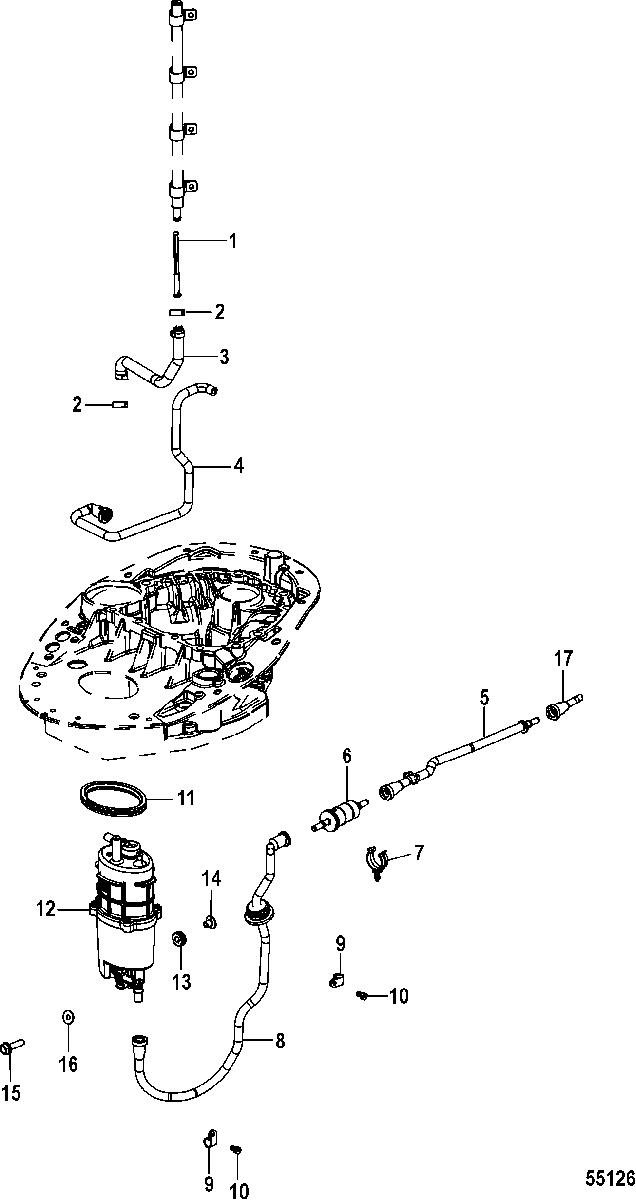

Fuel Supply System-Hoses and Module для Mariner - 75 EFI (4-STROKE) 2B095049 & Up
-
№АртикулНазвание
-
135-8M0090809 FILTERFILTER
-
254-855697 CLAMPCLAMP
-
332-8M0079868 HOSEHOSE
-
432-8M0093068 HOSEHOSE
-
532-8M0090826 HOSEHOSE
-
635-879885Q FILTER, Fuel In-LineFILTER, Fuel In-Line
-
754-8M0063572 HOSEHOSE
-
832-8M0090821 HOSEHOSE
-
954-8M0037098 CLIP, HoseCLIP, Hose
-
1010-8M0037204 SCREW, Nylon, push inSCREW, Nylon, push in
-
118M0037209 GROMMET, FSM RetainerGROMMET, FSM Retainer
-
128M0132733 FUEL SUPPLY MODULE-DUAL PUMPFUEL SUPPLY MODULE-DUAL PUMP
-
1325-834985 GROMMETGROMMET
-
1423-856954 BUSHINGBUSHING
-
1510-8M0103807 SCREW, (M6 x 25 MM) Stainless SteelSCREW, (M6 x 25 MM) Stainless Steel
-
1612-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
1722-8M6002064 FITTING, 8MMFITTING, 8MM
-
1722-8M6002065 FITTING, 10MMFITTING, 10MM
