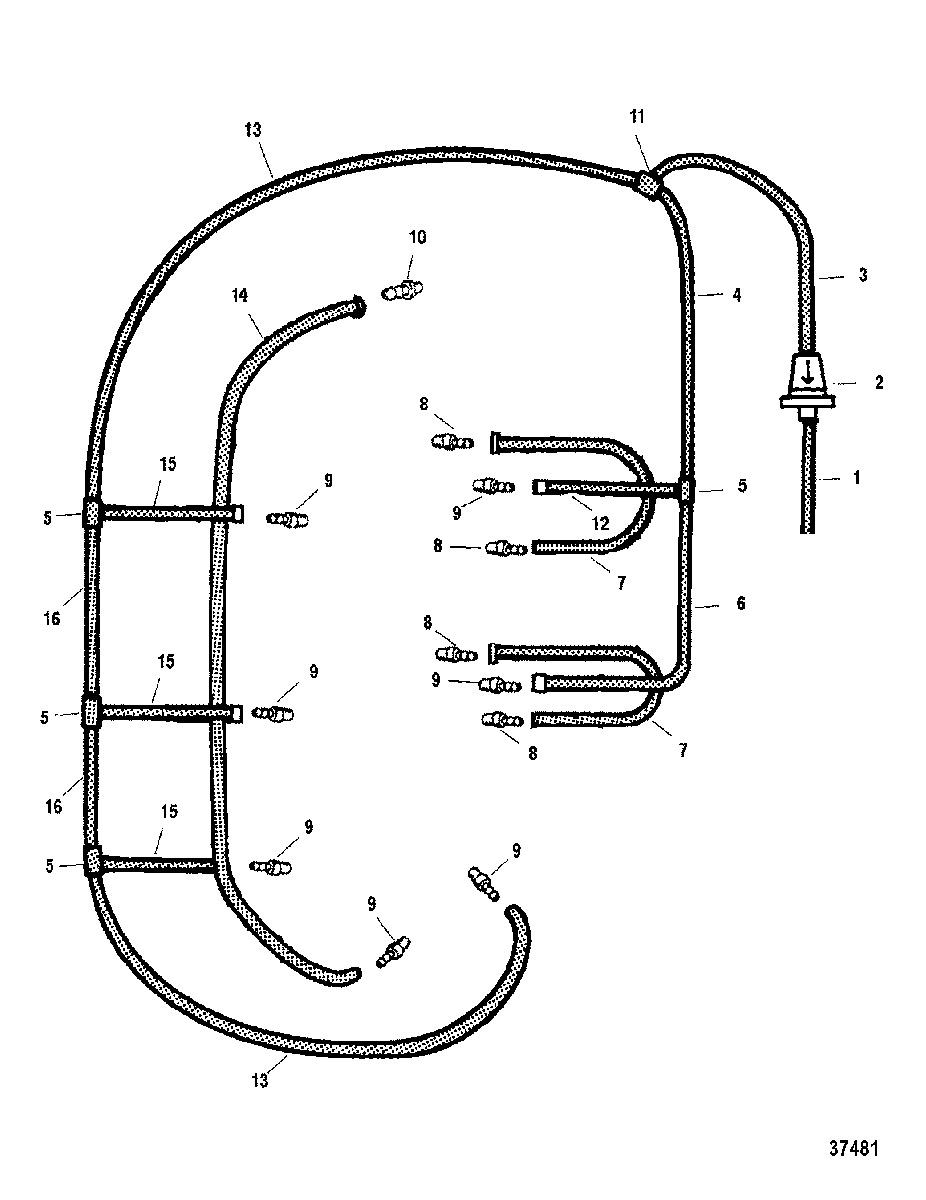

BLEED SYSTEM для Mariner - V-150 (EFI) 0G303046 THRU 0G760299
-
№АртикулНазвание
-
132-9912688 TUBING, (36.00 Inches Bulk) (Cut to 3-1/4 IN.)
USE WHERE APPLICABLETUBING, (36.00 Inches Bulk) (Cut to 3-1/4 IN.)
USE WHERE APPLICABLE -
235-8M0042285 FILTER
USE WHERE APPLICABLEFILTER
USE WHERE APPLICABLE -
332-9912688 TUBING, (36.00 Inches Bulk) (Cut to 7-1/4 IN.)TUBING, (36.00 Inches Bulk) (Cut to 7-1/4 IN.)
-
432-892024122 TUBING, (20.00 Feet Bulk) (Cut to 3-1/2 IN.)TUBING, (20.00 Feet Bulk) (Cut to 3-1/2 IN.)
-
522-59169003 FITTINGFITTING
-
632-892024122 TUBING, (20.00 Feet Bulk) (Cut to 5-1/2 IN.)TUBING, (20.00 Feet Bulk) (Cut to 5-1/2 IN.)
-
732-892024122 TUBING, (20.00 Feet Bulk) (Cut to 9 IN.)TUBING, (20.00 Feet Bulk) (Cut to 9 IN.)
-
822-56759 FITTING, Barbed (PRESS-IN)FITTING, Barbed (PRESS-IN)
-
921-426982 CHECK VALVE (PRESS-IN - 13/16 LONG)CHECK VALVE (PRESS-IN - 13/16 LONG)
-
1021-426233 CHECK VALVE (PRESS-IN - 11/16 LONG)CHECK VALVE (PRESS-IN - 11/16 LONG)
-
1122-18205 TEETEE
-
1232-892024122 TUBING, (20.00 Feet Bulk) (Cut to 1-1/4 IN.)TUBING, (20.00 Feet Bulk) (Cut to 1-1/4 IN.)
-
1332-892024122 TUBING, (20.00 Feet Bulk) (Cut to 9 IN.)TUBING, (20.00 Feet Bulk) (Cut to 9 IN.)
-
1432-892024122 TUBING, (20.00 Feet Bulk) (Cut to 19 IN.)TUBING, (20.00 Feet Bulk) (Cut to 19 IN.)
-
1532-892024122 TUBING, (20.00 Feet Bulk) (Cut to 1 IN.)TUBING, (20.00 Feet Bulk) (Cut to 1 IN.)
-
1632-892024122 TUBING, (20.00 Feet Bulk) (Cut to 4-1/2 IN.)TUBING, (20.00 Feet Bulk) (Cut to 4-1/2 IN.)
-
-823434R97 POWERHEAD ASSEMBLY
(150)POWERHEAD ASSEMBLY
(150) -
-812817R97 POWERHEAD ASSEMBLY
(175)POWERHEAD ASSEMBLY
(175) -
-813043R97 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
