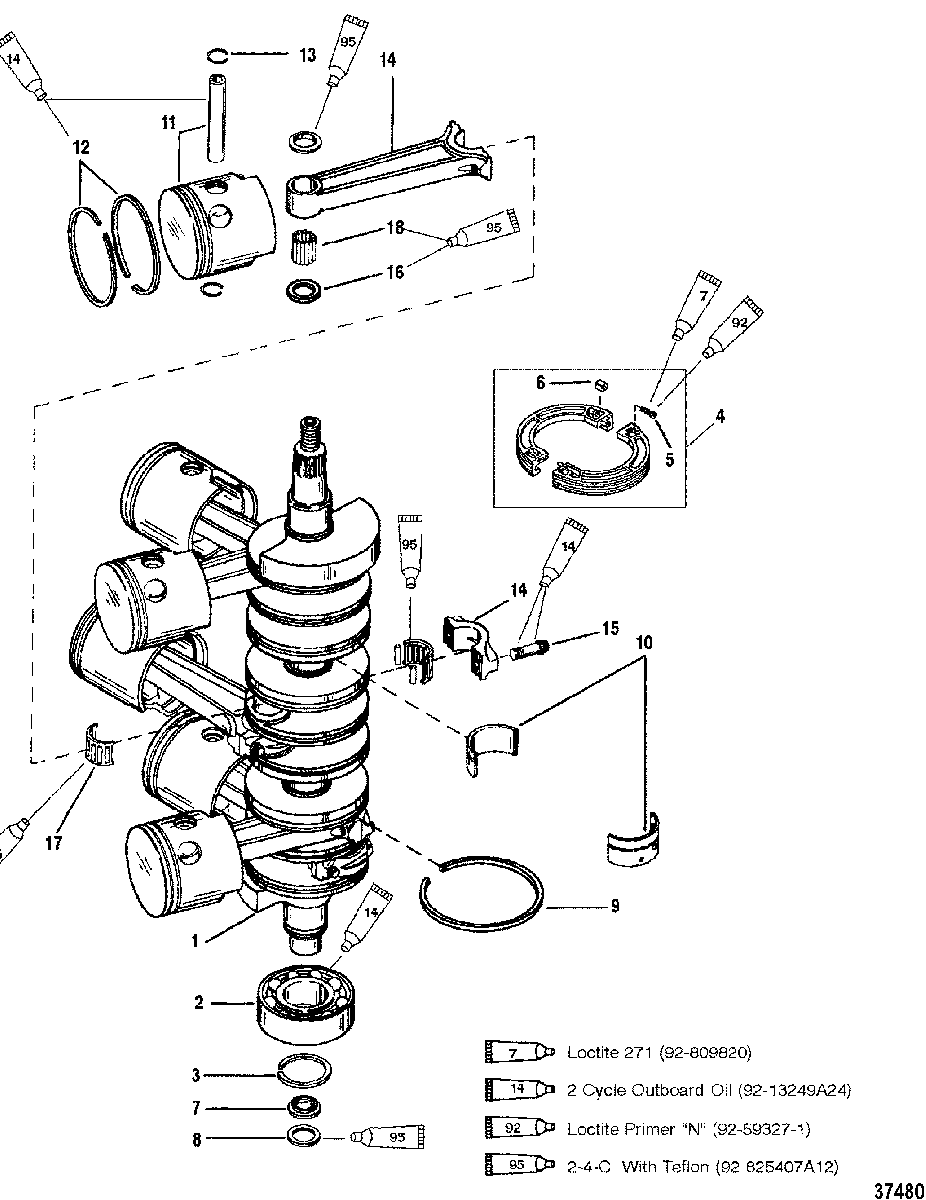

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mariner - V-150 (EFI) 0G303046 THRU 0G760299
-
№АртикулНазвание
-
1455-9536T4 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
230-67923T BEARING, Ball (LOWER)BEARING, Ball (LOWER)
-
353-67446 RINGRING
-
443-14513A09 GEAR SEGMENT KIT, Drive
BROWN GEARGEAR SEGMENT KIT, Drive
BROWN GEAR -
510-854812 SCREW, (#6-32 x .630) Socket Button Head
BROWN GEARSCREW, (#6-32 x .630) Socket Button Head
BROWN GEAR -
611-854811 NUT, Special (#6-32)
BROWN GEARNUT, Special (#6-32)
BROWN GEAR -
443-14513A09 GEAR SEGMENT KIT, Drive
GRAY GEARGEAR SEGMENT KIT, Drive
GRAY GEAR -
510-813073 SCREW, (#6-32 x .620) Socket Head
GRAY GEARSCREW, (#6-32 x .620) Socket Head
GRAY GEAR -
611-813134 NUT, (#6-32) Special
GRAY GEARNUT, (#6-32) Special
GRAY GEAR -
754196A6 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
865800 PACKINGPACKING
-
939-67377T RING, SealingRING, Sealing
-
1031-16756A6 BEARING KITBEARING KIT
-
11785-9738T9 PISTON ASSEMBLY, Standard
(STARBOARD)PISTON ASSEMBLY, Standard
(STARBOARD) -
11785-9738T10 PISTON ASSEMBLY, .015 Oversize
(STARBOARD)PISTON ASSEMBLY, .015 Oversize
(STARBOARD) -
11785-9737T9 PISTON ASSEMBLY, Standard
(PORT)PISTON ASSEMBLY, Standard
(PORT) -
11785-9737A10 PISTON ASSEMBLY, .015 Oversize
(PORT)PISTON ASSEMBLY, .015 Oversize
(PORT) -
1239-822321A12 RING KIT, Piston - StandardRING KIT, Piston - Standard
-
1239-822321A1 RING KIT, Piston - .015 OversizeRING KIT, Piston - .015 Oversize
-
1353-857196 RING, LockRING, Lock
-
14644-818141A13 CONNECTING ROD KITCONNECTING ROD KIT
-
1510-763491 SCREW, (.312-24 x .875)SCREW, (.312-24 x .875)
-
1612-8M0012298 WASHERWASHER
-
1731-8M0045428 BEARING KITBEARING KIT
-
1829-822553 BEARING, NeedleBEARING, Needle
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-823434R97 POWERHEAD ASSEMBLY
(150)POWERHEAD ASSEMBLY
(150) -
-812817R97 POWERHEAD ASSEMBLY
(175)POWERHEAD ASSEMBLY
(175) -
-813043R97 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
