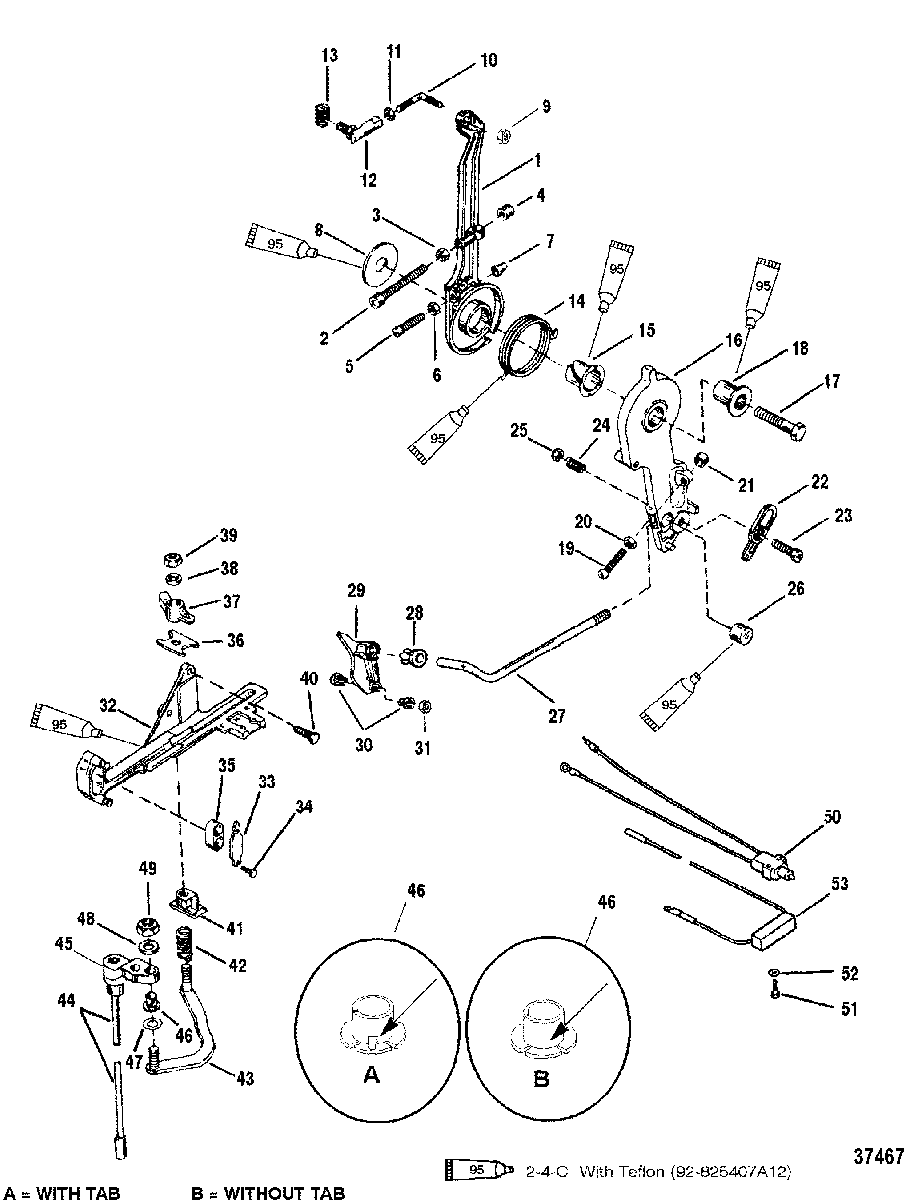

THROTTLE LEVER AND SHIFT SHAFT для Mariner - V-150 (EFI) 0G303046 THRU 0G760299
-
№АртикулНазвание
-
141094A3 LEVER ASSEMBLYLEVER ASSEMBLY
-
210-64022 SCREW, (.250-20 x 2.125)SCREW, (.250-20 x 2.125)
-
311-64015 NUT, (.250-20)NUT, (.250-20)
-
426852 CAP, NylonCAP, Nylon
-
510-13627 SCREW, (.190-32 x 1.250)SCREW, (.190-32 x 1.250)
-
611-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
748039 CAPCAP
-
812-46765 WASHER, (.390 x 1.50 x .120)WASHER, (.390 x 1.50 x .120)
-
911-46438 NUT, (#10-32)NUT, (#10-32)
-
1076035 RODROD
-
1111-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
1262459T BALL JOINT ASSEMBLYBALL JOINT ASSEMBLY
-
1374897T PIVOTPIVOT
-
1424-823235 SPRINGSPRING
-
1523-55171 BUSHINGBUSHING
-
16410952 LEVERLEVER
-
1710-818165 SCREW, (.375-16 x 1.75)SCREW, (.375-16 x 1.75)
-
1823-55164 BUSHINGBUSHING
-
1910-64022 SCREW, (.250-20 x 2.125)SCREW, (.250-20 x 2.125)
-
2011-64015 NUT, (.250-20)NUT, (.250-20)
-
2126852 CAP, NylonCAP, Nylon
-
2239483 LATCHLATCH
-
2310-69026 SCREW, (.250-28 x .880)SCREW, (.250-28 x .880)
-
2424-20099 SPRINGSPRING
-
2511-826709109 NUT, (.250-28)NUT, (.250-28)
-
2614638 BARRELBARREL
-
2714634 RODROD
-
2823-932481 BUSHINGBUSHING
-
298142392 CAMCAM
-
3023-26856 BUSHINGBUSHING
-
3111-826709109 NUT, (.250-28)NUT, (.250-28)
-
32814283A2 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
3398889 LATCHLATCH
-
3410-42975 DRIVE SCREWDRIVE SCREW
-
3539519 CUPCUP
-
3652100 WEAR PLATEWEAR PLATE
-
378M0036768 LATCHLATCH
-
3812-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
3911-826709109 NUT, (.250-28)NUT, (.250-28)
-
4010-53167T SCREW, (.312-18 x .880)SCREW, (.312-18 x .880)
-
41814284 GUIDE BLOCKGUIDE BLOCK
-
4224-20099 SPRINGSPRING
-
4367073A1 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
4479932A16 SHIFT SHAFT ASSEMBLY
(LONG) USE WITH REF #46 WITH TAB, SEE BUBBLE ASHIFT SHAFT ASSEMBLY
(LONG) USE WITH REF #46 WITH TAB, SEE BUBBLE A -
4479932A17 SHIFT SHAFT ASSEMBLY
(X-LONG) USE WITH REF #46 WITH TAB, SEE BUBBLE ASHIFT SHAFT ASSEMBLY
(X-LONG) USE WITH REF #46 WITH TAB, SEE BUBBLE A -
4479932A16 SHIFT SHAFT ASSEMBLY
(LONG) USE WITH REF #46 WITHOUT TAB; SEE BUBBLE BSHIFT SHAFT ASSEMBLY
(LONG) USE WITH REF #46 WITHOUT TAB; SEE BUBBLE B -
4479932A17 SHIFT SHAFT ASSEMBLY
(X-LONG) USE WITH REF #46 WITHOUT TAB; SEE BUBBLE BSHIFT SHAFT ASSEMBLY
(X-LONG) USE WITH REF #46 WITHOUT TAB; SEE BUBBLE B -
45NSS NOT SOLD SEPARATE, SHIFT SHAFT LEVER, UPPER
USE WITH REF #46 WITH TAB, SEE BUBBLE ANOT SOLD SEPARATE, SHIFT SHAFT LEVER, UPPER
USE WITH REF #46 WITH TAB, SEE BUBBLE A -
45NSS NOT SOLD SEPARATE, SHIFT SHAFT LEVER, UPPER
USE WITH REF #46 WITHOUT TAB; SEE BUBBLE BNOT SOLD SEPARATE, SHIFT SHAFT LEVER, UPPER
USE WITH REF #46 WITHOUT TAB; SEE BUBBLE B -
4623-26856 BUSHING
USE WITH REF #44 WITHOUT TAB; SEE BUBBLE BBUSHING
USE WITH REF #44 WITHOUT TAB; SEE BUBBLE B -
4623-26600 BUSHING
USE WITH REF #44 WITH TAB, SEE BUBBLE ABUSHING
USE WITH REF #44 WITH TAB, SEE BUBBLE A -
4713-29720 WAVE WASHERWAVE WASHER
-
4812-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
4911-826709109 NUT, (.250-28)NUT, (.250-28)
-
5087-814281A1 IDLE STABILIZING SHIFT KIT
150/175IDLE STABILIZING SHIFT KIT
150/175 -
5110-77478 SCREW, (#6-32 x .875)
150/175SCREW, (#6-32 x .875)
150/175 -
5212-27882 WASHER
150/175WASHER
150/175 -
5317461A3 RESISTOR MODULE
150/175RESISTOR MODULE
150/175
