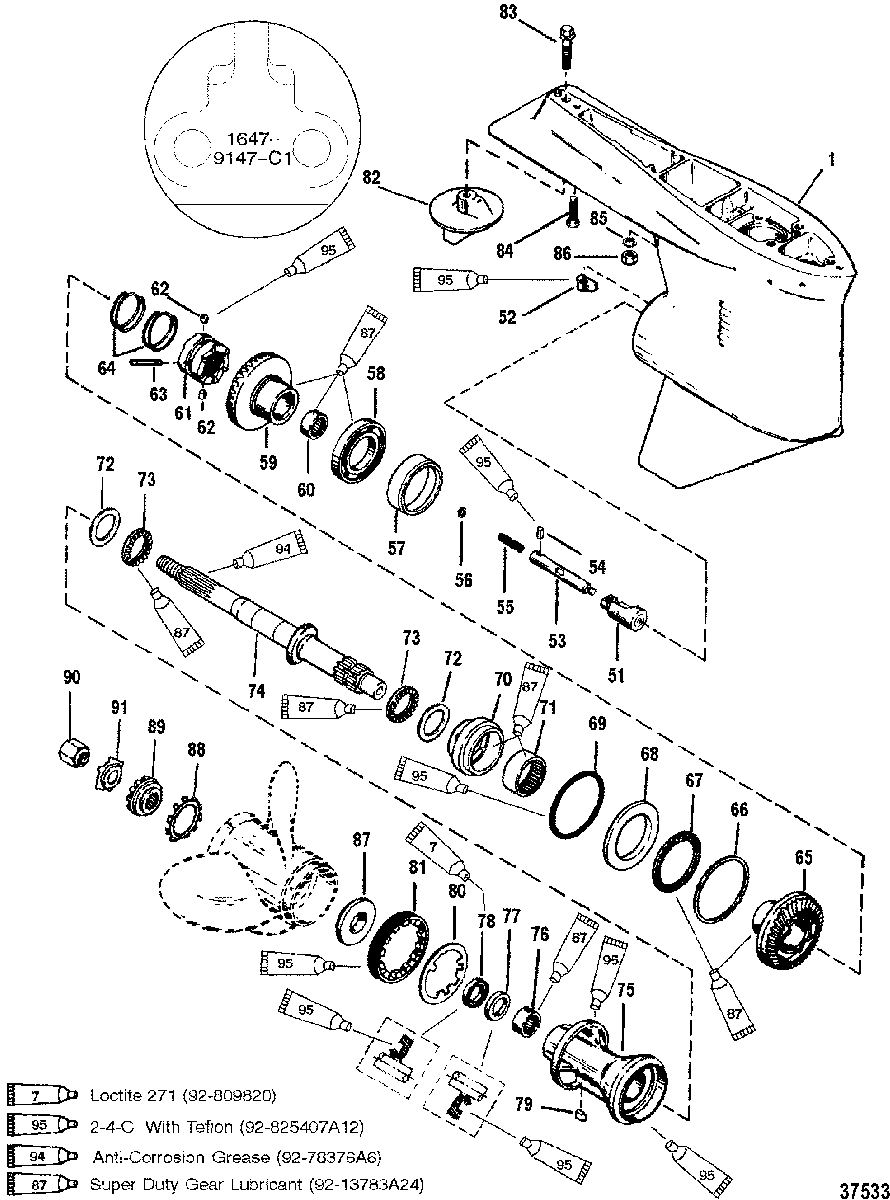

GEAR HSG(PROP SHAFT)(CNTR ROTATION) (S/N-0G437999, BELOW) для Mariner - V-150 (EFI) 0G303046 THRU 0G760299
-
№АртикулНазвание
-
11647-9148T47 GEAR HOUSING ASSEMBLY
(BASIC-BLACK)GEAR HOUSING ASSEMBLY
(BASIC-BLACK) -
11647-9148T47 GEAR HOUSING ASSEMBLY
(BASIC-GRAY)GEAR HOUSING ASSEMBLY
(BASIC-GRAY) -
6731-15841 BEARING, RollerBEARING, Roller
-
6812-17616 THRUST RINGTHRUST RING
-
6925-31534 O-RINGO-RING
-
7018447T2 ADAPTOR ASSEMBLY, BearingADAPTOR ASSEMBLY, Bearing
-
7131-15843T BEARING, RollerBEARING, Roller
-
7212-18448 THRUST WASHERTHRUST WASHER
-
7331-15842 BEARING, ThrustBEARING, Thrust
-
7444-18446 PROPELLER SHAFTPROPELLER SHAFT
-
75818896T2 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
7631-30956T BEARING, NeedleBEARING, Needle
-
7726-76868 SEAL (INSIDE)SEAL (INSIDE)
-
7826-76868 SEAL (OUTSIDE)SEAL (OUTSIDE)
-
7928-30281 KEYKEY
-
8014-183231 TAB WASHERTAB WASHER
-
818M2000347 RETAINERRETAINER
-
8231640T07 TRIM TABTRIM TAB
-
8310-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
8410-65210 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
8512-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
8611-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
8712-835467Q01 THRUST HUB
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTTHRUST HUB
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
8813-423511 LOCKWASHER, Toothed
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTLOCKWASHER, Toothed
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
8912-31211Q03 WASHER, Splined
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTWASHER, Splined
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
9011-52707Q1 PROP NUT KIT, (.750-16)
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTPROP NUT KIT, (.750-16)
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
9114-816629Q TAB WASHER
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTTAB WASHER
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-26-89238A2 SEAL KITSEAL KIT
