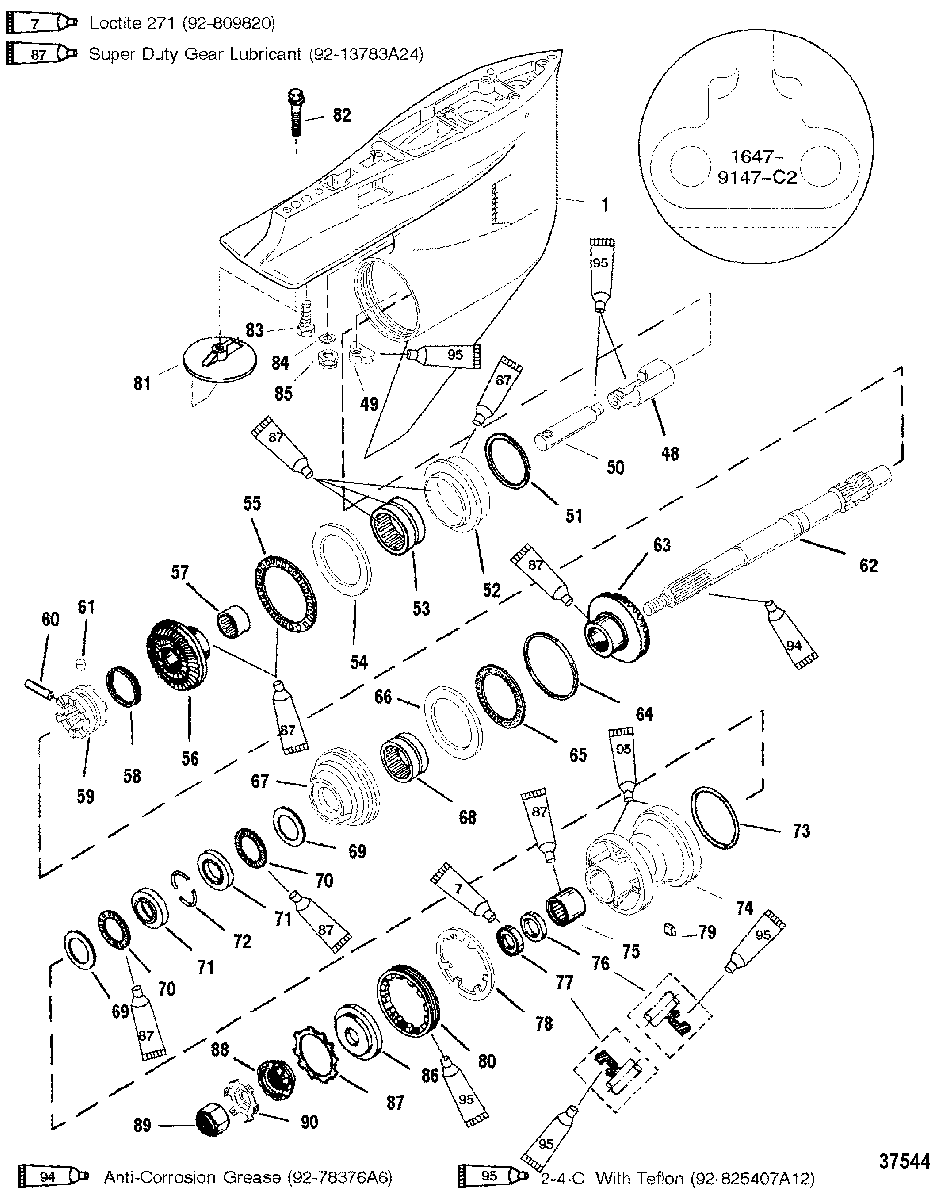

GEAR HSG(PROP SHAFT)(CNTR ROTATION) (S/N-0G438000, UP) для Mariner - V-150 (EFI) 0G303046 THRU 0G760299
-
№АртикулНазвание
-
11647-9148T93 GEAR HOUSING ASSEMBLY
(BASIC-BLACK)GEAR HOUSING ASSEMBLY
(BASIC-BLACK) -
11647-9148T93 GEAR HOUSING ASSEMBLY
(BASIC-GRAY)GEAR HOUSING ASSEMBLY
(BASIC-GRAY) -
4889594A1 FOLLOWER ASSEMBLYFOLLOWER ASSEMBLY
-
49789562 SHIFT CAMSHIFT CAM
-
50828287 RODROD
-
5115-8M0063266 SHIM SETSHIM SET
-
52828830A2 ADAPTOR ASSEMBLY, BearingADAPTOR ASSEMBLY, Bearing
-
5331-814653T BEARING ASSEMBLY, Needle RollersBEARING ASSEMBLY, Needle Rollers
-
5412-815481 THRUST WASHERTHRUST WASHER
-
5531-815480 BEARING, ThrustBEARING, Thrust
-
5643-828702A2 GEAR ASSEMBLY, Reverse - 15/28
(1.87:1)GEAR ASSEMBLY, Reverse - 15/28
(1.87:1) -
5731-15844 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
5824-30893 SPRINGSPRING
-
5952-859340T SLIDING CLUTCHSLIDING CLUTCH
-
6017-8M0100263 PIN, CrossPIN, Cross
-
6117-828356 PIN, DetentPIN, Detent
-
6244-828951 PROPELLER SHAFTPROPELLER SHAFT
-
6343-828701A1 GEAR ASSEMBLY, Forward - 15/28
(1.87:1)GEAR ASSEMBLY, Forward - 15/28
(1.87:1) -
6423-1761514 SPACER SHIM , (.206)SPACER SHIM , (.206)
-
6423-1761515 SPACER SHIM , (.208)SPACER SHIM , (.208)
-
6423-1761516 SPACER SHIM, (.210)SPACER SHIM, (.210)
-
6423-1761517 SPACER SHIM, (.212)SPACER SHIM, (.212)
-
6423-1761518 SPACER SHIM, (.214)SPACER SHIM, (.214)
-
6423-1761519 SPACER SHIM, (.216)SPACER SHIM, (.216)
-
6423-1761520 SPACER SHIM, (.218)SPACER SHIM, (.218)
-
6423-1761521 SPACER SHIM, (.220)SPACER SHIM, (.220)
-
6423-1761522 SPACER SHIM, (.222)SPACER SHIM, (.222)
-
6423-1761523 SPACER SHIM, (.224)SPACER SHIM, (.224)
-
6423-1761524 SPACER SHIM, (.226)SPACER SHIM, (.226)
-
6423-1761525 SPACER SHIM, (.228)SPACER SHIM, (.228)
-
6423-1761526 SPACER SHIM, (.230)SPACER SHIM, (.230)
