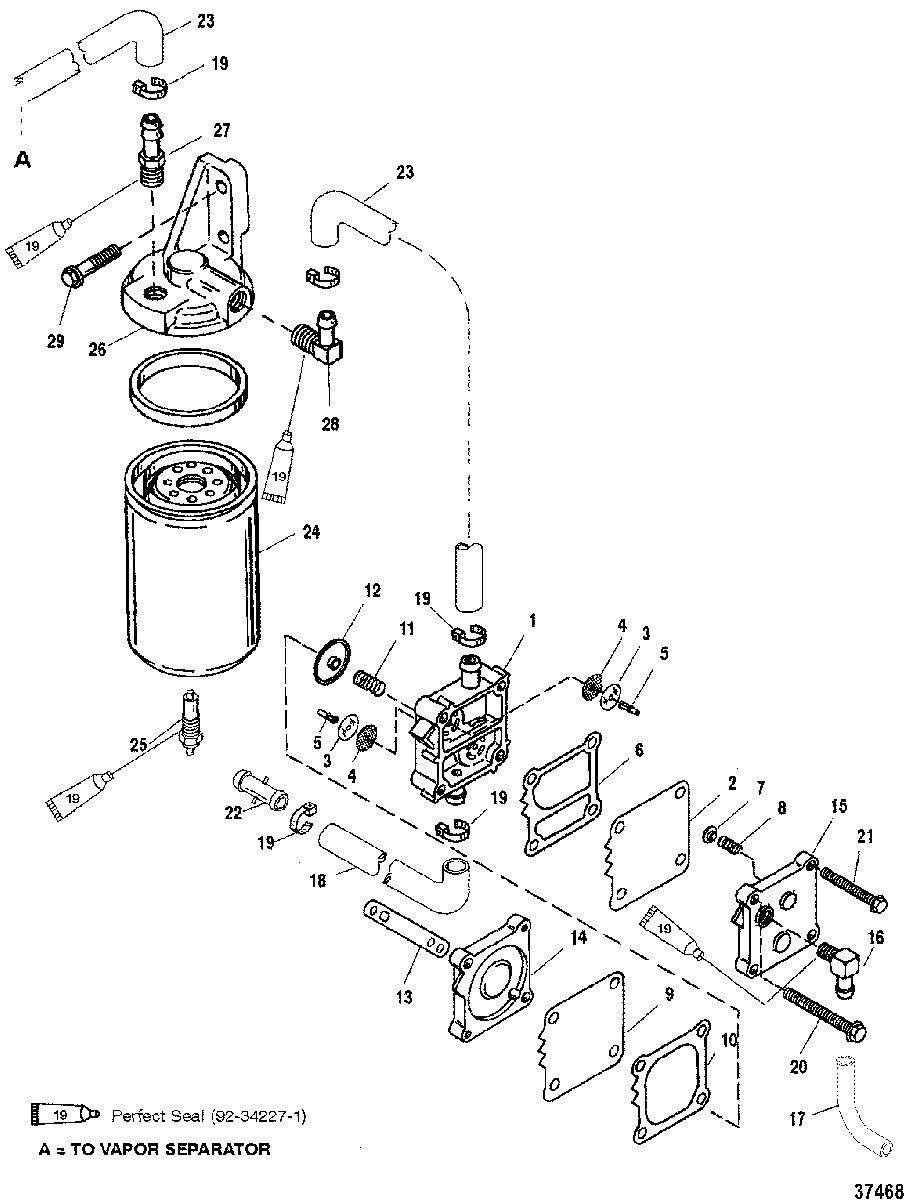

FUEL PUMP для Mariner - V-150 (EFI) 0G303046 THRU 0G760299
-
№АртикулНазвание
-
114360A78 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
221-857005A1 DIAPHAGM KITDIAPHAGM KIT
-
3NSS NOT SOLD SEPARATE, CHECK VALVE, RUBBERNOT SOLD SEPARATE, CHECK VALVE, RUBBER
-
4NSS NOT SOLD SEPARATE, CHECK VALVENOT SOLD SEPARATE, CHECK VALVE
-
5NSS NOT SOLD SEPARATE, RETAINERNOT SOLD SEPARATE, RETAINER
-
6NSS NOT SOLD SEPARATE, GASKET, BOOSTNOT SOLD SEPARATE, GASKET, BOOST
-
7NSS NOT SOLD SEPARATE, CAPNOT SOLD SEPARATE, CAP
-
8NSS NOT SOLD SEPARATE, SPRINGNOT SOLD SEPARATE, SPRING
-
9NSS NOT SOLD SEPARATE, DIAPHRAGMNOT SOLD SEPARATE, DIAPHRAGM
-
10NSS NOT SOLD SEPARATE, GASKET, PULSENOT SOLD SEPARATE, GASKET, PULSE
-
11NSS NOT SOLD SEPARATE, SPRINGNOT SOLD SEPARATE, SPRING
-
12NSS NOT SOLD SEPARATE, CAPNOT SOLD SEPARATE, CAP
-
1327-987691 GASKETGASKET
-
14144303 BASEBASE
-
15987752 PLATEPLATE
-
1622-996642 ELBOWELBOW
-
1732-8M0108349 TUBING, (28.00 Inches Bulk) (Cut to 6 IN.)TUBING, (28.00 Inches Bulk) (Cut to 6 IN.)
-
1832-8M0108349 TUBING, (28.00 Inches Bulk) (Cut to 10-1/2 IN.)TUBING, (28.00 Inches Bulk) (Cut to 10-1/2 IN.)
-
1954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2010-82130050 SCREW, (M6 x 50)SCREW, (M6 x 50)
-
2110-82104540 SCREW, (M5 x 40)SCREW, (M5 x 40)
-
2222-822769 CONNECTORCONNECTOR
-
2332-1350385 TUBING, (33.00 Inches Bulk) (15-1/2 IN.)(19 IN.)TUBING, (33.00 Inches Bulk) (15-1/2 IN.)(19 IN.)
-
2435-18458Q4 FILTER KITFILTER KIT
-
258285861 PROBEPROBE
-
2613170A3 BASEBASE
-
2722-89771Q2 CONNECTOR, (.250-18) (STRAIGHT)CONNECTOR, (.250-18) (STRAIGHT)
-
2822-136071 ELBOWELBOW
-
2910-455611 SCREW, (.250-20 x 1.12)SCREW, (.250-20 x 1.12)
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-823434R97 POWERHEAD ASSEMBLY
(150)POWERHEAD ASSEMBLY
(150) -
-812817R97 POWERHEAD ASSEMBLY
(175)POWERHEAD ASSEMBLY
(175) -
-813043R97 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
