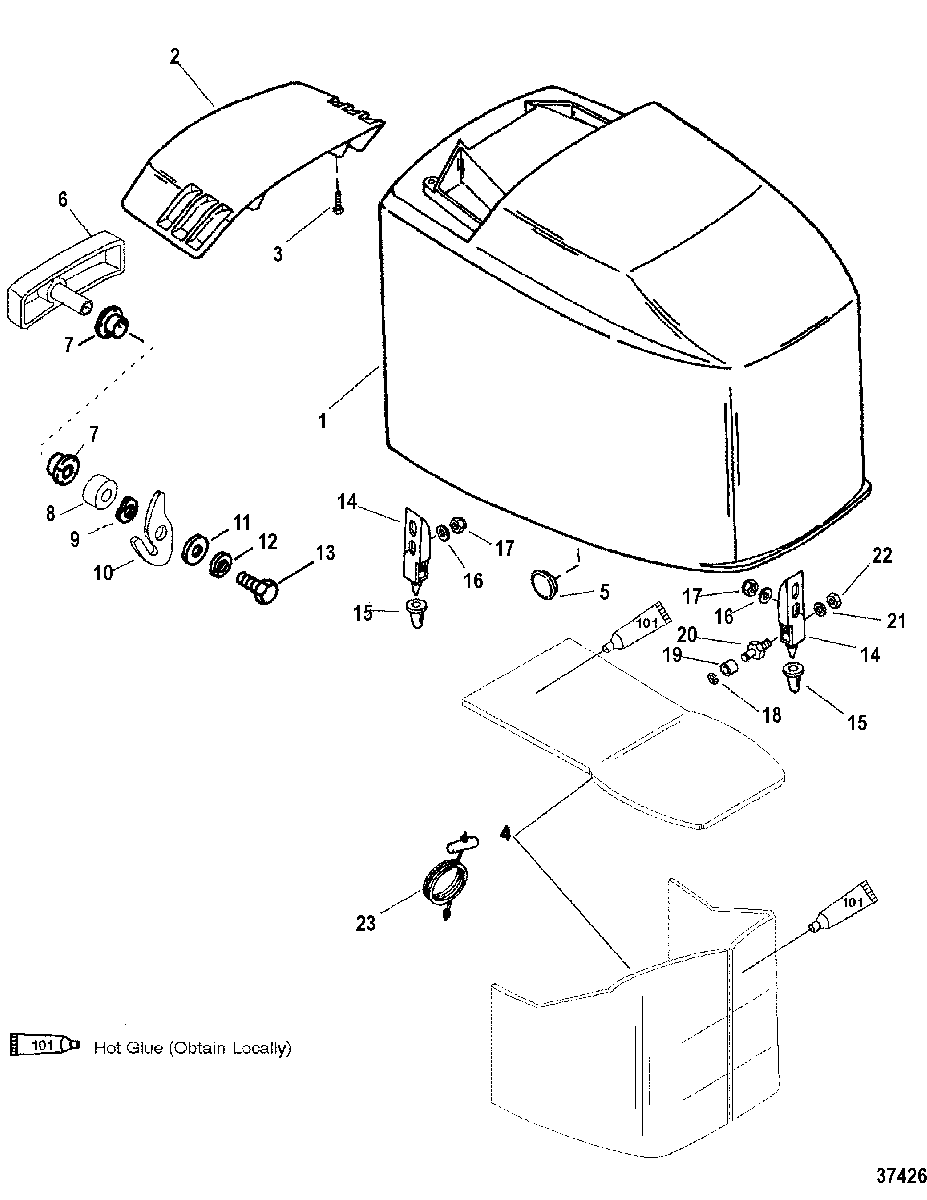

TOP COWL для Mariner - V-150 (EFI) 0G303046 THRU 0G760299
-
№АртикулНазвание
-
1100-8M0107145 TOP COWL ASSEMBLY, BlackTOP COWL ASSEMBLY, Black
-
14021-827328T8 TOP COWL ASSEMBLY, SilverTOP COWL ASSEMBLY, Silver
-
14021-827328A9 TOP COWL ASSEMBLY
(TRACKER)TOP COWL ASSEMBLY
(TRACKER) -
2821256T03 INLET, Air
(BLACK)INLET, Air
(BLACK) -
2821256T2 INLET, Air
(SILVER)INLET, Air
(SILVER) -
310-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4828344A02 SOUND BLANKET KITSOUND BLANKET KIT
-
519-823865 CAP PLUGCAP PLUG
-
6831207A16 HANDLE
(BLACK)HANDLE
(BLACK) -
6831207A16 HANDLE
(SILVER)HANDLE
(SILVER) -
723-812707 BUSHINGBUSHING
-
823-831214 SPACERSPACER
-
913-12134 WASHER, WaveWASHER, Wave
-
108M0001081 CAM, Latch ShaftCAM, Latch Shaft
-
1112-4002316 WASHERWASHER
-
1213-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1310-28635 SCREW, (.250-20 x .620) Stainless SteelSCREW, (.250-20 x .620) Stainless Steel
-
148M0036792 BRACKET, FrontBRACKET, Front
-
15815477 BUMPER, LatchBUMPER, Latch
-
1612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1711-401196 NUT, (M6)NUT, (M6)
-
1853-8237951 RING, RetainingRING, Retaining
-
19815263 ROLLERROLLER
-
208155381 PIN, RollPIN, Roll
-
2112-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2211-401196 NUT, (M6)NUT, (M6)
-
2347341A11 ROPE AND HANDLE KIT, Manual StartingROPE AND HANDLE KIT, Manual Starting
