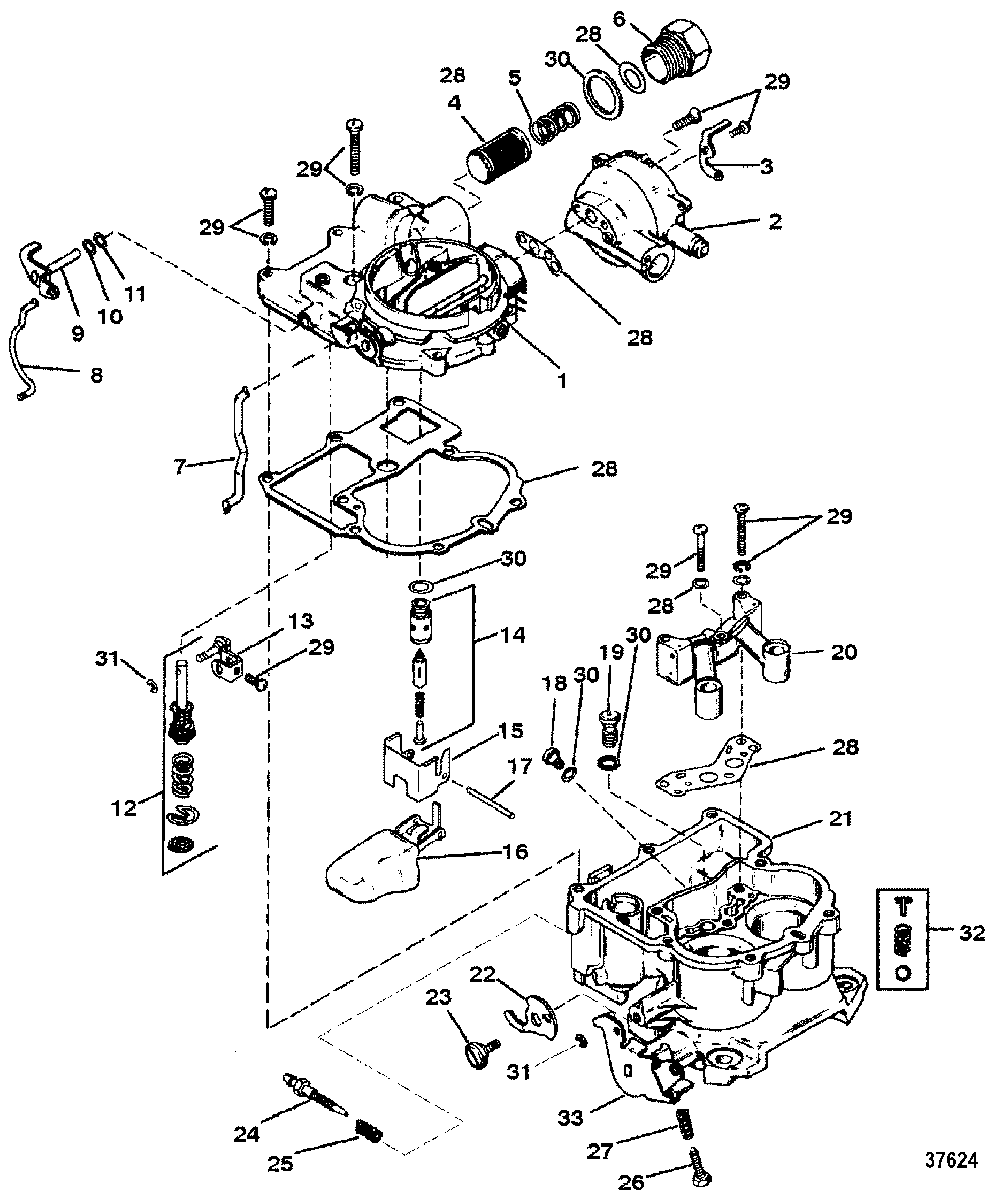

CARBURETOR(MERCARB - 2 BARREL) для Mercruiser - 200 (2 BBL.) GM 305 V-8 1987 0B525982 THRU 0B774444
-
№АртикулНазвание
-
-3310-807312A1 CARBURETOR ASSEMBLYCARBURETOR ASSEMBLY
-
1N.S.S. Not Sold Separate, AIR HORNNot Sold Separate, AIR HORN
-
2N.S.S. Not Sold Separate, CHOKE HOUSINGNot Sold Separate, CHOKE HOUSING
-
33302-9037 ARM, ChokeARM, Choke
-
435-53336Q STRAINERSTRAINER
-
53302-9032 SPRINGSPRING
-
63302-879194018 CONNECTORCONNECTOR
-
73302-9042 ROD, ChokeROD, Choke
-
83302-810920 ROD, Accelerator Pump
(MERC I.D. #9670A1)ROD, Accelerator Pump
(MERC I.D. #9670A1) -
83302-8109201 ROD, Accelerator Pump
(MERC I.D. #06082A1)ROD, Accelerator Pump
(MERC I.D. #06082A1) -
93302-823725 LEVERLEVER
-
103302-9039 WASHERWASHER
-
113302-810919 WASHERWASHER
-
123302-96551 PUMP KIT, AcceleratorPUMP KIT, Accelerator
-
133302-810916 ARMARM
-
143302-804689 SEAT KIT, InletSEAT KIT, Inlet
-
153302-803854 PLATE, BafflePLATE, Baffle
-
163302-9031 FLOATFLOAT
-
173302-90301 PIN, FloatPIN, Float
-
183302-811856 MAIN JET (1.85MM)MAIN JET (1.85MM)
-
193302-809481 POWER JET (1.00MM)POWER JET (1.00MM)
-
203302-808706 VENTURI (463)VENTURI (463)
-
21N.S.S. Not Sold Separate, CARBURETOR BODYNot Sold Separate, CARBURETOR BODY
-
223302-9048 CAMCAM
-
233302-9049 SHAFTSHAFT
-
243302-9052 SCREWSCREW
-
253302-9053 SPRINGSPRING
-
263302-9060 SCREWSCREW
-
273302-9054 SPRINGSPRING
-
283310-810929004 GASKET SETGASKET SET
-
293302-810930 SCREW KITSCREW KIT
-
303302-9044 PACKING SETPACKING SET
-
313302-808675 CLIP, SpringCLIP, Spring
-
323302-809520 CHECK BALL KITCHECK BALL KIT
