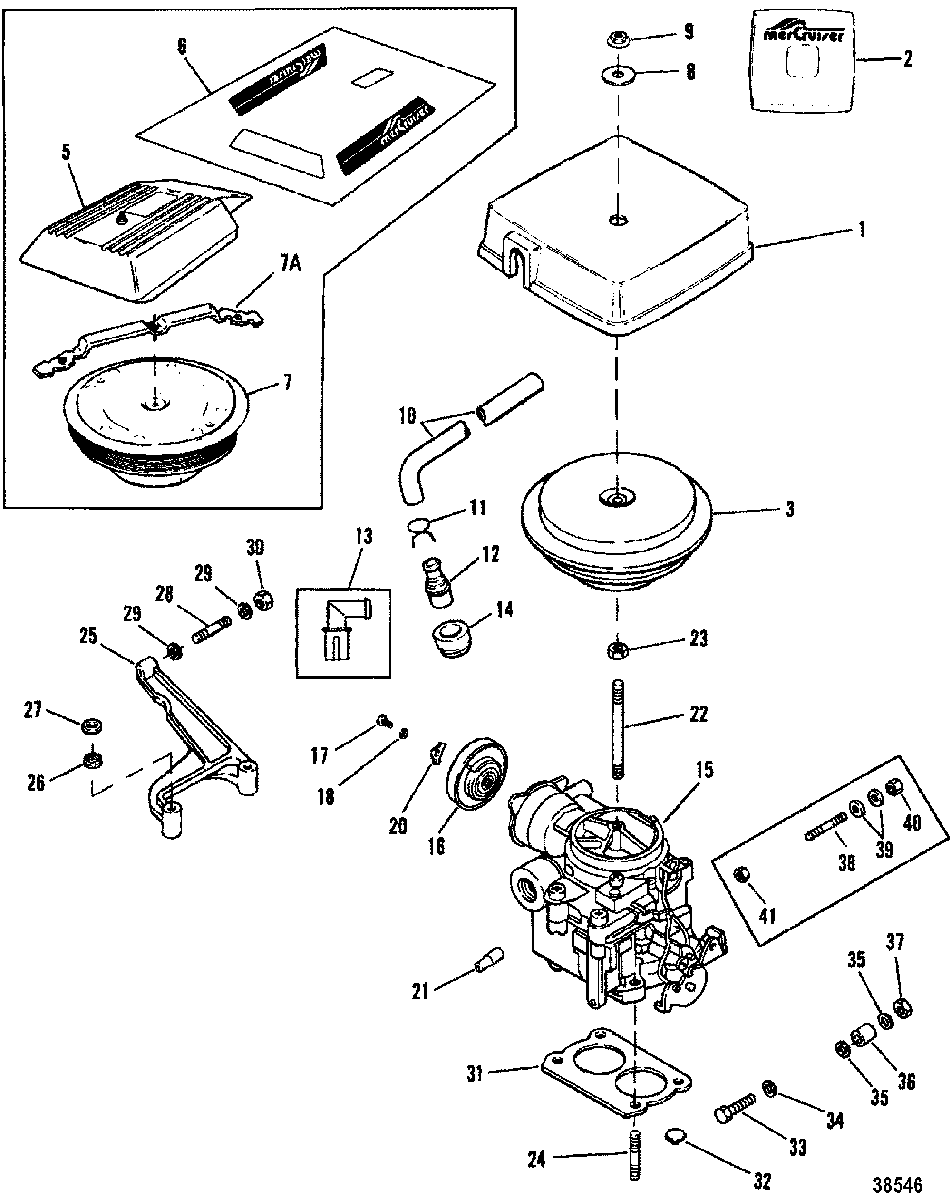

CARBURETOR/THROTTLE LINKAGE(2 BARREL) для Mercruiser - 200 (2 BBL.) GM 305 V-8 1987 0B525982 THRU 0B774444
-
№АртикулНазвание
-
115414A7 COVER
DESIGN ICOVER
DESIGN I -
237-137239 DECAL
(200 ALPHA) DESIGN IDECAL
(200 ALPHA) DESIGN I -
237-1372331 DECAL
(5.0L) DESIGN IDECAL
(5.0L) DESIGN I -
386271 FLAME ARRESTOR
DESIGN IFLAME ARRESTOR
DESIGN I -
518484A3 COVER
DESIGN IICOVER
DESIGN II -
637-812776A3 DECAL SET
(5.0L ALPHA) DESIGN IIDECAL SET
(5.0L ALPHA) DESIGN II -
637-812776A19 DECAL SET
(5.0L BRAVO) DESIGN IIDECAL SET
(5.0L BRAVO) DESIGN II -
7805016A1 FLAME ARRESTOR
DESIGN IIFLAME ARRESTOR
DESIGN II -
7A805313 RETAINER
DESIGN IIRETAINER
DESIGN II -
812-86400 WASHERWASHER
-
911-826709109 NUT, (.250-28)NUT, (.250-28)
-
1032-8M0062669 HOSE
(11-1/4 IN.)HOSE
(11-1/4 IN.) -
1032-8M0086022 HOSE, Breather
(CORRUGATED)HOSE, Breather
(CORRUGATED) -
1154-53101 CLAMPCLAMP
-
1247957 CONNECTORCONNECTOR
-
1397850T ELBOW, 90 Degree, BreatherELBOW, 90 Degree, Breather
-
1423-8M0071559 GROMMETGROMMET
-
153310-807312A1 CARBURETOR ASSEMBLY (MERCARB)CARBURETOR ASSEMBLY (MERCARB)
-
1670125A02 COVER, ChokeCOVER, Choke
-
1710-33047 SCREWSCREW
-
1813-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
2054-33036 RETAINERRETAINER
-
2122-54090 ELBOW (90 DEGREES)ELBOW (90 DEGREES)
-
2216-97012 STUD (2-3/4 IN.)STUD (2-3/4 IN.)
-
2216-8M0113181 STUD, (.250-20/.250-28 x Special) (3 IN.)STUD, (.250-20/.250-28 x Special) (3 IN.)
-
2311-8267139 NUTNUT
-
2416-70237 STUD, (.312-18/.312-24 x 2.620)STUD, (.312-18/.312-24 x 2.620)
-
2416-8M0113177 STUD, (.312 x 1.500)STUD, (.312 x 1.500)
-
25805489T BRACKETBRACKET
-
2612-20084 WASHER, (.328 x .562 x .062)WASHER, (.328 x .562 x .062)
-
2711-862902 NUT, (.9375-24)NUT, (.9375-24)
-
2816-38525 STUDSTUD
-
2912-24664 WASHER, (M4 x 20)WASHER, (M4 x 20)
-
3011-826709109 NUT, (.250-28)NUT, (.250-28)
-
3127-8079821 GASKETGASKET
-
3222-12524 PLUG, (.375)PLUG, (.375)
-
3310-37892 SCREW, (.190-32 x 1.00)
CABLE ATTACHED WITH SCREWSCREW, (.190-32 x 1.00)
CABLE ATTACHED WITH SCREW -
3412-26907 WASHER
CABLE ATTACHED WITH SCREWWASHER
CABLE ATTACHED WITH SCREW -
3512-847883 WASHER, (.192 x .375 x .033)
CABLE ATTACHED WITH SCREWWASHER, (.192 x .375 x .033)
CABLE ATTACHED WITH SCREW -
3623-57938 BUSHING
CABLE ATTACHED WITH SCREWBUSHING
CABLE ATTACHED WITH SCREW -
3711-859124 NUT, (#10-32) Stainless Steel
CABLE ATTACHED WITH SCREWNUT, (#10-32) Stainless Steel
CABLE ATTACHED WITH SCREW -
3816-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor
CABLE ATTACHED WITH STUDSTUD, (.250-28 x 2.00), Throttle Cable Anchor
CABLE ATTACHED WITH STUD -
3912-29245 WASHER, (.281 x .500 x .060) Stainless Steel
CABLE ATTACHED WITH STUDWASHER, (.281 x .500 x .060) Stainless Steel
CABLE ATTACHED WITH STUD -
4011-8267089 NUT, (.250-28)
CABLE ATTACHED WITH STUDNUT, (.250-28)
CABLE ATTACHED WITH STUD -
4111-826709109 NUT, (.250-28)
CABLE ATTACHED WITH STUDNUT, (.250-28)
CABLE ATTACHED WITH STUD
