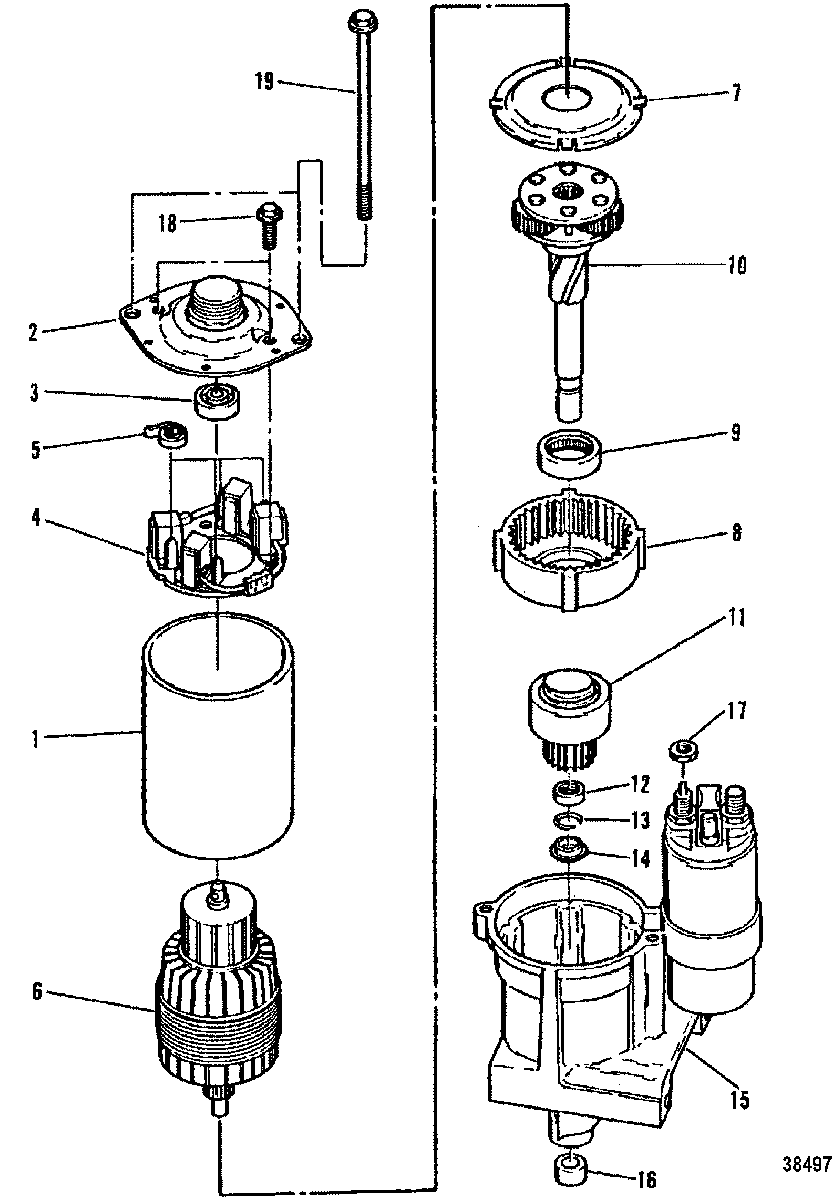

STARTER MOTOR(8 IN. - 3-1/4 IN. DIA. END CAP)(PG 200) для Mercruiser - 200 (2 BBL.) GM 305 V-8 1987 0B525982 THRU 0B774444
-
№АртикулНазвание
-
150-863007A1 STARTER MOTOR ASSEMBLY, 3-1/4 Diameter End CapSTARTER MOTOR ASSEMBLY, 3-1/4 Diameter End Cap
-
2814464 FRAMEFRAME
-
330-814465 BEARING, BallBEARING, Ball
-
4814466 HOLDER, BrushHOLDER, Brush
-
524-814467 SPRINGSPRING
-
6814469 ARMATUREARMATURE
-
7811882 SHIELDSHIELD
-
8814471 GEAR AND BEARINGGEAR AND BEARING
-
9814479 BEARING, RollerBEARING, Roller
-
1050-863007A1 SHAFT/GEAR ASSEMBLYSHAFT/GEAR ASSEMBLY
-
11811896 DRIVEDRIVE
-
1233291 COLLARCOLLAR
-
1353-33290 RING, RetainingRING, Retaining
-
1423-809457 COLLARCOLLAR
-
15814475 HOUSING, Drive
(INCLUDES STARTER SWITCH, PLUNGER, RETURN SPRING & SHIFT LEVER)HOUSING, Drive
(INCLUDES STARTER SWITCH, PLUNGER, RETURN SPRING & SHIFT LEVER) -
1623-814476 BUSHINGBUSHING
-
17N.S.S. Not Sold Separate, NUTNot Sold Separate, NUT
-
1810-814468 SCREWSCREW
-
1910-814477 THRU BOLTTHRU BOLT
