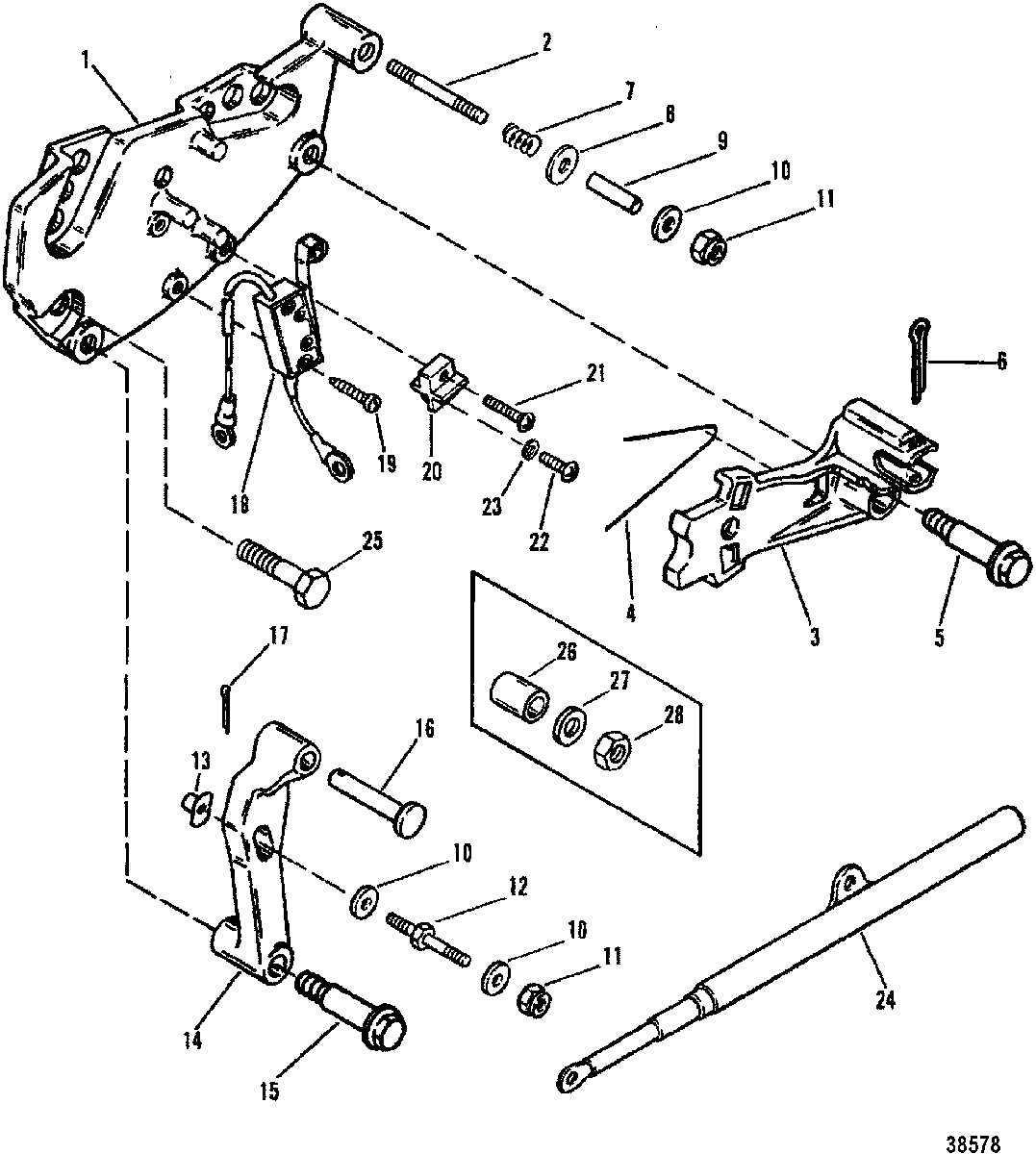

SHIFT BRACKET(ALPHA ENGINES) для Mercruiser - 200 (2 BBL.) GM 305 V-8 1987 0B525982 THRU 0B774444
-
№АртикулНазвание
-
1807962A15 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
216-865154A02 STUD, (.250-20/.250-28 x 2.120)STUD, (.250-20/.250-28 x 2.120)
-
2865149A02 STUD, (.250 x 2.870)STUD, (.250 x 2.870)
-
313051A4 LEVER ASSEMBLY, ActuatingLEVER ASSEMBLY, Actuating
-
424-862850 SPRINGSPRING
-
510-865148 SCREW, (.312-18 x 1.843), ShoulderSCREW, (.312-18 x 1.843), Shoulder
-
618-328571 COTTER PINCOTTER PIN
-
724-98880 SPRINGSPRING
-
812-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
9865149A02 SPACER (USE WHERE APPLICABLE)SPACER (USE WHERE APPLICABLE)
-
1012-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
1111-8267119 NUT, (.250-28)NUT, (.250-28)
-
1216-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable AnchorSTUD, (.250-28 x 2.00), Throttle Cable Anchor
-
1311-63341 TEE NUTTEE NUT
-
1413898T06 LEVER ASSEMBLY, ShiftLEVER ASSEMBLY, Shift
-
1510-865148 SCREW, (.312-18 x 1.843), ShoulderSCREW, (.312-18 x 1.843), Shoulder
-
1617-814001 PIN, ClevisPIN, Clevis
-
1718-210711 COTTER PINCOTTER PIN
-
1839670A28 SWITCH ASSEMBLY
(WITH RING TERMINALS)SWITCH ASSEMBLY
(WITH RING TERMINALS) -
1887-19752A6 SWITCH ASSEMBLY, Cut Out
(WITH BULLET CONNECTORS)SWITCH ASSEMBLY, Cut Out
(WITH BULLET CONNECTORS) -
1910-30902 SCREW, (#6-32 x .750)SCREW, (#6-32 x .750)
-
2086-66986 TERMINAL BLOCK
USE WHERE APPLICABLETERMINAL BLOCK
USE WHERE APPLICABLE -
2110-96113 SCREW, (#10-32 x .880) Stainless Steel
USE WHERE APPLICABLESCREW, (#10-32 x .880) Stainless Steel
USE WHERE APPLICABLE -
2210-73287 SCREW, (#10-32 x .380)
USE WHERE APPLICABLESCREW, (#10-32 x .380)
USE WHERE APPLICABLE -
2313-26996 LOCKWASHER, (#10) Stainless Steel
USE WHERE APPLICABLELOCKWASHER, (#10) Stainless Steel
USE WHERE APPLICABLE -
24813995A1 GUIDE ASSEMBLY, SpringGUIDE ASSEMBLY, Spring
-
2510-657461 SCREW AND LOCKWASHER, (.250-20 x .625)
(USE WITH CAST IRON ELBOWS)SCREW AND LOCKWASHER, (.250-20 x .625)
(USE WITH CAST IRON ELBOWS) -
2623-806981 SPACER
USE WITH STAINLESS STEEL ELBOWSSPACER
USE WITH STAINLESS STEEL ELBOWS -
2712-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
USE WITH STAINLESS STEEL ELBOWSWASHER, (.2656 x .625 x .0625) Stainless Steel
USE WITH STAINLESS STEEL ELBOWS -
2811-64015 NUT, (.250-20)
USE WITH STAINLESS STEEL ELBOWSNUT, (.250-20)
USE WITH STAINLESS STEEL ELBOWS
