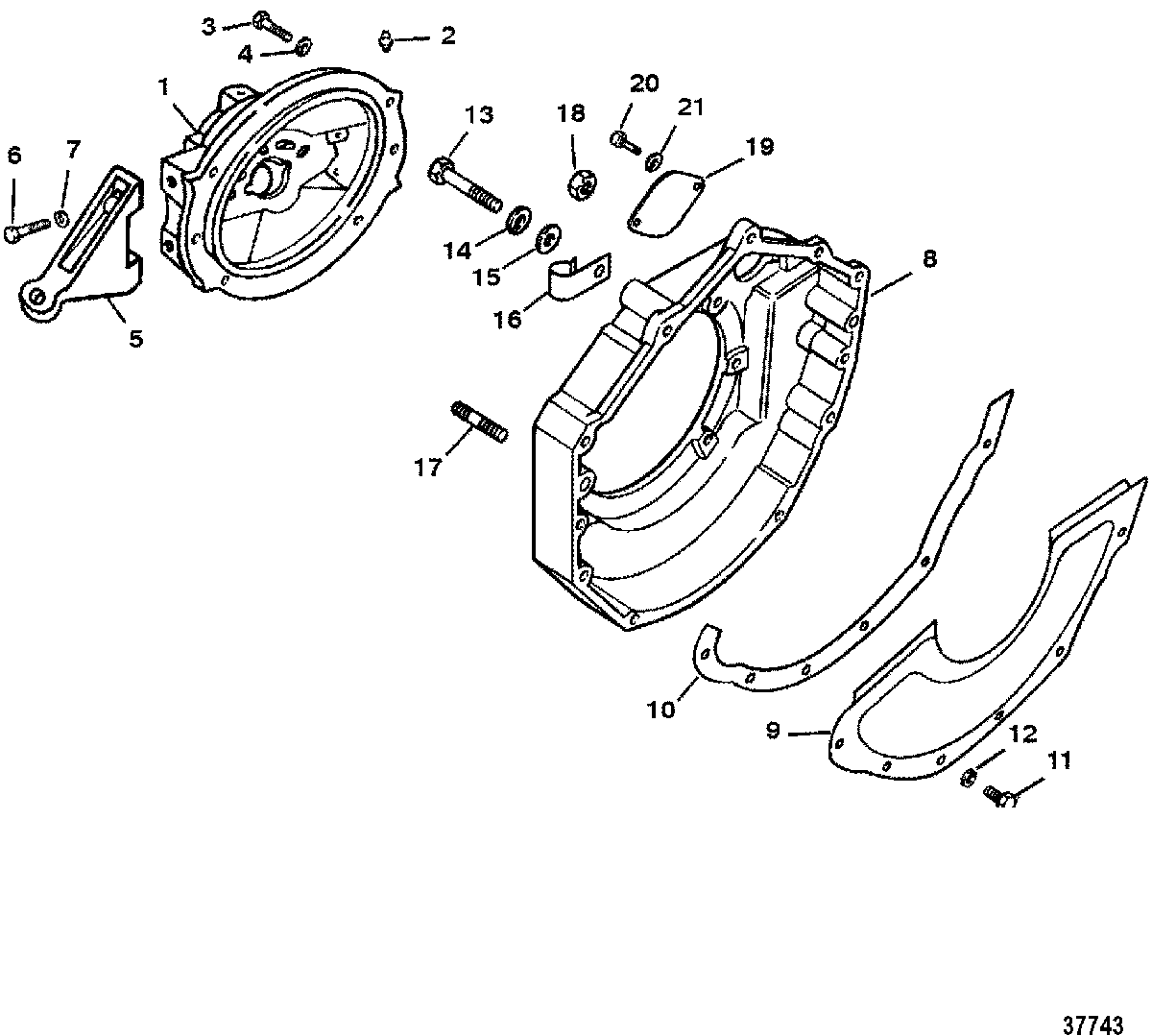

DRIVESHAFT EXTENSION COMPONENTS(JACKSHAFT MODELS) для Mercruiser - 200 (2 BBL.) GM 305 V-8 1987 0B525982 THRU 0B774444
-
№АртикулНазвание
-
193911A4 HOUSING ASSEMBLY, Shaft Extension SupportHOUSING ASSEMBLY, Shaft Extension Support
-
222-74036 FITTING, GreaseFITTING, Grease
-
310-47651 SCREW, (.437-14 x 1.50)SCREW, (.437-14 x 1.50)
-
413-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
593923A1 MOUNT ASSEMBLYMOUNT ASSEMBLY
-
610-47651 SCREW, (.437-14 x 1.50)SCREW, (.437-14 x 1.50)
-
713-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
8814309A1 HOUSING ASSEMBLYHOUSING ASSEMBLY
-
9818718A3 COVER KITCOVER KIT
-
1027-86015 GASKETGASKET
-
1110-98253 SCREW, (.250-20 x .500)SCREW, (.250-20 x .500)
-
1213-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1310-37612 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
1310-47688 SCREW, (.375-16 x 2.750)SCREW, (.375-16 x 2.750)
-
1413-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1512-20572 WASHER, (.390 x .750 x .093) (FOR SLOT)WASHER, (.390 x .750 x .093) (FOR SLOT)
-
1654-92850 CLAMPCLAMP
-
1716-861316 STUD, (.375-16 x 2.750) SpecialSTUD, (.375-16 x 2.750) Special
-
1811-32219 NUT, (.375-16)NUT, (.375-16)
-
19939201 PLATEPLATE
-
2010-92913 SCREW, (.437-14 x .750)SCREW, (.437-14 x .750)
-
2113-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
