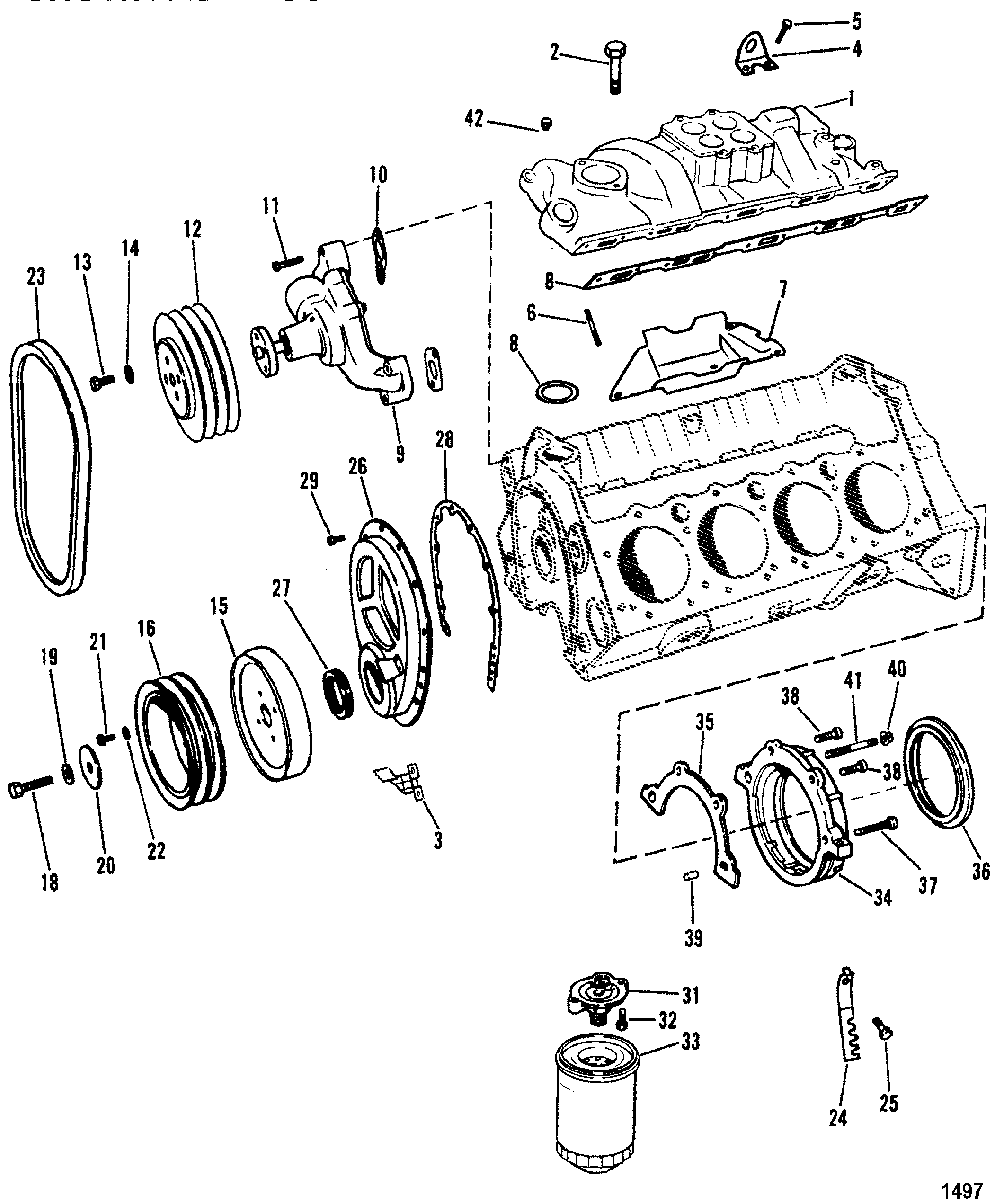

INTAKE MANIFOLD AND FRONT COVER(DESIGN I) для Mercruiser - 200 (2 BBL.) GM 305 V-8 1987 0B525982 THRU 0B774444
-
№АртикулНазвание
-
117618T MANIFOLD, Intake
(4 BARREL)MANIFOLD, Intake
(4 BARREL) -
117619 MANIFOLD, Intake
(2 BARREL)MANIFOLD, Intake
(2 BARREL) -
117620 MANIFOLD, Intake
(4 BARREL - HI-RISE)MANIFOLD, Intake
(4 BARREL - HI-RISE) -
210-806681 SCREW, (.375-16 x .875)
(3/8-16 X 7/8 IN.)SCREW, (.375-16 x .875)
(3/8-16 X 7/8 IN.) -
210-802655 BOLT, (3/8-16 x 1.25)
(3/8-16 X 1-1/4 IN.)BOLT, (3/8-16 x 1.25)
(3/8-16 X 1-1/4 IN.) -
375435A1 POINTERPOINTER
-
454-47512 LIFTING EYELIFTING EYE
-
510-34354 SCREW, (.375-16 x 1.50)SCREW, (.375-16 x 1.50)
-
6N.S.S. Not Sold Separate, STUD (GM#3959544)Not Sold Separate, STUD (GM#3959544)
-
772647 GUARDGUARD
-
827-17145 GASKET SET
(Use RTV Silicone Sealant for end gasket - See Service Manual)GASKET SET
(Use RTV Silicone Sealant for end gasket - See Service Manual) -
946-8M0113734 PUMP ASSEMBLY, WaterPUMP ASSEMBLY, Water
-
1027-34897 GASKETGASKET
-
1110-32132 SCREW, (.375-16 x 1.750)SCREW, (.375-16 x 1.750)
-
1110-47688 SCREW, (.375-16 x 2.750)SCREW, (.375-16 x 2.750)
-
1110-52200 SCREW, (1.625 In.) (1-1/2 IN.)SCREW, (1.625 In.) (1-1/2 IN.)
-
1215120T PULLEY, (5.5 In. Diameter) (3 GROOVE)PULLEY, (5.5 In. Diameter) (3 GROOVE)
-
1310-47277 SCREW, (.312-24 x .750)SCREW, (.312-24 x .750)
-
1413-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
1575420 BALANCERBALANCER
-
1633863T PULLEY (2 GROOVE)
(See Note)PULLEY (2 GROOVE)
(See Note) -
1810-72626 BOLT, (2 In.)BOLT, (2 In.)
-
1913-39131 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
2012-35332001 WASHERWASHER
-
2110-34352 SCREW, (.375-24 x .875)
(W/O POWER STEERING)SCREW, (.375-24 x .875)
(W/O POWER STEERING) -
2110-35786 SCREW, (.375-24 x 1.00)
(WITH POWER STEERING)SCREW, (.375-24 x 1.00)
(WITH POWER STEERING) -
2213-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
2357-93658Q BELT, (44 Inch) (44 IN.)BELT, (44 Inch) (44 IN.)
-
2435365 SUPPORT
USE WHERE APPLICABLESUPPORT
USE WHERE APPLICABLE -
2510-8M0040582 SCREW
USE WHERE APPLICABLESCREW
USE WHERE APPLICABLE -
268M0127828 COVERCOVER
-
2726-97335 SEAL, OilSEAL, Oil
-
2827-14250 GASKETGASKET
-
2910-8M0040582 SCREWSCREW
-
3171920 VALVE ASSEMBLY, Filter
W/O REMOTE OIL FILTERVALVE ASSEMBLY, Filter
W/O REMOTE OIL FILTER -
3210-54786 SCREW, (.312-18 x 1.250)
W/O REMOTE OIL FILTERSCREW, (.312-18 x 1.250)
W/O REMOTE OIL FILTER -
3335-866340Q03 FILTER, Oil
W/O REMOTE OIL FILTERFILTER, Oil
W/O REMOTE OIL FILTER -
3414239 RETAINER, Oil Seal (REAR)RETAINER, Oil Seal (REAR)
-
3527-881715 GASKETGASKET
-
3626-8M0077606 SEAL, Oil (REAR)SEAL, Oil (REAR)
-
3710-8M0064241 BOLT, (.250-20 x 1.750)BOLT, (.250-20 x 1.750)
-
3810-14242 BOLT, (.250-20 x .875)BOLT, (.250-20 x .875)
-
3917-14263 PIN, DowelPIN, Dowel
-
4011-11996 NUTNUT
-
4116-14827 STUD, (.250-20 x 2.180)STUD, (.250-20 x 2.180)
-
4210-49011 SET SCREW, (.312-18 x .312)SET SCREW, (.312-18 x .312)
