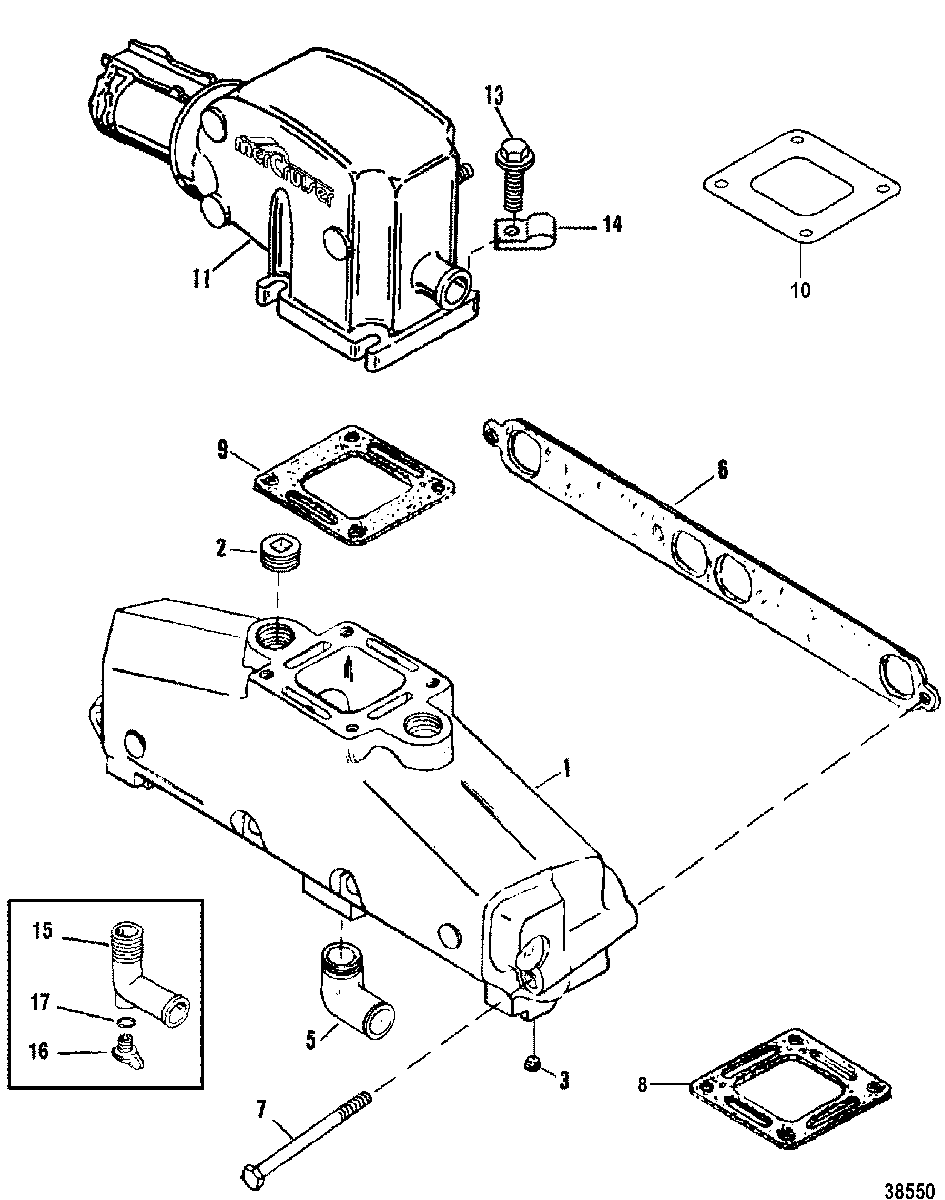

EXHAUST MANIFOLD AND EXH. ELBOW(STAINLESS STEEL EXH. ELB) для Mercruiser - 200 (2 BBL.) GM 305 V-8 1987 0B525982 THRU 0B774444
-
№АртикулНазвание
-
1860246A15 MANIFOLD ASSEMBLY, ExhaustMANIFOLD ASSEMBLY, Exhaust
-
222-416223 PLUG, (3/4-14)PLUG, (3/4-14)
-
322-36382 FITTING, (.250-18 x .62) BrassFITTING, (.250-18 x .62) Brass
-
522-36305T ELBOW, (90 Degrees)
(90 DEGREE) METALELBOW, (90 Degrees)
(90 DEGREE) METAL -
522-866725 FITTING, Straight
(STRAIGHT) METALFITTING, Straight
(STRAIGHT) METAL -
627-33395 GASKETGASKET
-
710-53728 SCREW, (.375-16 x 4.75)SCREW, (.375-16 x 4.75)
-
827-863726 GASKET (USE WITH RISER KITS)GASKET (USE WITH RISER KITS)
-
927-863724 GASKET (STANDARD COOLING)GASKET (STANDARD COOLING)
-
1027-8637251 GASKET (CLOSED COOLING)GASKET (CLOSED COOLING)
-
11816900A5 ELBOW ASSEMBLY, Exhaust
(PORT)ELBOW ASSEMBLY, Exhaust
(PORT) -
11816900A9 ELBOW ASSEMBLY
(STARBOARD)ELBOW ASSEMBLY
(STARBOARD) -
1310-865982005 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
1310-668631 SCREW, (3/8-16 x 2.50) (2-1/2 IN.)
SN# 0F114689 & BelowSCREW, (3/8-16 x 2.50) (2-1/2 IN.)
SN# 0F114689 & Below -
1310-98534 SCREW, (.375-16 x 2.30)
SN# 0F114690 & UpSCREW, (.375-16 x 2.30)
SN# 0F114690 & Up -
1310-865982005 SCREW, (.375-16 x 1.00)
(WITH REMOTE OIL FILTER)SCREW, (.375-16 x 1.00)
(WITH REMOTE OIL FILTER) -
1454-73668 J-CLIP (PORT)J-CLIP (PORT)
-
1522-862210A01 ELBOW KIT, Drain
PLASTICELBOW KIT, Drain
PLASTIC -
1622-8M0119211 PLUG KIT, (.500-13) Royal Blue
PLASTICPLUG KIT, (.500-13) Royal Blue
PLASTIC -
1725-32509 QUAD RING
PLASTICQUAD RING
PLASTIC -
-93320A14 RISER KIT, Exhaust (3.00 Inch)
EACH KIT CONTAINS 2 RISERSRISER KIT, Exhaust (3.00 Inch)
EACH KIT CONTAINS 2 RISERS -
-807477A5 RISER KIT, Exhaust (6.00 Inch)
EACH KIT CONTAINS 2 RISERSRISER KIT, Exhaust (6.00 Inch)
EACH KIT CONTAINS 2 RISERS
