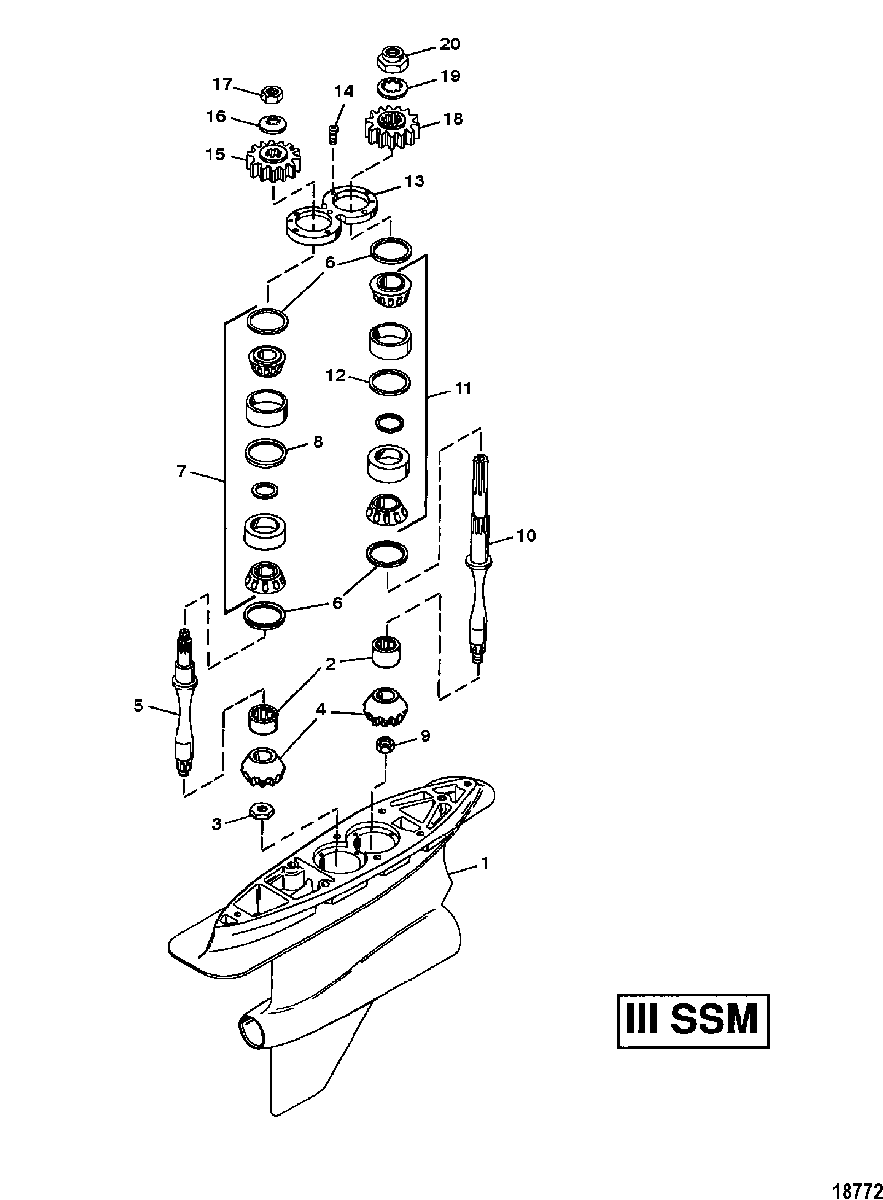

GEAR HOUSING ASSEMBLY(DRIVESHAFT) (III SSM) для Mercruiser - ALPHA ONE SS 1986-1989 ALL THRU none
-
№АртикулНазвание
-
11664-8509A1 GEAR HOUSING ASSEMBLY
(Basic)GEAR HOUSING ASSEMBLY
(Basic) -
231-49920 BEARING, Roller (1.870 OD)BEARING, Roller (1.870 OD)
-
231-68290A1 BEARING, Roller (1.930 OD)BEARING, Roller (1.930 OD)
-
311-31538 NUT (.750-16)NUT (.750-16)
-
443-16769A1 GEAR SET
(PINION AND DRIVE) (RH - 1.00:1 RATIO)GEAR SET
(PINION AND DRIVE) (RH - 1.00:1 RATIO) -
443-16768A1 GEAR SET
(PINION AND DRIVE) (LH - 1.00:1 RATIO)GEAR SET
(PINION AND DRIVE) (LH - 1.00:1 RATIO) -
443-78096A1 GEAR SET
(PINION AND DRIVE) (RH - 1.125:1 RATIO)GEAR SET
(PINION AND DRIVE) (RH - 1.125:1 RATIO) -
443-78095A1 GEAR SET
(PINION AND DRIVE) (LH - 1.125:1 RATIO)GEAR SET
(PINION AND DRIVE) (LH - 1.125:1 RATIO) -
545-95782A1 DRIVESHAFTDRIVESHAFT
-
615-39808A1 SHIM ASSEMBLYSHIM ASSEMBLY
-
731-39775T2 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
823-39816 SPACERSPACER
-
911-39831 NUT (Special)NUT (Special)
-
1045-95783 DRIVESHAFTDRIVESHAFT
-
1131-35990A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1223-39816 SPACERSPACER
-
1319326T RETAINERRETAINER
-
1410-39826 SCREW, (.313-18 x 1.00)SCREW, (.313-18 x 1.00)
-
1543-12351A1 GEAR, Spur (Driven)GEAR, Spur (Driven)
-
1612-39820 WASHERWASHER
-
1711-53062 NUT
(32 THREADS PER INCH)NUT
(32 THREADS PER INCH) -
1711-61315 NUT
(16 THREADS PER INCH)NUT
(16 THREADS PER INCH) -
1843-12351A1 GEAR, Spur (Driving)GEAR, Spur (Driving)
-
1912-56042 WASHERWASHER
-
2011-85361 NUT (1.375-16)NUT (1.375-16)
-
-1664-8509A13 REBUILD KITREBUILD KIT
