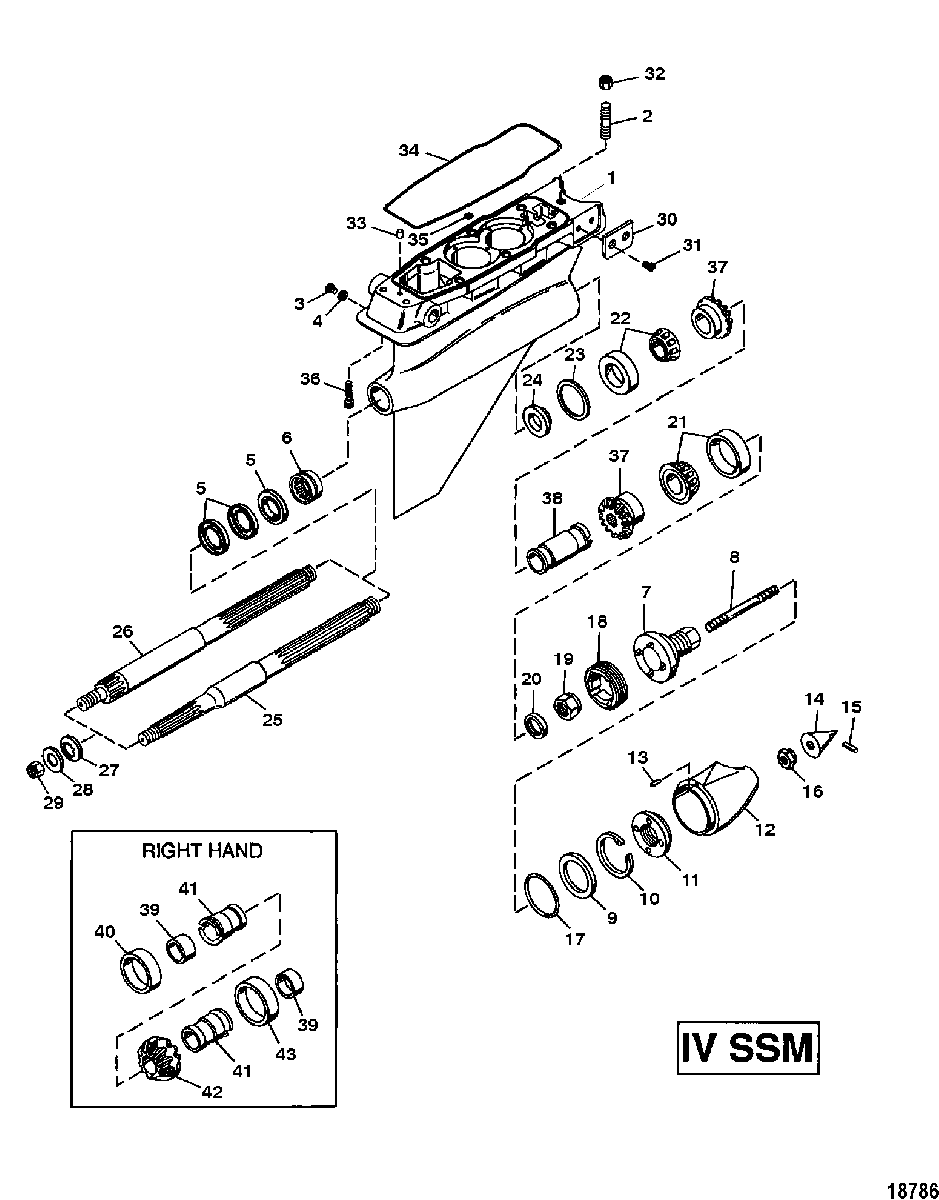

GEAR HOUSING ASSEMBLY(PROPSHAFT) (IV SSM) для Mercruiser - ALPHA ONE SS 1986-1989 ALL THRU none
-
№АртикулНазвание
-
11673-812422A4 GEAR HOUSING ASSEMBLY
(BASIC)GEAR HOUSING ASSEMBLY
(BASIC) -
216-57985 STUD (2.810)STUD (2.810)
-
310-79953Q04 SCREW, (.375-16 x .250), VentSCREW, (.375-16 x .250), Vent
-
412-191833 WASHER, FiberWASHER, Fiber
-
526-19473 SEAL, OilSEAL, Oil
-
631-39832T BEARING, RollerBEARING, Roller
-
753061 ANCHOR, StudANCHOR, Stud
-
816-530641 STUD (7.280)STUD (7.280)
-
912-39821 WASHERWASHER
-
1053-35128 RING, RetainingRING, Retaining
-
1139803 COVERCOVER
-
1211353 NOSE CONENOSE CONE
-
1317-30282 PINPIN
-
1498036 CAP, Nose ConeCAP, Nose Cone
-
1565700 PLUGPLUG
-
1611-22339 NUT, (.625-18)NUT, (.625-18)
-
1725-39828 O-RINGO-RING
-
1811-53060 NUTNUT
-
1911-39825 NUT (1.250-12)NUT (1.250-12)
-
2023-846409 WASHERWASHER
-
2131-39772T1 BEARING, RollerBEARING, Roller
-
2231-39770T1 BEARING, RollerBEARING, Roller
-
2315-39809A1 SHIM SETSHIM SET
-
2412-39818 WASHERWASHER
-
2544-85187T PROPELLER SHAFT (1.370 OD)PROPELLER SHAFT (1.370 OD)
-
2644-12049 PROPELLER SHAFT (1.750 OD)PROPELLER SHAFT (1.750 OD)
-
2712-39820 WASHERWASHER
-
2812-39817 WASHER, Special - Stainless SteelWASHER, Special - Stainless Steel
-
2911-82671127 NUT (1.00-14)NUT (1.00-14)
-
30113931 WEAR PADWEAR PAD
-
3110-11601 SCREW, (.312-18 x .750) Stainless SteelSCREW, (.312-18 x .750) Stainless Steel
-
3211-47302 NUT, (.562-18) Stainless SteelNUT, (.562-18) Stainless Steel
-
3317-43044 PIN, Dowel, LocatingPIN, Dowel, Locating
-
3425-120001 O-RINGO-RING
-
3525-36390 O-RINGO-RING
-
3610-873702 SCREW, (.500-13 x 3.00)SCREW, (.500-13 x 3.00)
-
3743-16768A1 GEAR SET (Pinion and Drive)
(LH - 1.00:1 RATIO)GEAR SET (Pinion and Drive)
(LH - 1.00:1 RATIO) -
3743-78095A1 GEAR SET (Pinion and Drive)
(LH - 1.125:1 RATIO)GEAR SET (Pinion and Drive)
(LH - 1.125:1 RATIO) -
3823-53070 SPACER
(LH GEAR SET)SPACER
(LH GEAR SET) -
3923-53067 SPACER
(RH GEAR SET)SPACER
(RH GEAR SET) -
4023-53068 SPACER
(RH GEAR SET)SPACER
(RH GEAR SET) -
4191846 SPACER
(RH GEAR SET)SPACER
(RH GEAR SET) -
4243-16769A1 GEAR SET (Pinion and Drive)
(RH - 1.00:1 RATIO)GEAR SET (Pinion and Drive)
(RH - 1.00:1 RATIO) -
4243-78096A1 GEAR SET (Pinion and Drive)
(RH - 1.125:1 RATIO)GEAR SET (Pinion and Drive)
(RH - 1.125:1 RATIO) -
4323-53066 SPACER
(RH GEAR SET)SPACER
(RH GEAR SET) -
-1664-8509A13 REBUILD KITREBUILD KIT
