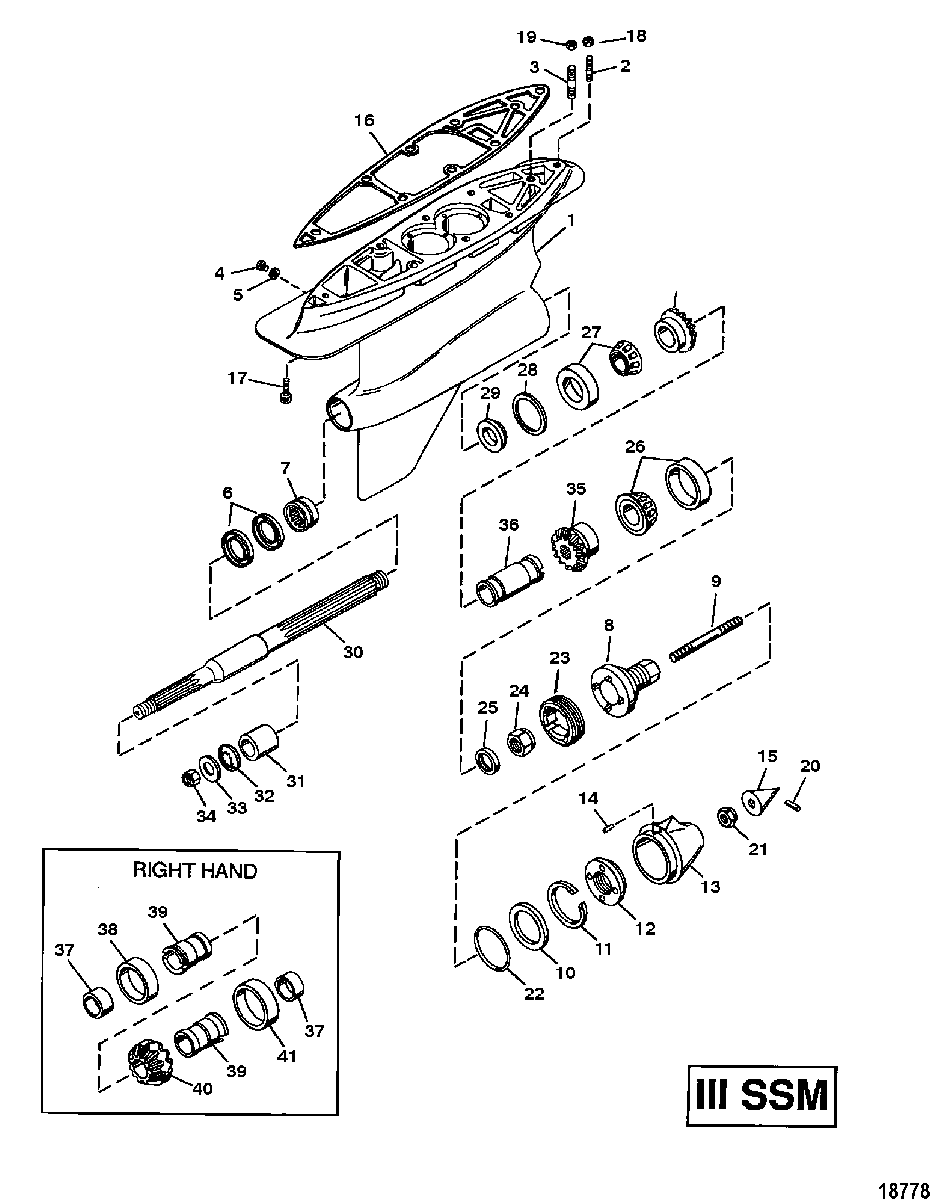

GEAR HOUSING ASSEMBLY(PROPSHAFT) (III SSM) для Mercruiser - ALPHA ONE SS 1986-1989 ALL THRU none
-
№АртикулНазвание
-
11664-8509A1 GEAR HOUSING ASSEMBLY
(Basic)GEAR HOUSING ASSEMBLY
(Basic) -
216-8M0041668 STUD, (.437-14/.437-20 x 1.875)STUD, (.437-14/.437-20 x 1.875)
-
316-57985 STUD (2.810)STUD (2.810)
-
410-79953Q04 SCREW, (.375-16 x .250)SCREW, (.375-16 x .250)
-
512-191833 WASHER, FiberWASHER, Fiber
-
626-19473 SEAL, OilSEAL, Oil
-
731-39832T BEARING, RollerBEARING, Roller
-
853061 ANCHOR, StudANCHOR, Stud
-
916-53064 STUD, Nose ConeSTUD, Nose Cone
-
1012-39821 WASHERWASHER
-
1153-35128 RING, RetainingRING, Retaining
-
1239803 COVERCOVER
-
1398023 NOSE CONENOSE CONE
-
1417-30282 PINPIN
-
1598036 CAP, Nose ConeCAP, Nose Cone
-
1627-47317 GASKETGASKET
-
1710-47557 SCREW, (.500-13 x 1.500)SCREW, (.500-13 x 1.500)
-
1811-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
1911-47302 NUT, (.562-18) Stainless SteelNUT, (.562-18) Stainless Steel
-
2065700 PLUGPLUG
-
2111-47379 NUT, (.625-18) Stainless SteelNUT, (.625-18) Stainless Steel
-
2225-39828 O-RINGO-RING
-
2311-53060 NUTNUT
-
2411-39825 NUT (1.250-12)NUT (1.250-12)
-
2523-846409 WASHERWASHER
-
2631-39772T1 BEARING, RollerBEARING, Roller
-
2731-39770T1 BEARING, RollerBEARING, Roller
-
2815-39809A1 SHIM SETSHIM SET
-
2912-39818 WASHERWASHER
-
3044-85187T PROPELLER SHAFTPROPELLER SHAFT
-
3123-87753T SPACER
(LONG PROPELLER HUB ONLY)SPACER
(LONG PROPELLER HUB ONLY) -
3212-39820 WASHERWASHER
-
3312-39817 WASHER, Special - Stainless SteelWASHER, Special - Stainless Steel
-
3411-82671127 NUT (1.00-14)NUT (1.00-14)
-
3543-16768A1 GEAR SET (Pinion and Drive)
(LH - 1.00:1)GEAR SET (Pinion and Drive)
(LH - 1.00:1) -
3543-78095A1 GEAR SET (Pinion and Drive)
(LH - 1.125:1)GEAR SET (Pinion and Drive)
(LH - 1.125:1) -
3623-53070 SPACER
(LH GEAR SET)SPACER
(LH GEAR SET) -
3723-53067 SPACER
(RH GEAR SET)SPACER
(RH GEAR SET) -
3823-53068 SPACER
(RH GEAR SET)SPACER
(RH GEAR SET) -
3991846 SPACER
(RH GEAR SET)SPACER
(RH GEAR SET) -
4043-16769A1 GEAR SET (Pinion and Drive)
(RH - 1.00:1)GEAR SET (Pinion and Drive)
(RH - 1.00:1) -
4043-78096A1 GEAR SET (Pinion and Drive)
(RH - 1.125:1)GEAR SET (Pinion and Drive)
(RH - 1.125:1) -
4123-53066 SPACER
(RH GEAR SET)SPACER
(RH GEAR SET) -
-1664-8509A13 REBUILD KITREBUILD KIT
