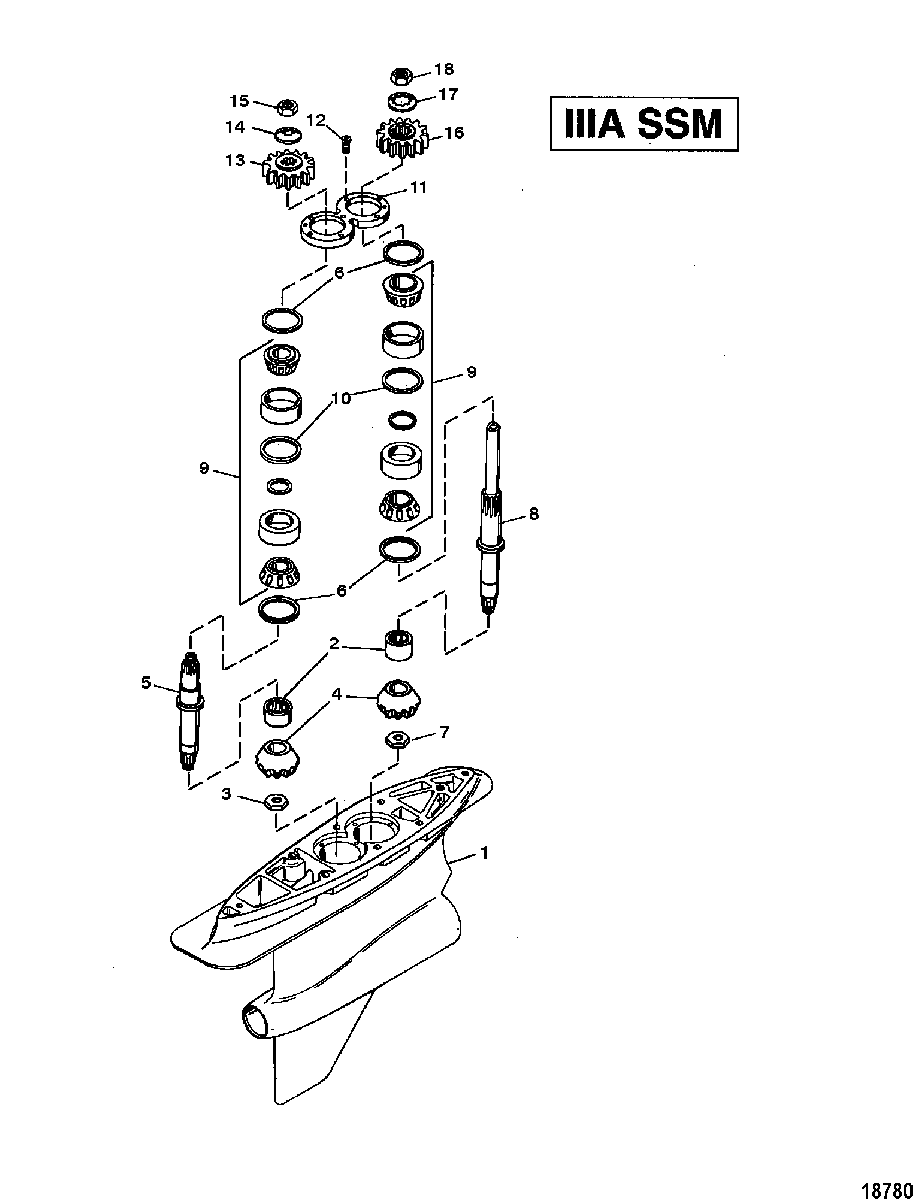

GEAR HOUSING ASSEMBLY(DRIVESHAFT) (IIIA SSM) для Mercruiser - ALPHA ONE SS 1986-1989 ALL THRU none
-
№АртикулНазвание
-
11677-817090A13 GEAR HOUSING ASSEMBLY
(BASIC)GEAR HOUSING ASSEMBLY
(BASIC) -
231-19480T BEARING, RollerBEARING, Roller
-
311-19328 NUT (Special)NUT (Special)
-
443-19329A1 GEAR SET (Pinion and Drive)
(RH - 1.00:1 RATIO)GEAR SET (Pinion and Drive)
(RH - 1.00:1 RATIO) -
443-19330A1 GEAR SET (Pinion and Drive)
(LH - 1.00:1 RATIO)GEAR SET (Pinion and Drive)
(LH - 1.00:1 RATIO) -
443-816226A1 GEAR SET (Pinion and Drive)
(RH - 1.125:1 RATIO)GEAR SET (Pinion and Drive)
(RH - 1.125:1 RATIO) -
443-816227A1 GEAR SET (Pinion and Drive)
(LH - 1.125:1 RATIO)GEAR SET (Pinion and Drive)
(LH - 1.125:1 RATIO) -
545-816265T DRIVESHAFT (Rear)DRIVESHAFT (Rear)
-
615-39808A1 SHIM ASSEMBLYSHIM ASSEMBLY
-
711-19327 NUT (Special)NUT (Special)
-
845-818552T DRIVESHAFT (Front)DRIVESHAFT (Front)
-
931-35990A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1023-39816 SPACERSPACER
-
1119326T RETAINERRETAINER
-
1210-39826 SCREW, (.313-18 x 1.00)SCREW, (.313-18 x 1.00)
-
1343-18987 GEAR, Spur (Rear)GEAR, Spur (Rear)
-
1412-19479 WASHERWASHER
-
1511-61315 NUT (Special)NUT (Special)
-
1643-18986 GEAR, Spur (Front)GEAR, Spur (Front)
-
1712-817260 WASHERWASHER
-
1811-19475 NUT (Special)NUT (Special)
-
-1677-817090T10 REBUILD KITREBUILD KIT
