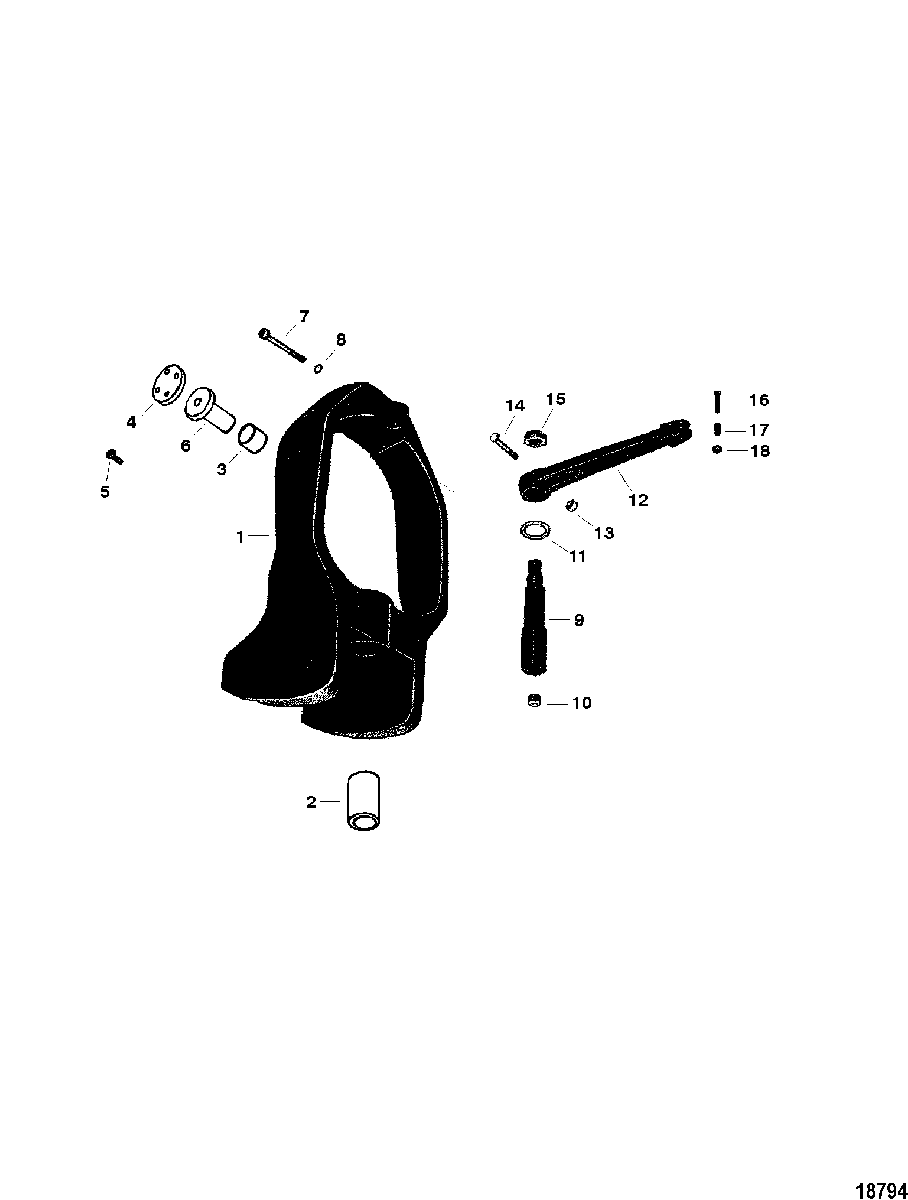

GIMBAL RING AND STEERING LEVER(IIIA-V) (2ND DESIGN) для Mercruiser - ALPHA ONE SS 1986-1989 ALL THRU none
-
№АртикулНазвание
-
1815233T3 GIMBAL RING ASSEMBLY
(IIIA & V)GIMBAL RING ASSEMBLY
(IIIA & V) -
223-814645 BUSHING, Gimbal Ring LowerBUSHING, Gimbal Ring Lower
-
323-814649 BEARING, Hinge PinBEARING, Hinge Pin
-
4814647 COVER, Hinge PinCOVER, Hinge Pin
-
510-821579 SCREW, (#10-24 x .500)SCREW, (#10-24 x .500)
-
6814648 PIN, HingePIN, Hinge
-
710-47450 SCREW, (.375-16 x 4.00)SCREW, (.375-16 x 4.00)
-
812-47538 WASHERWASHER
-
947645 SHAFT, Upper SwivelSHAFT, Upper Swivel
-
1022-47540 PLUG, Pipe - Allen Head (.375-18)PLUG, Pipe - Allen Head (.375-18)
-
1112-34858 WASHERWASHER
-
1274163A1 LEVER ASSEMBLY, SteeringLEVER ASSEMBLY, Steering
-
1311-34933 NUT (.437-20)NUT (.437-20)
-
1410-8M2021674 SCREW, (.437-20 x 2.50)SCREW, (.437-20 x 2.50)
-
1511-858869 NUT, (.875-14)NUT, (.875-14)
-
1610-24644 SCREW, (.250-28 x 1.38)SCREW, (.250-28 x 1.38)
-
1723-47643 BUSHINGBUSHING
-
1811-8267089 NUT, (.250-28)NUT, (.250-28)
