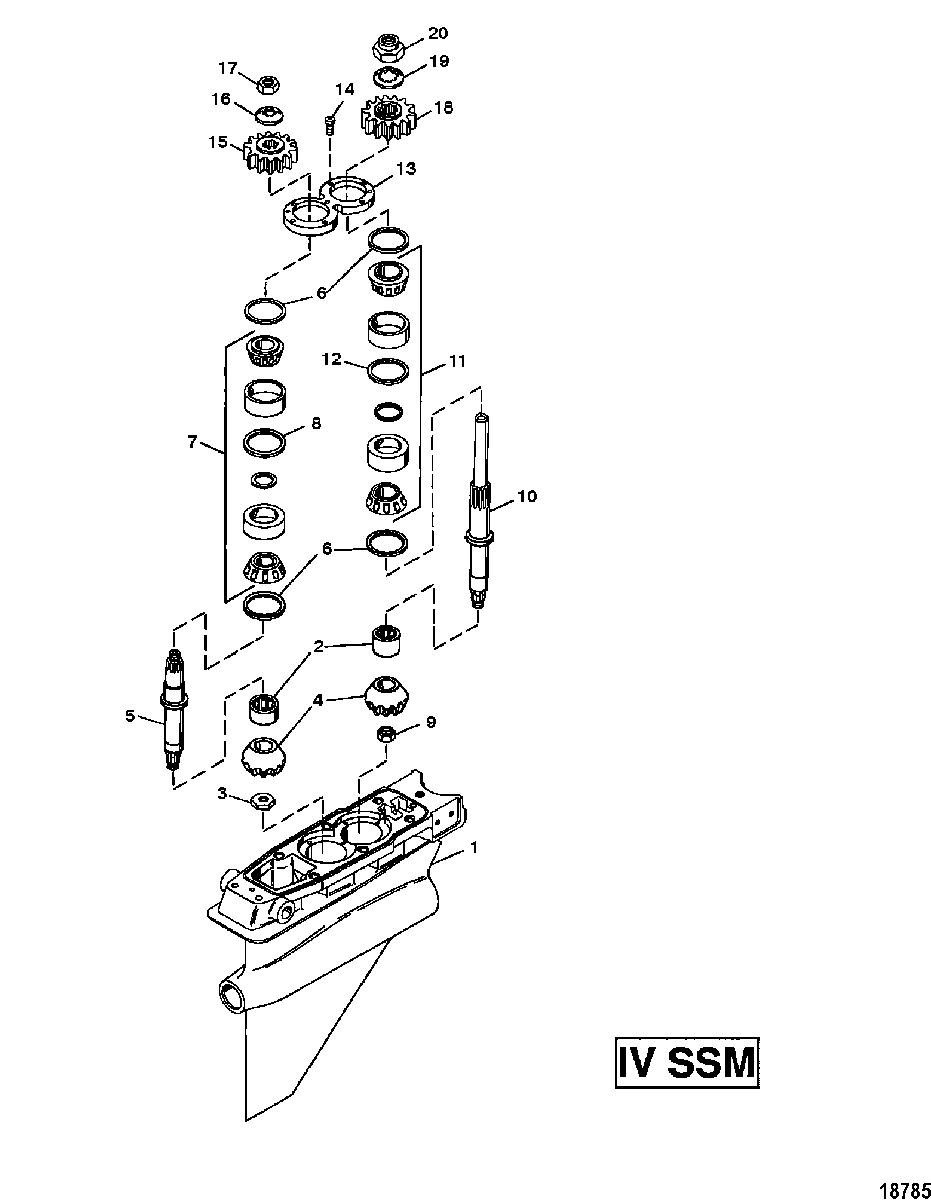

GEAR HOUSING ASSEMBLY(DRIVESHAFT) (IV SSM) для Mercruiser - ALPHA ONE SS 1986-1989 ALL THRU none
-
№АртикулНазвание
-
11673-812422A4 GEAR HOUSING ASSEMBLY
(BASIC)GEAR HOUSING ASSEMBLY
(BASIC) -
231-68290A1 BEARING, RollerBEARING, Roller
-
311-31538 NUT (.750-16)NUT (.750-16)
-
443-16769A1 GEAR SET (Pinion and Drive)
(RH - 1.00:1 RATIO)GEAR SET (Pinion and Drive)
(RH - 1.00:1 RATIO) -
443-16768A1 GEAR SET (Pinion and Drive)
(LH - 1.00:1 RATIO)GEAR SET (Pinion and Drive)
(LH - 1.00:1 RATIO) -
443-78096A1 GEAR SET (Pinion and Drive)
(RH - 1.125:1 RATIO)GEAR SET (Pinion and Drive)
(RH - 1.125:1 RATIO) -
443-78095A1 GEAR SET (Pinion and Drive)
(LH - 1.125:1 RATIO)GEAR SET (Pinion and Drive)
(LH - 1.125:1 RATIO) -
545-11380A1 DRIVESHAFT (Rear)DRIVESHAFT (Rear)
-
615-39808A1 SHIM ASSEMBLYSHIM ASSEMBLY
-
731-39775T2 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
823-39816 SPACERSPACER
-
911-39831 NUT (Special)NUT (Special)
-
1045-11352 DRIVESHAFT (Front)DRIVESHAFT (Front)
-
1131-35990A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1223-39816 SPACERSPACER
-
1319326T RETAINERRETAINER
-
1410-39826 SCREW, (.313-18 x 1.00)SCREW, (.313-18 x 1.00)
-
1543-12351A1 GEAR, Spur (Driven End)GEAR, Spur (Driven End)
-
1612-39820 WASHERWASHER
-
1711-53062 NUT
(32 THREADS PER INCH)NUT
(32 THREADS PER INCH) -
1711-61315 NUT
(16 THREADS PER INCH)NUT
(16 THREADS PER INCH) -
1843-12351A1 GEAR, Spur (Driving End)GEAR, Spur (Driving End)
-
1912-56042 WASHERWASHER
-
2011-85361 NUT (1.375-16)NUT (1.375-16)
-
-1664-8509A13 REBUILD KITREBUILD KIT
