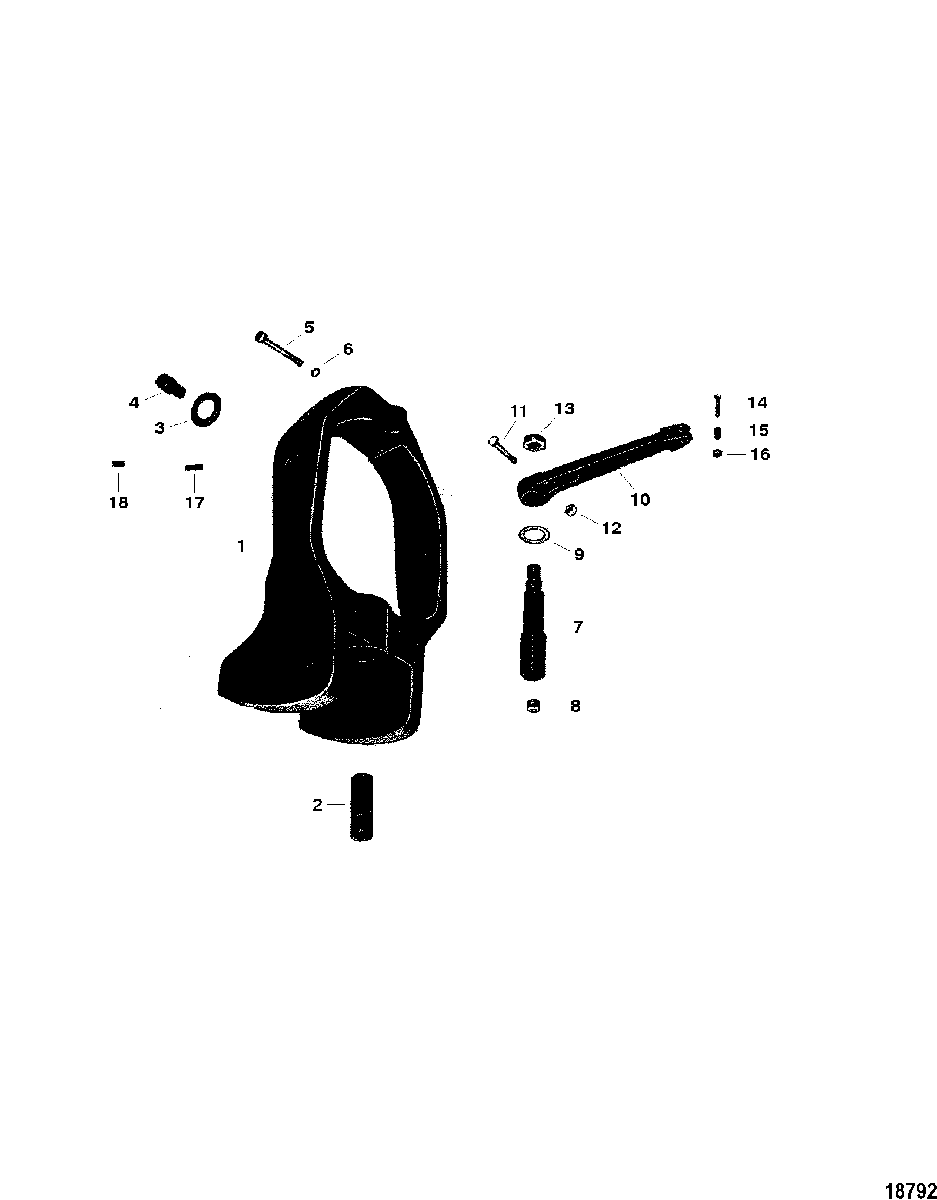

GIMBAL RING AND STEERING LEVER(III-IV-V) (1ST DESIGN) для Mercruiser - ALPHA ONE SS 1986-1989 ALL THRU none
-
№АртикулНазвание
-
169111A1 GIMBAL RING ASSEMBLY
(III & IV) (.875 DIA ANCHOR PINS)GIMBAL RING ASSEMBLY
(III & IV) (.875 DIA ANCHOR PINS) -
169111T4 GIMBAL RING ASSEMBLY
(V) (1.00 DIA ANCHOR PINS)GIMBAL RING ASSEMBLY
(V) (1.00 DIA ANCHOR PINS) -
223-814645 BUSHINGBUSHING
-
312-69109 WASHERWASHER
-
469114T PIN, HingePIN, Hinge
-
510-47450 SCREW, (.375-16 x 4.00)SCREW, (.375-16 x 4.00)
-
612-47538 WASHERWASHER
-
747645 SHAFTSHAFT
-
822-47540 PLUG, Pipe - Allen Head (.375-18)PLUG, Pipe - Allen Head (.375-18)
-
912-34858 WASHERWASHER
-
1074163A1 LEVER ASSEMBLY, SteeringLEVER ASSEMBLY, Steering
-
1110-8M2021674 SCREW, (.437-20 x 2.50)SCREW, (.437-20 x 2.50)
-
1211-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
1311-858869 NUT, (.875-14)NUT, (.875-14)
-
1410-24644 SCREW, (.250-28 x 1.38)SCREW, (.250-28 x 1.38)
-
1523-47643 BUSHINGBUSHING
-
1611-8267089 NUT, (.250-28)NUT, (.250-28)
-
1710-69110 SCREW, (.375-16 x .500), SetSCREW, (.375-16 x .500), Set
-
1817-69113 PIN, LockingPIN, Locking
