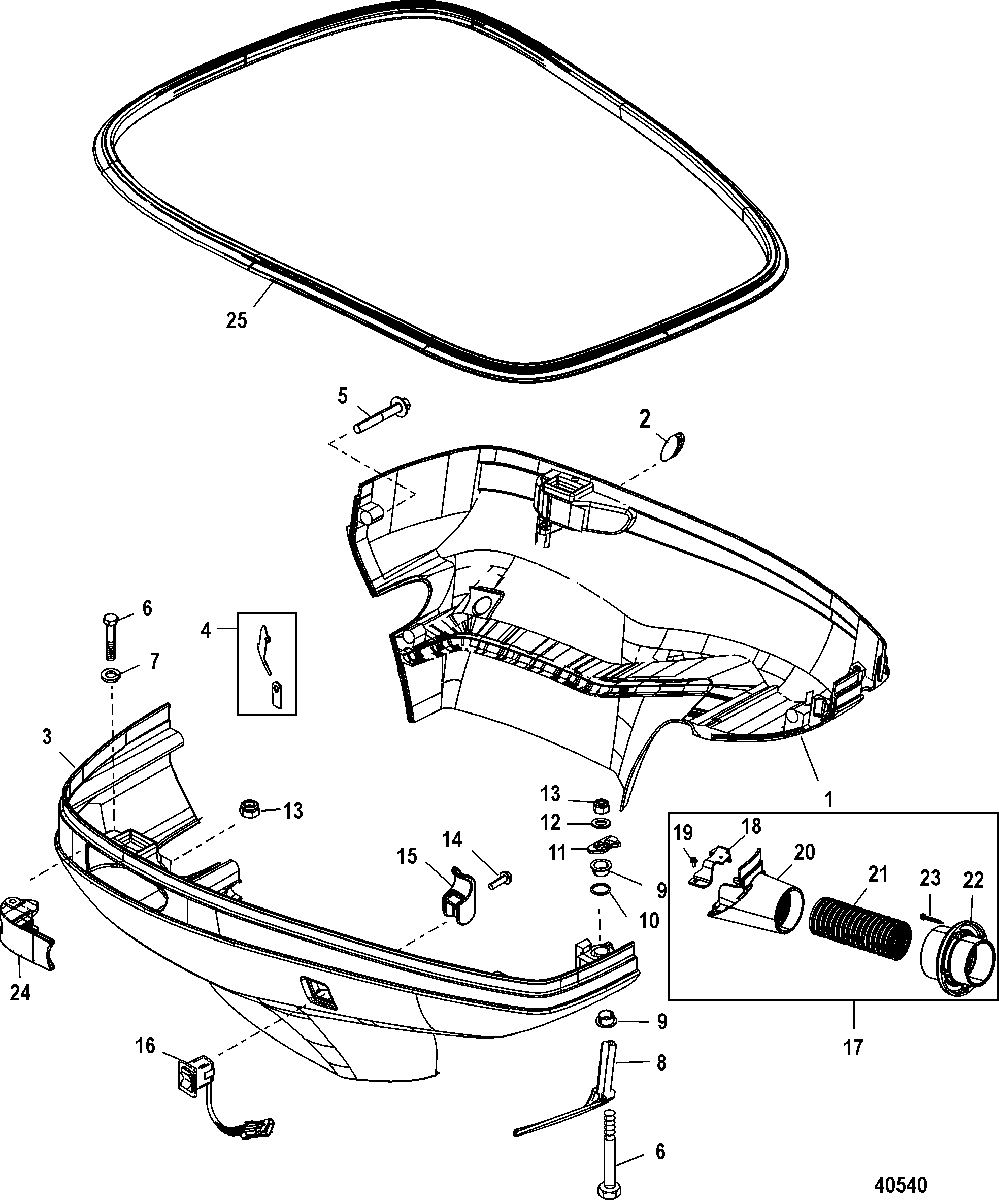

Bottom Cowl для Mercury - 225 PRO XS (3.0L DFI) 1B752547 & Up
-
№АртикулНазвание
-
1100-8M0122314 BOTTOM COWL, PortBOTTOM COWL, Port
-
2854367001 PLUGPLUG
-
3100-8M0122313 BOTTOM COWL, StarboardBOTTOM COWL, Starboard
-
427-889246A97 GASKET KITGASKET KIT
-
510-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
610-824868 SCREW, (M6 x 75)SCREW, (M6 x 75)
-
712-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
88M0053903 FRONT HANDLEFRONT HANDLE
-
923-335891 BUSHINGBUSHING
-
1025-48462 O-RING, (.614 x .070)O-RING, (.614 x .070)
-
118219423 PAWLPAWL
-
1212-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
1311-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1410-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
1554-822873 CLIPCLIP
-
1687-8M0042300 SWITCH, TrimSWITCH, Trim
-
1732-842756T01 RIGGING KITRIGGING KIT
-
18842744002 BRACKETBRACKET
-
1910-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
20843185T02 COUPLERCOUPLER
-
2132-842756005 HOSEHOSE
-
22843174002 COUPLERCOUPLER
-
2310-47994 SCREW, (#10 x 1.50)SCREW, (#10 x 1.50)
-
24852361T02 HANDLEHANDLE
-
258M0109222 SEALSEAL
-
-37-8M0135962 DECAL, Bottom Cowl
(Strip of 5) SN# 1B913348 & BelowDECAL, Bottom Cowl
(Strip of 5) SN# 1B913348 & Below -
-37-8M0135962 DECAL, Strips
SN# 1B913349 THRU 1B934307DECAL, Strips
SN# 1B913349 THRU 1B934307 -
-37-8M0072981 DECAL, Belt Line
SN# 1B934308 & UpDECAL, Belt Line
SN# 1B934308 & Up
