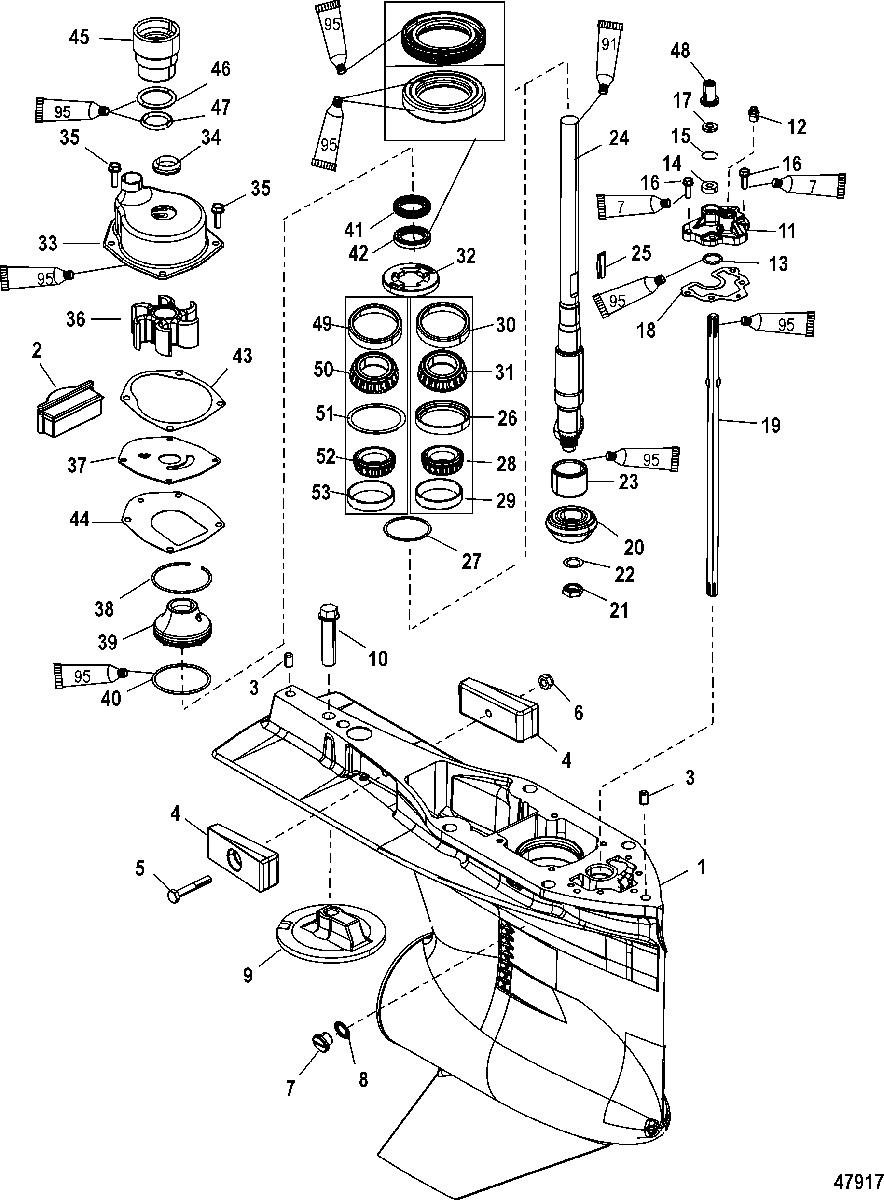

Gear Housing, Driveshaft для Mercury - 225 PRO XS (3.0L DFI) 1B752547 & Up
-
№АртикулНазвание
-
-1600-880686A43 GEAR HOUSING ASSEMBLY, Complete - Standard - LongGEAR HOUSING ASSEMBLY, Complete - Standard - Long
-
-1600-880686A44 GEAR HOUSING ASSEMBLY, Complete - Standard - X LongGEAR HOUSING ASSEMBLY, Complete - Standard - X Long
-
11600-8M0056631 GEAR HOUSING ASSEMBLY, Basic, Used with 5/16 Inch Shift CrankGEAR HOUSING ASSEMBLY, Basic, Used with 5/16 Inch Shift Crank
-
11600-8M0056631 GEAR HOUSING ASSEMBLY, Basic, Used with 1/4 Inch Shift CrankGEAR HOUSING ASSEMBLY, Basic, Used with 1/4 Inch Shift Crank
-
28M0010459 FILLER BLOCKFILLER BLOCK
-
317-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
497-826134Q ANODEANODE
-
510-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
611-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
710-79953A04 PLUG ASSEMBLY, (.375-16 x .250)PLUG ASSEMBLY, (.375-16 x .250)
-
826-830749 SEALSEAL
-
997-76214T5 ANODE KIT
MercuryANODE KIT
Mercury -
997-76214Q5 ANODE KIT
QuicksilverANODE KIT
Quicksilver -
1010-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
118M0047129 COVER ASSEMBLY
Design-ICOVER ASSEMBLY
Design-I -
118M0047129 COVER ASSEMBLY
Design-IICOVER ASSEMBLY
Design-II -
1222-881866 FITTING
Design-I and IIFITTING
Design-I and II -
1325-896522 O-RING, (799 x .103)
Design-I and IIO-RING, (799 x .103)
Design-I and II -
1426-8164641 SEAL, Oil
Design-I and IISEAL, Oil
Design-I and II -
1553-8M0046563 RETAINING RING
Design-IIRETAINING RING
Design-II -
1610-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
1712-77674 WASHERWASHER
-
1827-880729 GASKETGASKET
-
19824145 SHIFT SHAFTSHIFT SHAFT
-
20NSS NOT SOLD SEPARATE, Pinion Gear
Part of 43-892595A04NOT SOLD SEPARATE, Pinion Gear
Part of 43-892595A04 -
2111-35921 NUT, (.625-18)NUT, (.625-18)
-
2212-92721 WASHERWASHER
-
2331-42647A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
2445-895079T DRIVESHAFT, LongDRIVESHAFT, Long
-
2445-895080T DRIVESHAFT, X-LongDRIVESHAFT, X-Long
-
2528-8M0032833 KEY, Also a Component of Water Pump HousingKEY, Also a Component of Water Pump Housing
-
2615-884327A02 SHIM/BEARING ASSEMBLY
SN# 1B792549 & BelowSHIM/BEARING ASSEMBLY
SN# 1B792549 & Below -
2715-8M0063268 SHIM ASSEMBLYSHIM ASSEMBLY
-
28NSS NOT SOLD SEPARATE, Roller Bearing Assembly
SN# 1B792549 & BelowNOT SOLD SEPARATE, Roller Bearing Assembly
SN# 1B792549 & Below -
29NSS NOT SOLD SEPARATE, Cup
SN# 1B792549 & BelowNOT SOLD SEPARATE, Cup
SN# 1B792549 & Below -
30NSS NOT SOLD SEPARATE, Roller Bearing Assembly
SN# 1B792549 & BelowNOT SOLD SEPARATE, Roller Bearing Assembly
SN# 1B792549 & Below -
31NSS NOT SOLD SEPARATE, Cup
SN# 1B792549 & BelowNOT SOLD SEPARATE, Cup
SN# 1B792549 & Below -
328245191 RETAINERRETAINER
-
33817275A09 HOUSING, Water Pump-CompleteHOUSING, Water Pump-Complete
-
3426-861415A1 SEAL KITSEAL KIT
-
3510-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
3647-43026T2 IMPELLERIMPELLER
-
378172761 FACEPLATEFACEPLATE
-
3853-880719 RING, RetainingRING, Retaining
-
398M0007131 CARRIER ASSEMBLY, Oil SealCARRIER ASSEMBLY, Oil Seal
-
4025-896523 O-RING, (2.175 x .103)O-RING, (2.175 x .103)
-
41NSS NOT SOLD SEPARATE, Oil SealNOT SOLD SEPARATE, Oil Seal
-
42NSS NOT SOLD SEPARATE, Oil SealNOT SOLD SEPARATE, Oil Seal
-
4327-8172771 GASKETGASKET
-
4427-8M0112903 GASKETGASKET
-
45832942A1 COUPLING ASSEMBLYCOUPLING ASSEMBLY
-
4625-35027 O-RING, (1.046)O-RING, (1.046)
-
4725-21836 O-RING, (.796 x .139)O-RING, (.796 x .139)
-
4843585 COUPLINGCOUPLING
-
4931-36387A1 BEARING ASSEMBLY, Roller/Cup
SN# 1B792550 & UpBEARING ASSEMBLY, Roller/Cup
SN# 1B792550 & Up -
50NSS NOT SOLD SEPARATE, CUP
SN# 1B792550 & UpNOT SOLD SEPARATE, CUP
SN# 1B792550 & Up -
5115-8M0063267 SHIM SET
SN# 1B792550 & UpSHIM SET
SN# 1B792550 & Up -
5231-48939A2 BEARING, Tapered Roller
SN# 1B792550 & UpBEARING, Tapered Roller
SN# 1B792550 & Up -
53NSS NOT SOLD SEPARATE, CUP
SN# 1B792550 & UpNOT SOLD SEPARATE, CUP
SN# 1B792550 & Up -
-26-830749A01 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-817275A08 REPAIR KIT, Water Pump-UpperREPAIR KIT, Water Pump-Upper
