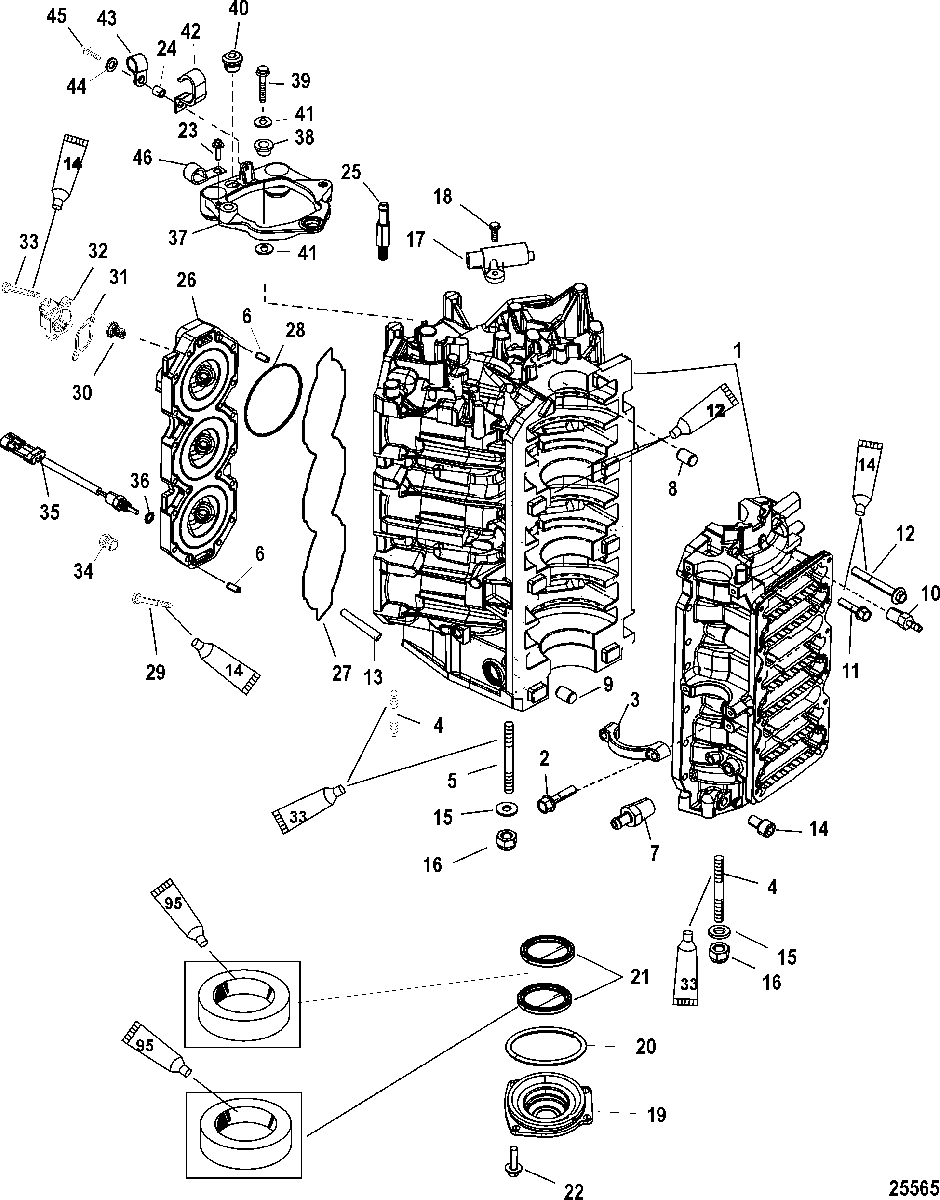

Cylinder Block and End Cap для Mercury - 225 PRO XS (3.0L DFI) 1B752547 & Up
-
№АртикулНазвание
-
1885-899162A06 CYLINDER BLOCK ASSEMBLY
225CYLINDER BLOCK ASSEMBLY
225 -
1885-9811T72 CYLINDER BLOCK ASSEMBLY
250CYLINDER BLOCK ASSEMBLY
250 -
210-81893440 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
38M0111325 BRACKETBRACKET
-
416-903509 STUD, (M10 x 1.5 x 64)STUD, (M10 x 1.5 x 64)
-
516-8154431 STUD, (M10 x 1.5 x 155)STUD, (M10 x 1.5 x 155)
-
617-63779 PIN, Dowel (.250 x .625)PIN, Dowel (.250 x .625)
-
721-8781051 CHECK VALVECHECK VALVE
-
817-8M0036405 PINPIN
-
917-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
1022-8245021 CONNECTORCONNECTOR
-
1110-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1210-82446180 SCREW, (M10 x 80)SCREW, (M10 x 80)
-
138248577 DEFLECTORDEFLECTOR
-
1410-82494810 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
1512-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
1611-4013610 NUT, (M10) Stainless SteelNUT, (M10) Stainless Steel
-
178M0082988 SENSORSENSOR
-
1810-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
191171-9787A4 END CAP ASSEMBLYEND CAP ASSEMBLY
-
2025-62700 O-RING, (3.237 x .103)O-RING, (3.237 x .103)
-
2126-8308981 SEALSEAL
-
2210-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
2310-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
2423-421581 BUSHINGBUSHING
-
258215832 PIN, Special (1.5 Inches)PIN, Special (1.5 Inches)
-
26900-841021A06 CYLINDER HEAD ASSEMBLY, Starboard
225CYLINDER HEAD ASSEMBLY, Starboard
225 -
26900-841020A06 CYLINDER HEAD ASSEMBLY, Port
225CYLINDER HEAD ASSEMBLY, Port
225 -
26900-841021A08 CYLINDER HEAD ASSEMBLY, Starboard
250CYLINDER HEAD ASSEMBLY, Starboard
250 -
26900-841020A08 CYLINDER HEAD ASSEMBLY, Port
250CYLINDER HEAD ASSEMBLY, Port
250 -
27818574 SEALSEAL
-
28884391 SEALSEAL
-
2910-8M0045380 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
308M0057307 THERMOSTAT, 54 Degree C/130 Degree FTHERMOSTAT, 54 Degree C/130 Degree F
-
3127-8503181 GASKETGASKET
-
32887601002 COVER, PortCOVER, Port
-
32887602002 COVER, StarboardCOVER, Starboard
-
3310-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3422-328022 PLUG, Pipe (.125-27) BrassPLUG, Pipe (.125-27) Brass
-
35885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
3625-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
37857186T02 PLATE ASSEMBLYPLATE ASSEMBLY
-
3823-855729 MOUNTMOUNT
-
3910-82130145 SCREW, (M10 x 45)SCREW, (M10 x 45)
-
4025-19565002 GROMMETGROMMET
-
4112-855725 WASHERWASHER
-
4254-65292 J CLIPJ CLIP
-
4354-858424 CLAMPCLAMP
-
4412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
4510-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4654-858951 J CLIPJ CLIP
-
-61-843034A07 POWERHEAD ASSEMBLY
225POWERHEAD ASSEMBLY
225 -
-61-841017A52 POWERHEAD ASSEMBLY
250POWERHEAD ASSEMBLY
250 -
-27-841220A03 GASKET SET, PowerheadGASKET SET, Powerhead
