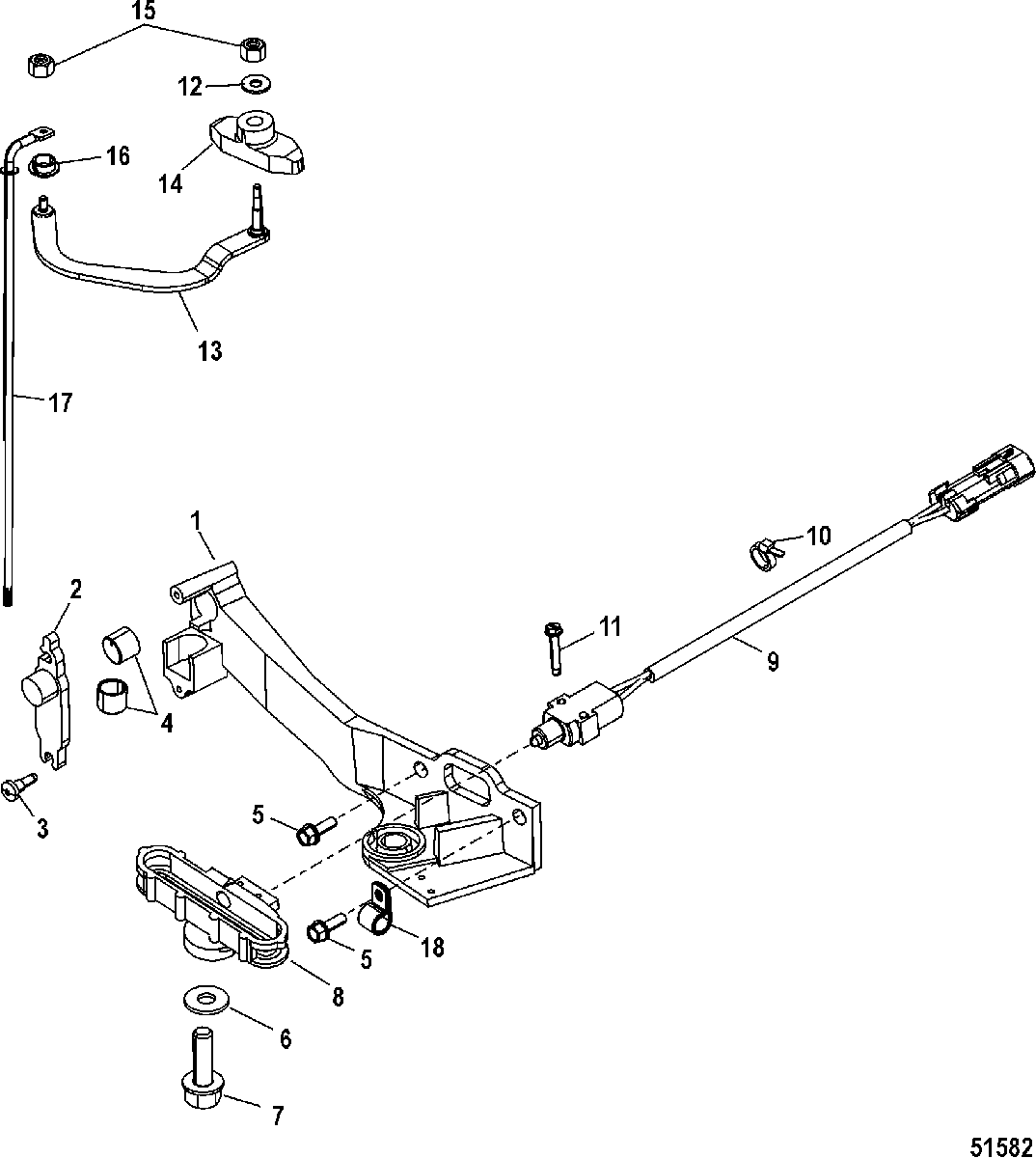

Shift Linkage, SN# 1B97343 and below для Mercury - 225 PRO XS (3.0L DFI) 1B752547 & Up
-
№АртикулНазвание
-
1824010T05 BRACKET, AnchorBRACKET, Anchor
-
2824016 LATCHLATCH
-
310-42975 DRIVE SCREWDRIVE SCREW
-
4824015 CUP, Barrel RetainerCUP, Barrel Retainer
-
510-82155025 SCREW, (M8 x 25 MM) Stainless SteelSCREW, (M8 x 25 MM) Stainless Steel
-
612-43430 WASHERWASHER
-
710-82155025 SCREW, (M8 x 25 MM) Stainless SteelSCREW, (M8 x 25 MM) Stainless Steel
-
88M0039052 BRACKET, SlideBRACKET, Slide
-
987-8M0052939 SWITCHSWITCH
-
1054-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1110-82470620 SCREW, (M3.5 x 20)SCREW, (M3.5 x 20)
-
1212-35459 WASHERWASHER
-
13883142A03 SHIFT LINK KITSHIFT LINK KIT
-
148539683 SLIDESLIDE
-
1511-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1623-42994 BUSHINGBUSHING
-
178M0036408 SHIFT SHAFT, Upper
(Long)SHIFT SHAFT, Upper
(Long) -
178M0046246 SHIFT SHAFT, Upper
(X-Long)SHIFT SHAFT, Upper
(X-Long) -
1854-475451 CLIPCLIP
