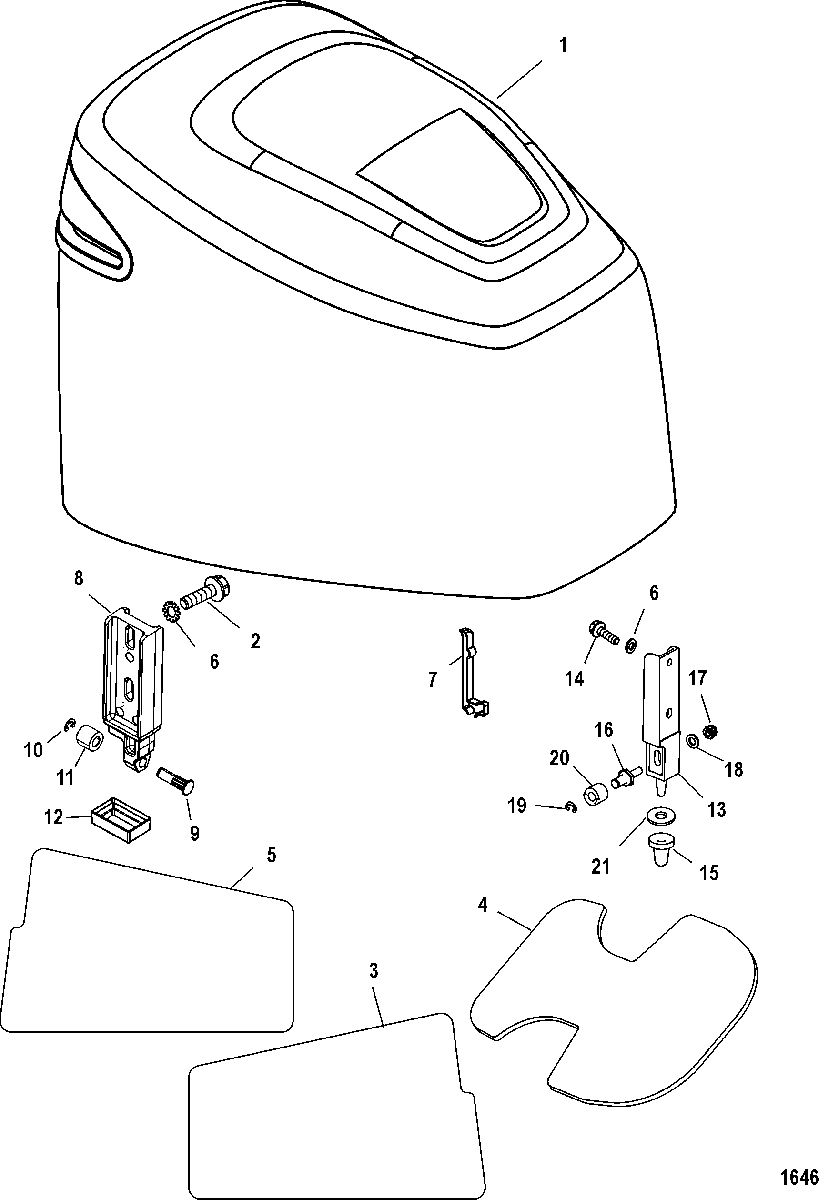

Top Cowl для Mercury - 225 PRO XS (3.0L DFI) 1B752547 & Up
-
№АртикулНазвание
-
1100-8M0075372 TOP COWL ASSEMBLY, (Black) (Includes all Decals except HP and Strips)
SN# 1B934307 & BelowTOP COWL ASSEMBLY, (Black) (Includes all Decals except HP and Strips)
SN# 1B934307 & Below -
1100-8M0083585 TOP COWL ASSEMBLY, (Black) (Includes all Decals except HP and Belt Line)
SN# 1B934308 & UpTOP COWL ASSEMBLY, (Black) (Includes all Decals except HP and Belt Line)
SN# 1B934308 & Up -
210-82130030 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
3884041A04 SOUND BLANKET KITSOUND BLANKET KIT
-
4NSS NOT SOLD SEPARATE, Sound Blanket-TopNOT SOLD SEPARATE, Sound Blanket-Top
-
5NSS NOT SOLD SEPARATE, Sound Blanket-PortNOT SOLD SEPARATE, Sound Blanket-Port
-
613-93702 WASHER, (.250 External Star)WASHER, (.250 External Star)
-
7826639T COVERCOVER
-
88M0010389 BRACKET ASSEMBLY, CowlBRACKET ASSEMBLY, Cowl
-
9NSS NOT SOLD SEPARATE, PinNOT SOLD SEPARATE, Pin
-
1053-8237951 RING, RetainingRING, Retaining
-
11815263 ROLLERROLLER
-
1225-850685T02 GROMMETGROMMET
-
138M0036792 BRACKET, FrontBRACKET, Front
-
1410-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
15815477 BUMPER, LatchBUMPER, Latch
-
168155381 PIN, RollPIN, Roll
-
1711-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1812-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1953-8237951 RING, RetainingRING, Retaining
-
20815263 ROLLERROLLER
-
2112-87161 WASHERWASHER
-
-37-897136A07 DECAL SET, ProXS, HP decal not included
SN# 1B934307 & BelowDECAL SET, ProXS, HP decal not included
SN# 1B934307 & Below -
-37-8M0114996 DECAL SET, ProXS, HP Decal not included
SN# 1B934308 & UpDECAL SET, ProXS, HP Decal not included
SN# 1B934308 & Up -
-37-897136A07 DECAL SET, 250 ProXS
SN# 1B934307 & BelowDECAL SET, 250 ProXS
SN# 1B934307 & Below -
-37-8M0061186 DECAL, Horsepower 225
SN# 1B934307 & BelowDECAL, Horsepower 225
SN# 1B934307 & Below -
-37-8M0065747 DECAL, Horsepower 225
SN# 1B934308 & UpDECAL, Horsepower 225
SN# 1B934308 & Up -
-37-8M0061187 DECAL, Horsepower 250
SN# 1B934307 & BelowDECAL, Horsepower 250
SN# 1B934307 & Below -
-37-8M0062029 DECAL, Horsepower 250
SN# 1B934308 & UpDECAL, Horsepower 250
SN# 1B934308 & Up -
-37-8M0135962 DECAL, Strips
SN# 1B934307 & BelowDECAL, Strips
SN# 1B934307 & Below -
-37-8M0072981 DECAL, Belt Line
SN# 1B934308 & UpDECAL, Belt Line
SN# 1B934308 & Up
