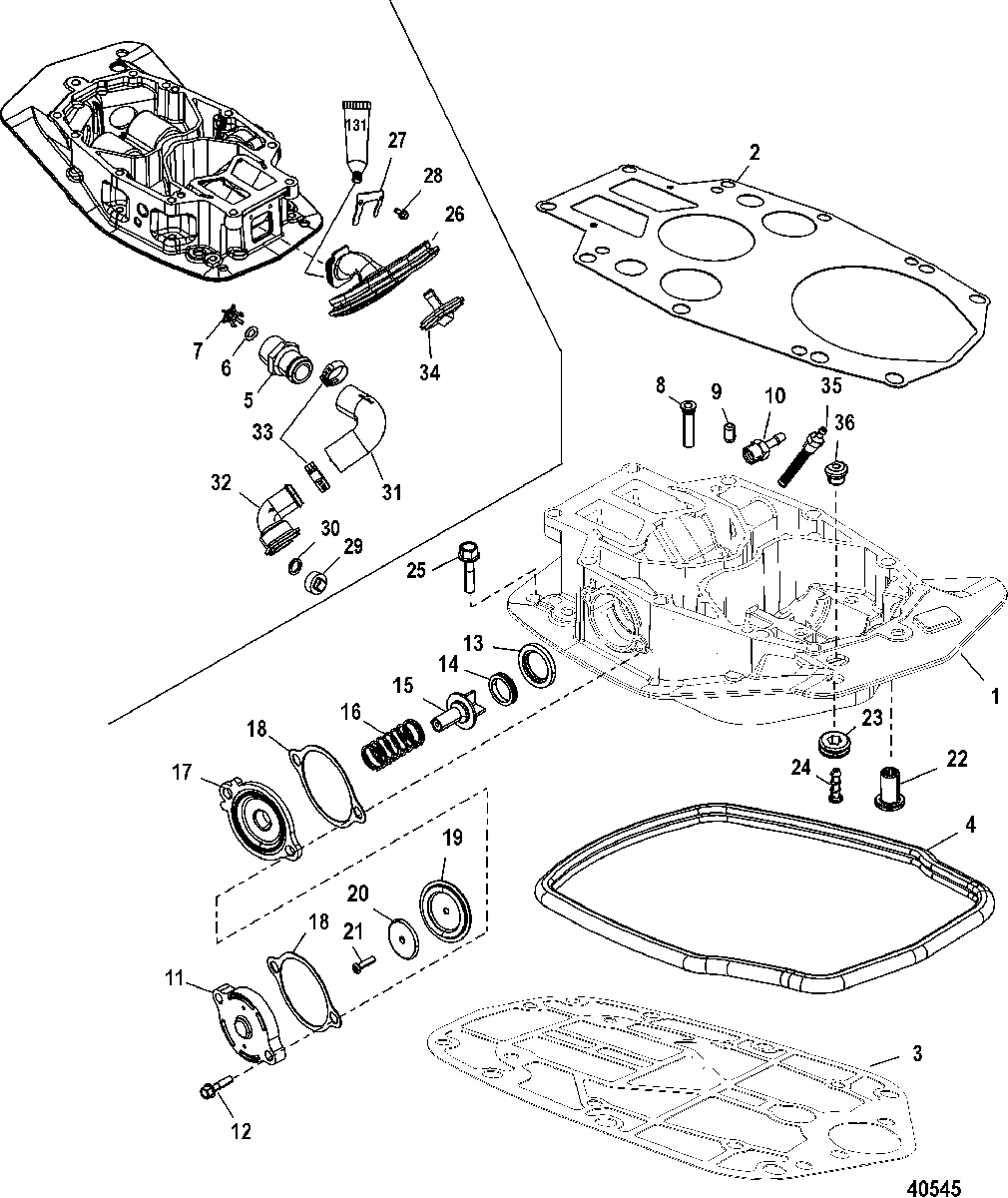

Exhaust Plate для Mercury - 225 PRO XS (3.0L DFI) 1B752547 & Up
-
№АртикулНазвание
-
1832935A17 PLATE ASSEMBLY, ExhaustPLATE ASSEMBLY, Exhaust
-
227-832933006 GASKETGASKET
-
327-832934006 GASKET (Lower)GASKET (Lower)
-
48M0043157 SEALSEAL
-
-22-832076A1 FITTING ASSEMBLY, FlushFITTING ASSEMBLY, Flush
-
522-8320761 FITTING, Check ValveFITTING, Check Valve
-
625-30641 O-RING, (.299 x .103)O-RING, (.299 x .103)
-
78219631 CHECK VALVECHECK VALVE
-
821-817519A1 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
917-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
1022-887603 FITTINGFITTING
-
1165663A2 COVER ASSEMBLY (Includes Reference #18)COVER ASSEMBLY (Includes Reference #18)
-
1210-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
13814190 CARRIERCARRIER
-
1425-814191 GROMMETGROMMET
-
15814189 POPPETPOPPET
-
1624-64878 SPRING, (Black)SPRING, (Black)
-
1765664A1 PLATE ASSEMBLYPLATE ASSEMBLY
-
1827-88907003 GASKETGASKET
-
19648771 DIAPHRAGMDIAPHRAGM
-
2012-76451 WASHERWASHER
-
2110-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
2243585 COUPLINGCOUPLING
-
2325-822002 GROMMETGROMMET
-
2422-94848 FITTINGFITTING
-
2510-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
26850306A04 BOOT KIT, Idle ExhaustBOOT KIT, Idle Exhaust
-
27888910 PLATEPLATE
-
2810-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
2919-821908 PLUGPLUG
-
3012-821915 WASHERWASHER
-
3132-859626A1 FLUSH HOSE KIT (Inlet)FLUSH HOSE KIT (Inlet)
-
3222-8596001 FITTINGFITTING
-
3354-850896 CLAMP, (28.6)CLAMP, (28.6)
-
3422-8M0077650 FITTING, Tell-TaleFITTING, Tell-Tale
-
3535-8348084 STRAINERSTRAINER
-
3625-12602002 GROMMETGROMMET
-
3723-48237 BUSHINGBUSHING
-
-27-841220A03 GASKET SET, PowerheadGASKET SET, Powerhead
