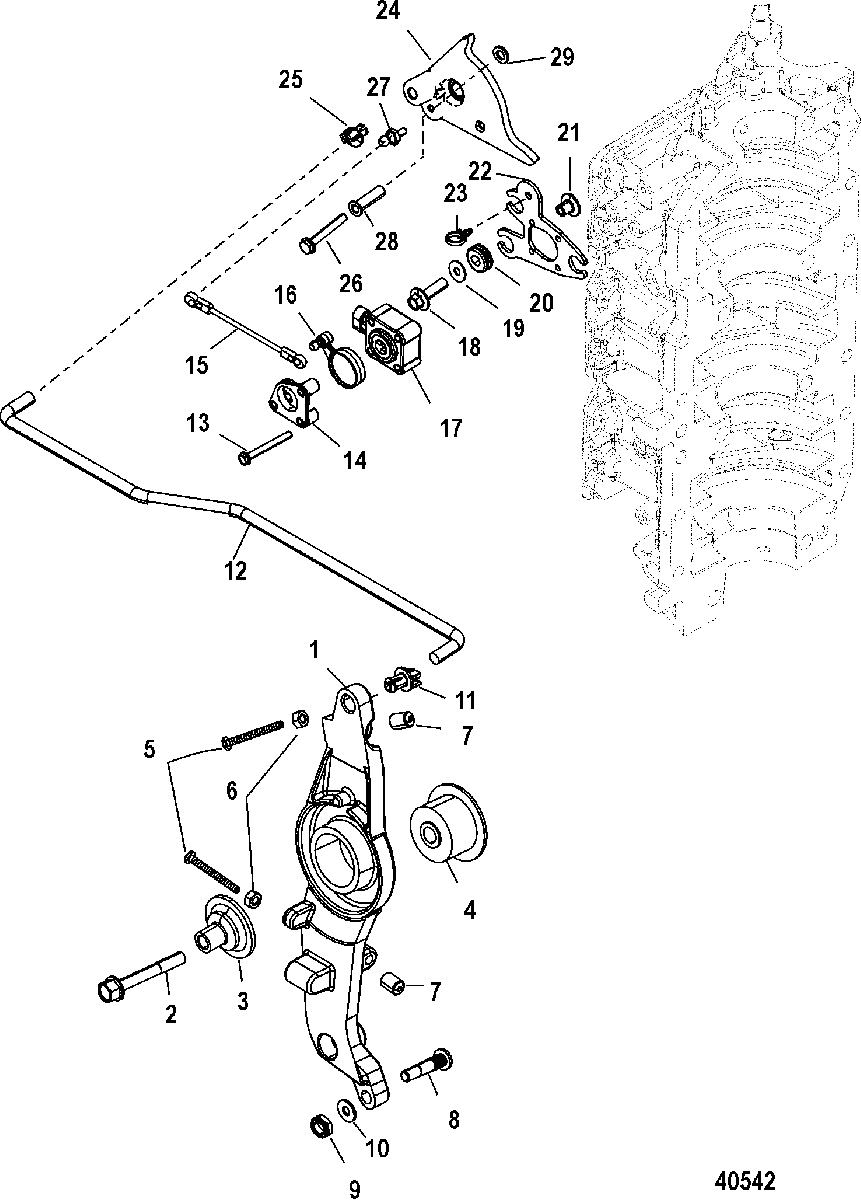

Throttle Linkage для Mercury - 225 PRO XS (3.0L DFI) 1B752547 & Up
-
№АртикулНазвание
-
18M0040987 LEVERLEVER
-
210-81893460 SCREW, (M8 x 60)SCREW, (M8 x 60)
-
323-887605 BUSHINGBUSHING
-
423-821113 BUSHINGBUSHING
-
510-40124 SCREW, (M6 x 55)SCREW, (M6 x 55)
-
611-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
742942 CAPCAP
-
842927 INSERTINSERT
-
911-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1012-35459 WASHERWASHER
-
1123-932481 BUSHINGBUSHING
-
12884834 LINKLINK
-
1310-40011113 SCREW, (M5 x 45) Stainless SteelSCREW, (M5 x 45) Stainless Steel
-
148582261 COVER, TPSCOVER, TPS
-
158M0008111 LINK, TPILINK, TPI
-
16883081 LEVERLEVER
-
178M6005165 INDICATOR, Throttle PositionINDICATOR, Throttle Position
-
1810-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1912-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
2025-834985 GROMMETGROMMET
-
2123-856954 BUSHINGBUSHING
-
228544862 BRACKETBRACKET
-
2354-858932 CLIPCLIP
-
24858353T10 CAM ASSEMBLY
SN# 1B973743 & BelowCAM ASSEMBLY
SN# 1B973743 & Below -
248M0065991 CAM ASSEMBLY
SN# 1B973744 & UpCAM ASSEMBLY
SN# 1B973744 & Up -
2523-932481 BUSHINGBUSHING
-
2610-40011155 SCREW, (M8 x 55) Stainless SteelSCREW, (M8 x 55) Stainless Steel
-
278235694 BALL, Threaded
SN# 1B973743 & BelowBALL, Threaded
SN# 1B973743 & Below -
2823-8807371 BUSHINGBUSHING
-
2912-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
