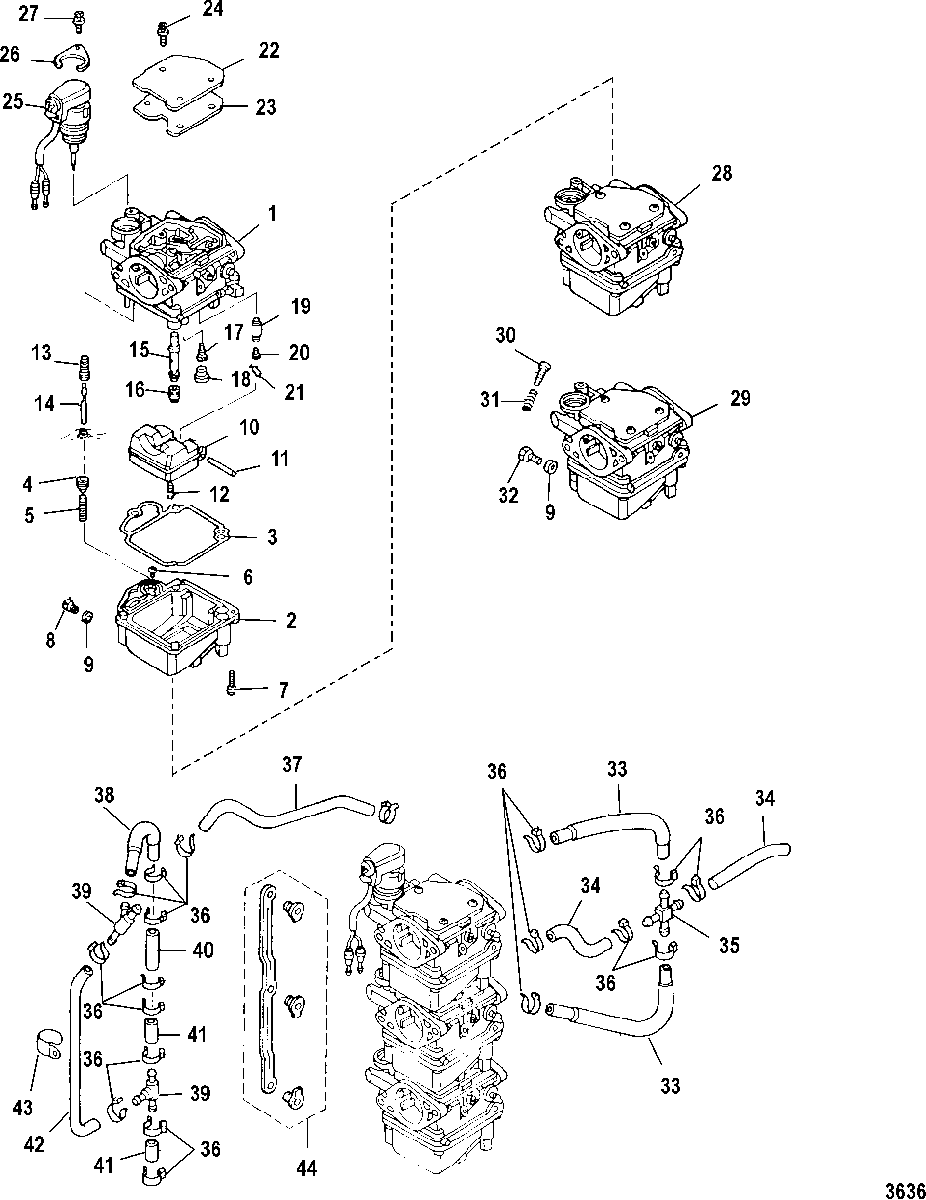

Carburetor для Mercury - 25 SEAPRO (4-STROKE) 0R051710 & Up
-
№АртикулНазвание
-
13303-895110A05 CARBURETOR, UpperCARBURETOR, Upper
-
2802690005 FLOAT
(Bowl Upper)FLOAT
(Bowl Upper) -
2802690006 FLOAT
(Bowl Center)FLOAT
(Bowl Center) -
2802690007 FLOAT
(Bowl Lower)FLOAT
(Bowl Lower) -
327-802699004 GASKET, Float BowlGASKET, Float Bowl
-
4853830002 PLUNGERPLUNGER
-
524-895116001 SPRINGSPRING
-
610-895136001 SCREWSCREW
-
710-162601 SCREWSCREW
-
810-803509015 SCREW, DrainSCREW, Drain
-
927-8M0094878 GASKETGASKET
-
1016253004 FLOATFLOAT
-
1117-16256004 FLOAT, Arm PinFLOAT, Arm Pin
-
1210-16196001 SCREWSCREW
-
13895115001 BOOT, RubberBOOT, Rubber
-
14853746003 ROD, LinkROD, Link
-
15802700005 NOZZLE, MainNOZZLE, Main
-
16802701006 JET, Main #82JET, Main #82
-
17803689004 JET, Slow #45JET, Slow #45
-
1816252 CAPCAP
-
19898101063 VALVE, FloatVALVE, Float
-
20853721 PIN, ValvePIN, Valve
-
2154-16255 CLIPCLIP
-
22855540003 COVER, CarburetorCOVER, Carburetor
-
2327-855541004 GASKETGASKET
-
2410-855542 SCREWSCREW
-
25854254004 ENRICHENERENRICHENER
-
26854255001 PLATEPLATE
-
2710-855542 SCREWSCREW
-
283303-895110A06 CARBURETOR, CenterCARBURETOR, Center
-
293303-895110A07 CARBURETOR, LowerCARBURETOR, Lower
-
3010-16263 SCREWSCREW
-
3124-16264002 SPRINGSPRING
-
3210-803509016 SCREW, DrainSCREW, Drain
-
3332-895153005 HOSE, RubberHOSE, Rubber
-
3432-895153003 HOSE, RubberHOSE, Rubber
-
3522-812960004 CONNECTORCONNECTOR
-
3654-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3732-895153004 HOSE, RubberHOSE, Rubber
-
3832-895153008 HOSE, RubberHOSE, Rubber
-
3922-73318002 TEE, FittingTEE, Fitting
-
4032-895153002 HOSE, RubberHOSE, Rubber
-
4132-895153006 HOSE, RubberHOSE, Rubber
-
4232-895153007 HOSE, RubberHOSE, Rubber
-
4354-953951 CLAMPCLAMP
-
44853761001 LEVER, Link ComponentsLEVER, Link Components
