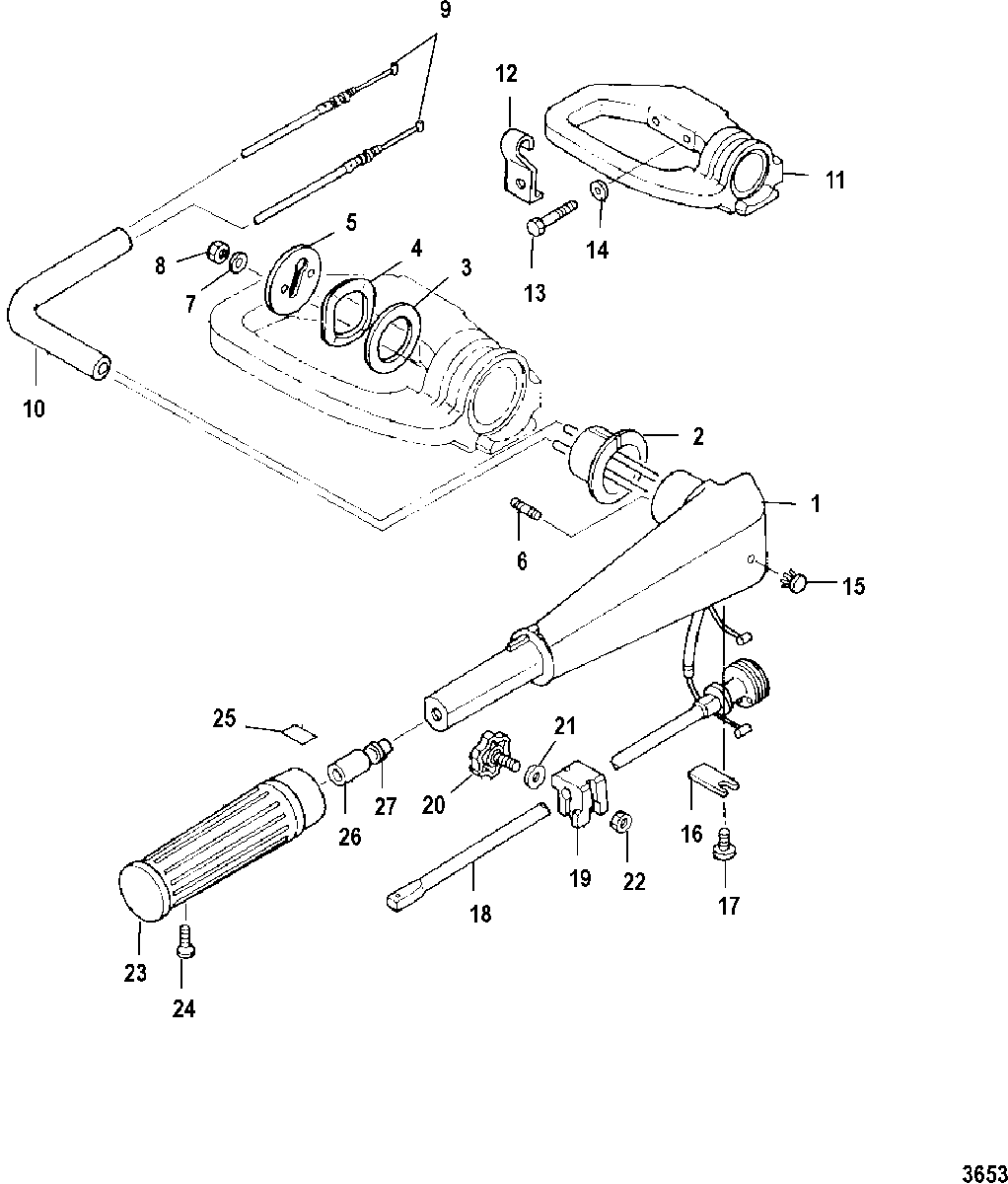

Tiller Handle для Mercury - 25 SEAPRO (4-STROKE) 0R051710 & Up
-
№АртикулНазвание
-
1803996002 Handle, SteeringHandle, Steering
-
223-823939001 BUSHINGBUSHING
-
312-822145001 WASHERWASHER
-
413-826792001 WAVE WASHER,WAVE WASHER,
-
5826648001 PLATE, HandlePLATE, Handle
-
616-815028 STUD BOLTSTUD BOLT
-
712-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
811-853722022 NUTNUT
-
9895131A04 CABLE ASSEMBLY, ThrottleCABLE ASSEMBLY, Throttle
-
1032-895108004 SLEEVE, ProtectiveSLEEVE, Protective
-
11804019002 BRACKET, SteeringBRACKET, Steering
-
1254-851863001 CLAMPCLAMP
-
1310-895140003 BOLTBOLT
-
1412-879194340 WASHER, Stainless SteelWASHER, Stainless Steel
-
1517-16085 PINPIN
-
1616338 BRACKETBRACKET
-
1710-16827 SCREWSCREW
-
18803998002 SHAFT, ThrottleSHAFT, Throttle
-
19813026 FRICTION PIECEFRICTION PIECE
-
2010-16087 SCREW, AdjustingSCREW, Adjusting
-
2112-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
2211-853722022 NUTNUT
-
23853775003 GRIPGRIP
-
2410-803876002 SCREWSCREW
-
2537-824200005 DECAL, ThrottleDECAL, Throttle
-
2623-16191 SPACERSPACER
-
2723-8M0130166 BUSHINGBUSHING
Все узлы модели:
- Accessories
- Camshaft and Oil Pump
- Carburetor
- Clamp Brackets
- Cowling
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head
- Driveshaft Housing
- Electrical Components
- Fuel Tank Assembly(6.6 Gallon)
- Gear Housing, Driveshaft
- Gear Housing, Propeller Shaft
- Intake and Exhaust Valves
- Intake Manifold and Fuel Pump
- Recoil Starter
- Service/Support Material
- Shift Components
- Swivel Bracket
- • Tiller Handle
