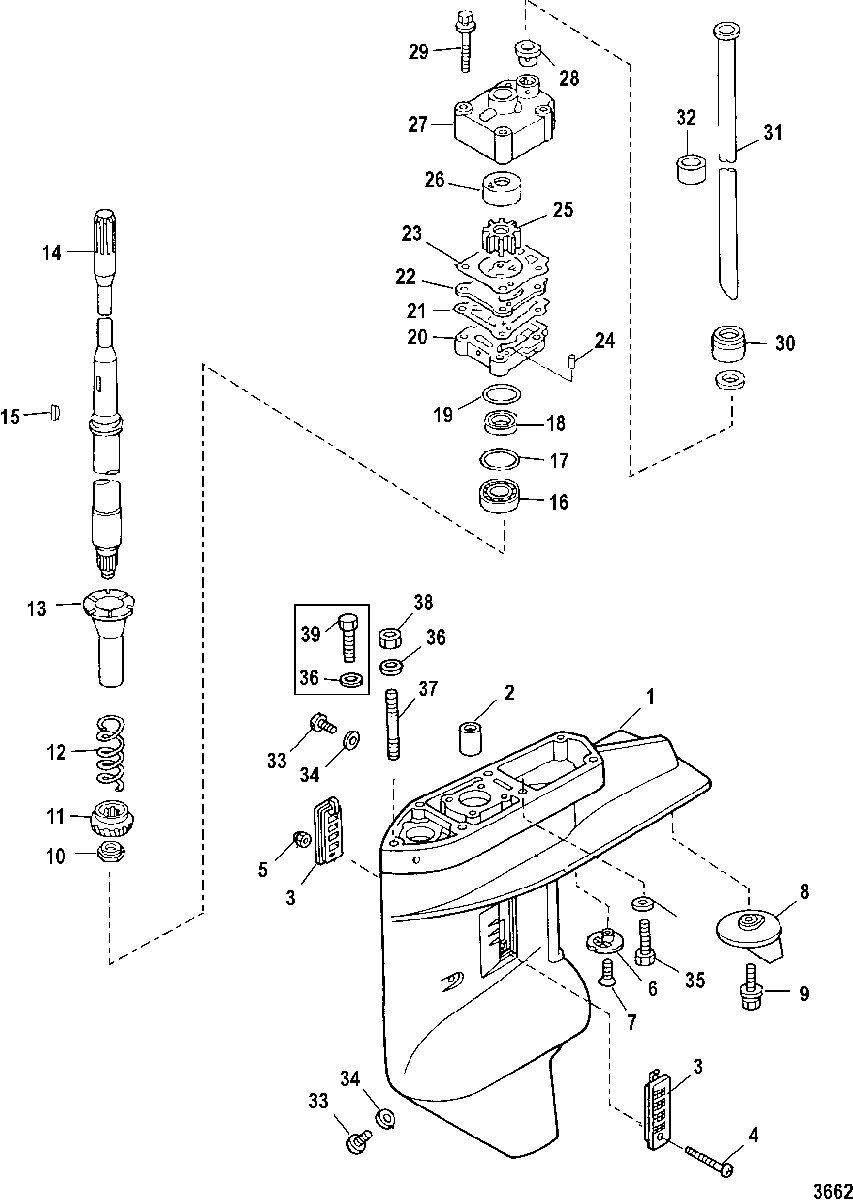

Gear Housing, Driveshaft для Mercury - 25 SEAPRO (4-STROKE) 0R051710 & Up
-
№АртикулНазвание
-
-1668-895154A04 GEAR HOUSING ASSEMBLY, Complete
ShortGEAR HOUSING ASSEMBLY, Complete
Short -
-1668-8M0070900 GEAR HOUSING ASSEMBLY, Complete
LongGEAR HOUSING ASSEMBLY, Complete
Long -
11668-8M0057242 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
231-813048006 BEARING, NeedleBEARING, Needle
-
3853763 STRAINER SET, WaterSTRAINER SET, Water
-
410-17635 SCREWSCREW
-
511-85372210 NUTNUT
-
616133 STRAINER, WaterSTRAINER, Water
-
710-898101959 SCREWSCREW
-
8853762 TRIM TABTRIM TAB
-
910-167051 BOLTBOLT
-
1011-85372211 NUTNUT
-
1143-16138T01 GEAR, Pinion (12 Teeth)GEAR, Pinion (12 Teeth)
-
1224-8126454 SPRINGSPRING
-
13853765T PIPEPIPE
-
1445-803738T06 DRIVESHAFT
ShortDRIVESHAFT
Short -
1445-16136T02 DRIVESHAFT
LongDRIVESHAFT
Long -
1528-161551 KEYKEY
-
1630-16128T02 BEARING, Tapered rollerBEARING, Tapered roller
-
1715-813276001 SHIM, (0.1)SHIM, (0.1)
-
1715-813276015 SHIM, (0.15)SHIM, (0.15)
-
1715-813276003 SHIM, (0.3)SHIM, (0.3)
-
1715-813276005 SHIM, (0.5)SHIM, (0.5)
-
1826-161622 SEAL, OilSEAL, Oil
-
1925-8537096 O-RINGO-RING
-
2046-8260531 HOUSING, Water Pump - LowerHOUSING, Water Pump - Lower
-
2127-161602 GASKETGASKET
-
22803753002 PLATE, Water Pump GuidePLATE, Water Pump Guide
-
2327-16158010 GASKETGASKET
-
2417-952188 PIN, DowelPIN, Dowel
-
2547-803748002 IMPELLERIMPELLER
-
26803751002 PUMP, Liner HousingPUMP, Liner Housing
-
2746-803750T05 HOUSING, Water PumpHOUSING, Water Pump
-
2826-161681 SEALSEAL
-
2910-879194269 BOLTBOLT
-
3025-804903001 GROMMETGROMMET
-
3132-803755006 TUBE, Water
ShortTUBE, Water
Short -
3132-803755007 TUBE, Water
LongTUBE, Water
Long -
3232-8M0093642 HOSE, Rubber (15 mm)
LongHOSE, Rubber (15 mm)
Long -
3322-953683 PLUGPLUG
-
348M0082880 GASKETGASKET
-
3510-879194307 BOLTBOLT
-
3612-16192 WASHERWASHER
-
3710-879194302 BOLT, Stud
ShortBOLT, Stud
Short -
3811-879194337 NUTNUT
-
3910-879194308 BOLT
Long and X-LongBOLT
Long and X-Long -
-853792A07 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
-
-27-8M0089636 GASKET SET, Lower UnitGASKET SET, Lower Unit
