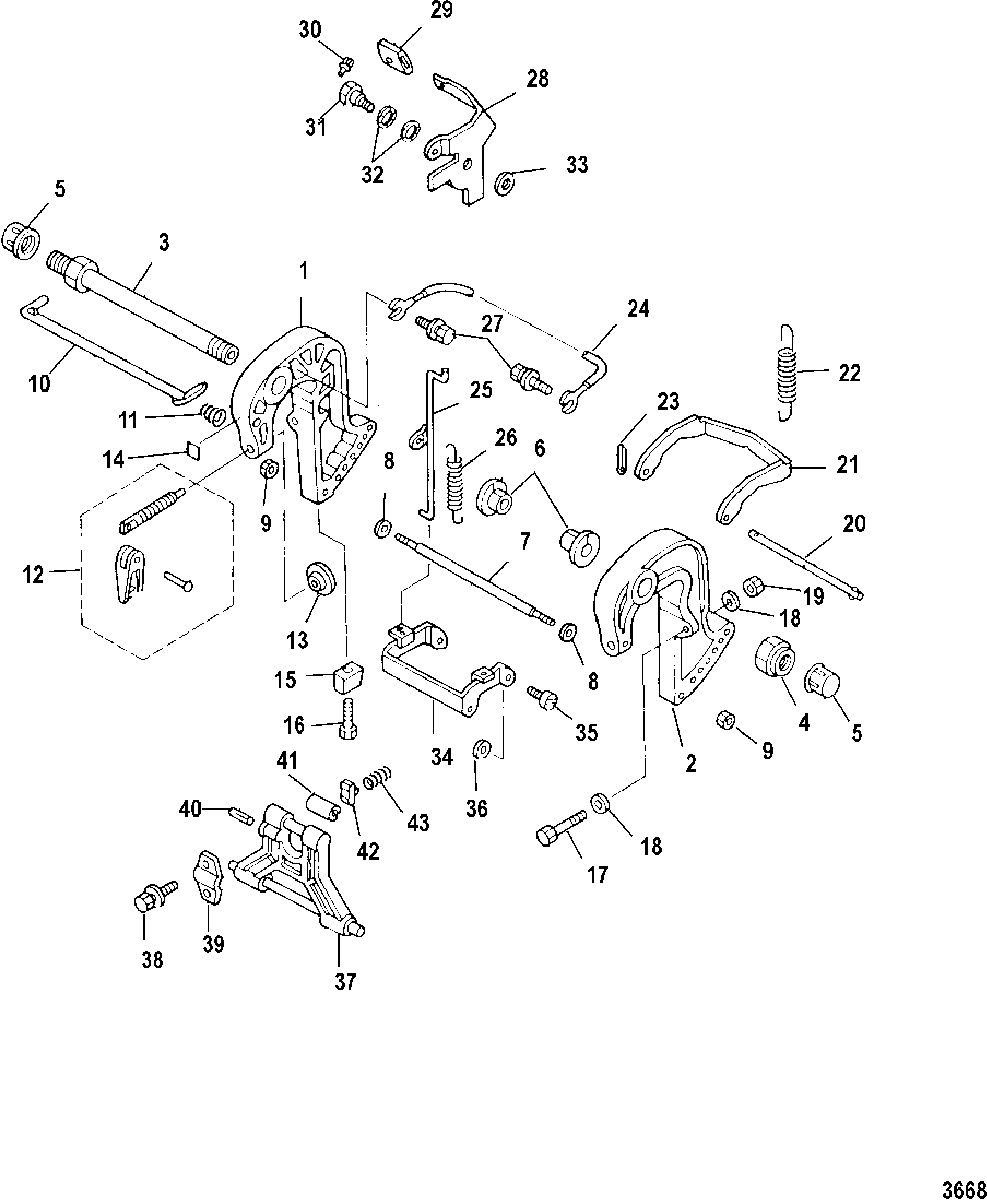

Clamp Brackets для Mercury - 25 SEAPRO (4-STROKE) 0R051710 & Up
-
№АртикулНазвание
-
18M0047037 CLAMP BRACKET, Starboard, Black, 1/2 Inch Thread
SN# 0N074966 & BelowCLAMP BRACKET, Starboard, Black, 1/2 Inch Thread
SN# 0N074966 & Below -
13418-898101T26 CLAMP BRACKET, Starboard, 14MM Thread
SN# 0N074967 & UpCLAMP BRACKET, Starboard, 14MM Thread
SN# 0N074967 & Up -
28M0047051 CLAMP BRACKET, Port, Black, 1/2 Inch Thread
SN# 0N074966 & BelowCLAMP BRACKET, Port, Black, 1/2 Inch Thread
SN# 0N074966 & Below -
23418-898101T25 CLAMP BRACKET, Port, 14MM Thread
SN# 0N074967 & UpCLAMP BRACKET, Port, 14MM Thread
SN# 0N074967 & Up -
310-851866008 BOLTBOLT
-
411-853722029 NUTNUT
-
511-85372214 CAP NUTCAP NUT
-
623-8537435 BUSHINGBUSHING
-
7853796 PIN, SpacerPIN, Spacer
-
812-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
911-853722022 NUTNUT
-
10898101207 PIN, TiltPIN, Tilt
-
1124-8126455 SPRINGSPRING
-
1210-8M0060116 THUMB SCREW ASSEMBLY, 1/2 Inch Thread Size
SN# 0N074966 & BelowTHUMB SCREW ASSEMBLY, 1/2 Inch Thread Size
SN# 0N074966 & Below -
1210-8M0060117 THUMB SCREW ASSEMBLY, 14 MM Thread Size
SN# 0N074967 & UpTHUMB SCREW ASSEMBLY, 14 MM Thread Size
SN# 0N074967 & Up -
1312-95379 PADPAD
-
1437-823701003 DECAL, Co-PilotDECAL, Co-Pilot
-
1597-804043 ANODEANODE
-
1610-879194264 BOLTBOLT
-
1710-879194310 BOLTBOLT
-
1812-16192 WASHERWASHER
-
1911-879194337 NUTNUT
-
208537474 ROD, Reverse LockROD, Reverse Lock
-
21162131 ARM, Reverse LockARM, Reverse Lock
-
2224-953834 SPRING
(Short)SPRING
(Short) -
2224-879194008 SPRING
(Long)SPRING
(Long) -
2318-8150261 COTTER PINCOTTER PIN
-
2484-898101089 GROUND WIRE, To Swivel BracketGROUND WIRE, To Swivel Bracket
-
258537475 LINK, Reverse LockLINK, Reverse Lock
-
2624-953833 SPRINGSPRING
-
2710-8230427 BOLTBOLT
-
288M0074784 LEVER, Reverse LockLEVER, Reverse Lock
-
29853775 GRIPGRIP
-
308M0051399 BUTTONBUTTON
-
3110-162612 BOLTBOLT
-
3213-17641 WAVE WASHERWAVE WASHER
-
3312-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
34162132 ARM, Reverse LockARM, Reverse Lock
-
3510-879194007 SCREWSCREW
-
3612-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
37898101208 STOPPER, TiltSTOPPER, Tilt
-
3810-8M0098607 BOLTBOLT
-
39879194006 SET PLATESET PLATE
-
4017-95218016 PIN, SpringPIN, Spring
-
418251131 BRACKETBRACKET
-
42853774 STOPSTOP
-
4324-953832 SPRINGSPRING
