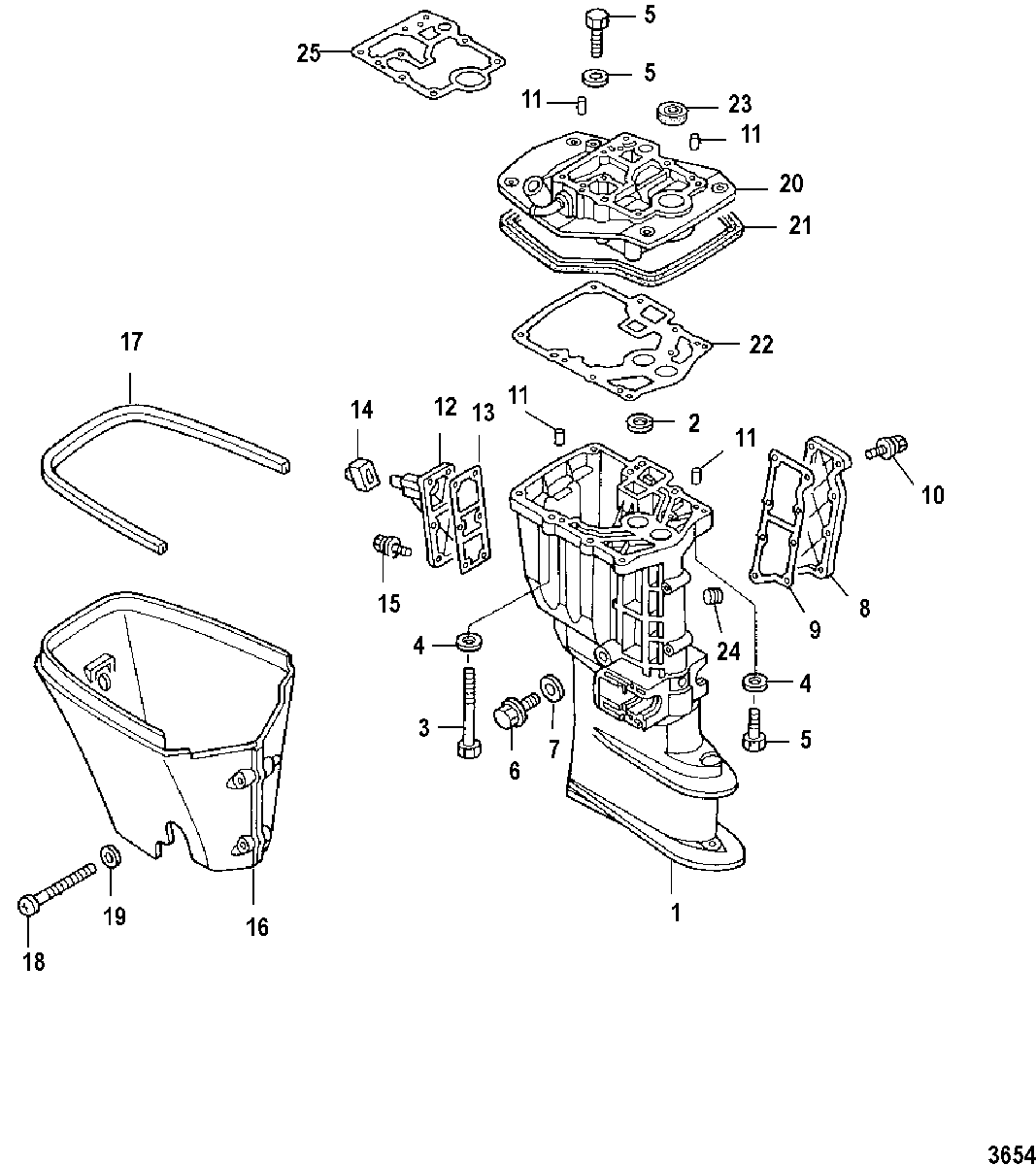

Driveshaft Housing для Mercury - 25 SEAPRO (4-STROKE) 0R051710 & Up
-
№АртикулНазвание
-
11599-803724T02 HOUSING, Driveshaft
(Short)HOUSING, Driveshaft
(Short) -
11500-8M0134022 HOUSING, Driveshaft
(Long)HOUSING, Driveshaft
(Long) -
295275002 PLATEPLATE
-
310-898103227 BOLTBOLT
-
412-16192 WASHERWASHER
-
510-823042079 BOLTBOLT
-
610-895136002 BOLT, DrainBOLT, Drain
-
712-895146 WASHERWASHER
-
8853577001 COVER, DrainCOVER, Drain
-
927-854617001 GASKETGASKET
-
1010-167051 BOLTBOLT
-
1117-16119 PIN, DowelPIN, Dowel
-
12895147001 COVER, Idle PortCOVER, Idle Port
-
1327-895148001 GASKETGASKET
-
1425-881305005 GROMMETGROMMET
-
1510-167051 BOLTBOLT
-
16895149001 APRONAPRON
-
17852432002 SEAL, RubberSEAL, Rubber
-
1810-16257004 SCREW, TappingSCREW, Tapping
-
1912-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
20851852002 ADAPTER PLATE, With NippleADAPTER PLATE, With Nipple
-
21852432001 SEAL, RubberSEAL, Rubber
-
2227-803663T15 GASKETGASKET
-
2326-8537072 SEAL, OilSEAL, Oil
-
2419-803593 PLUGPLUG
-
2527-835427T04 GASKETGASKET
-
-27-835427A05 GASKET SET, PowerheadGASKET SET, Powerhead
