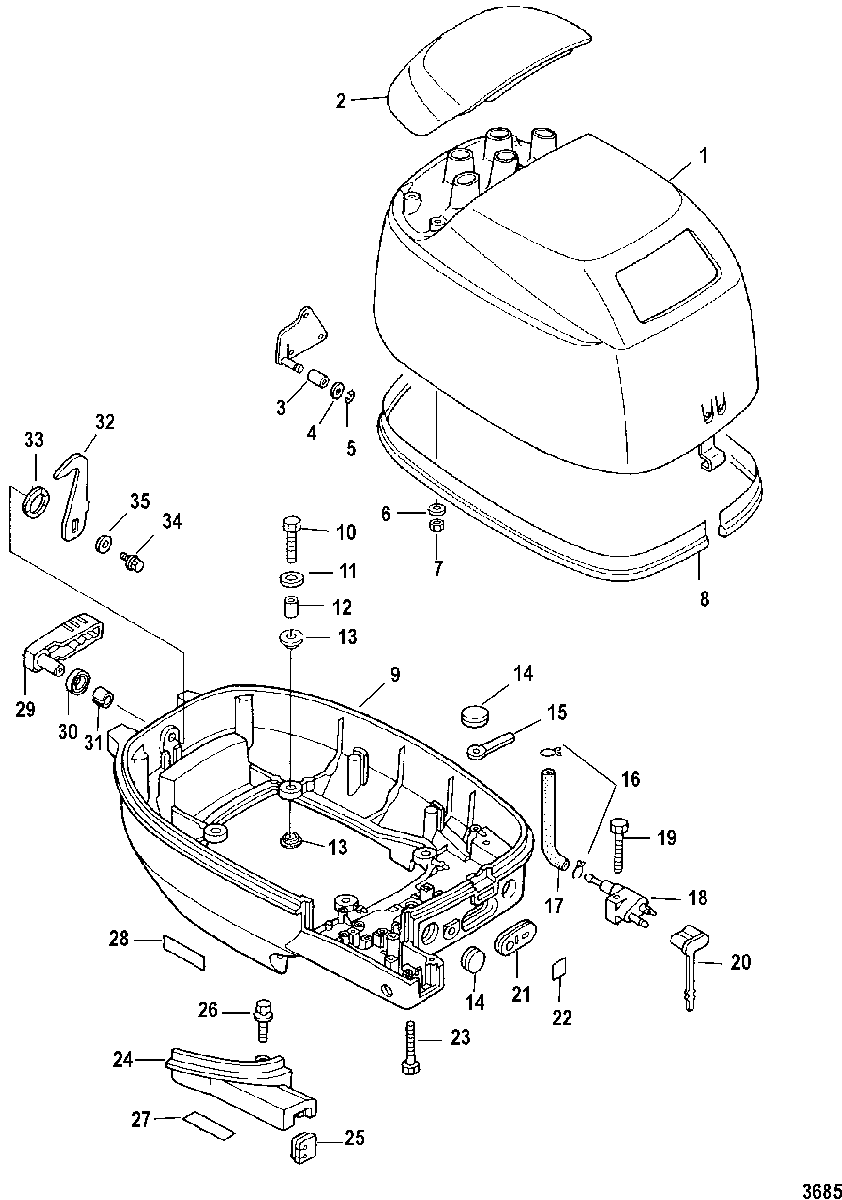

Cowling для Mercury - 25 SEAPRO (4-STROKE) 0R051710 & Up
-
№АртикулНазвание
-
1114-803580A12 TOP COWL ASSEMBLYTOP COWL ASSEMBLY
-
216218009 TILT HANDLETILT HANDLE
-
3853788001 ROLLERROLLER
-
412-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
553-953181 E RINGE RING
-
612-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
711-853722022 NUTNUT
-
8895178002 SEAL, RubberSEAL, Rubber
-
92189-853778007 BOTTOM COWLBOTTOM COWL
-
1010-8M0124428 BOLTBOLT
-
1112-161404 WASHERWASHER
-
1223-8537154 SPACERSPACER
-
1323-8537437 MOUNT, RubberMOUNT, Rubber
-
1425-16226 GROMMETGROMMET
-
1554-803563005 CLAMPCLAMP
-
1654-95395 CLIP, Stainless SteelCLIP, Stainless Steel
-
1732-8M0057113 TUBING, (300 mm)TUBING, (300 mm)
-
1822-15781A5 CONNECTOR, Fuel - BrassCONNECTOR, Fuel - Brass
-
1910-8M0102279 BOLT, Stainless SteelBOLT, Stainless Steel
-
20878311 CAPCAP
-
2125-162312 GROMMETGROMMET
-
22NSS NOT SOLD SEPARATE, Decal-Oil PressureNOT SOLD SEPARATE, Decal-Oil Pressure
-
2310-879194268 BOLTBOLT
-
24895174001 COVERCOVER
-
2525-895175002 GROMMETGROMMET
-
2610-8M0098606 BOLTBOLT
-
2737-802987001 DECAL, F, N, RDECAL, F, N, R
-
28NSS NOT SOLD SEPARATE, Decal StorageNOT SOLD SEPARATE, Decal Storage
-
29817015003 LATCH, CowlLATCH, Cowl
-
3026-16219 SEALSEAL
-
3123-163365 BUSHINGBUSHING
-
3216222003 HOOK, CoverHOOK, Cover
-
3313-16221 WAVE WASHERWAVE WASHER
-
3410-8230427 BOLTBOLT
-
3512-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
-98-8M0098715 DECAL SETDECAL SET
