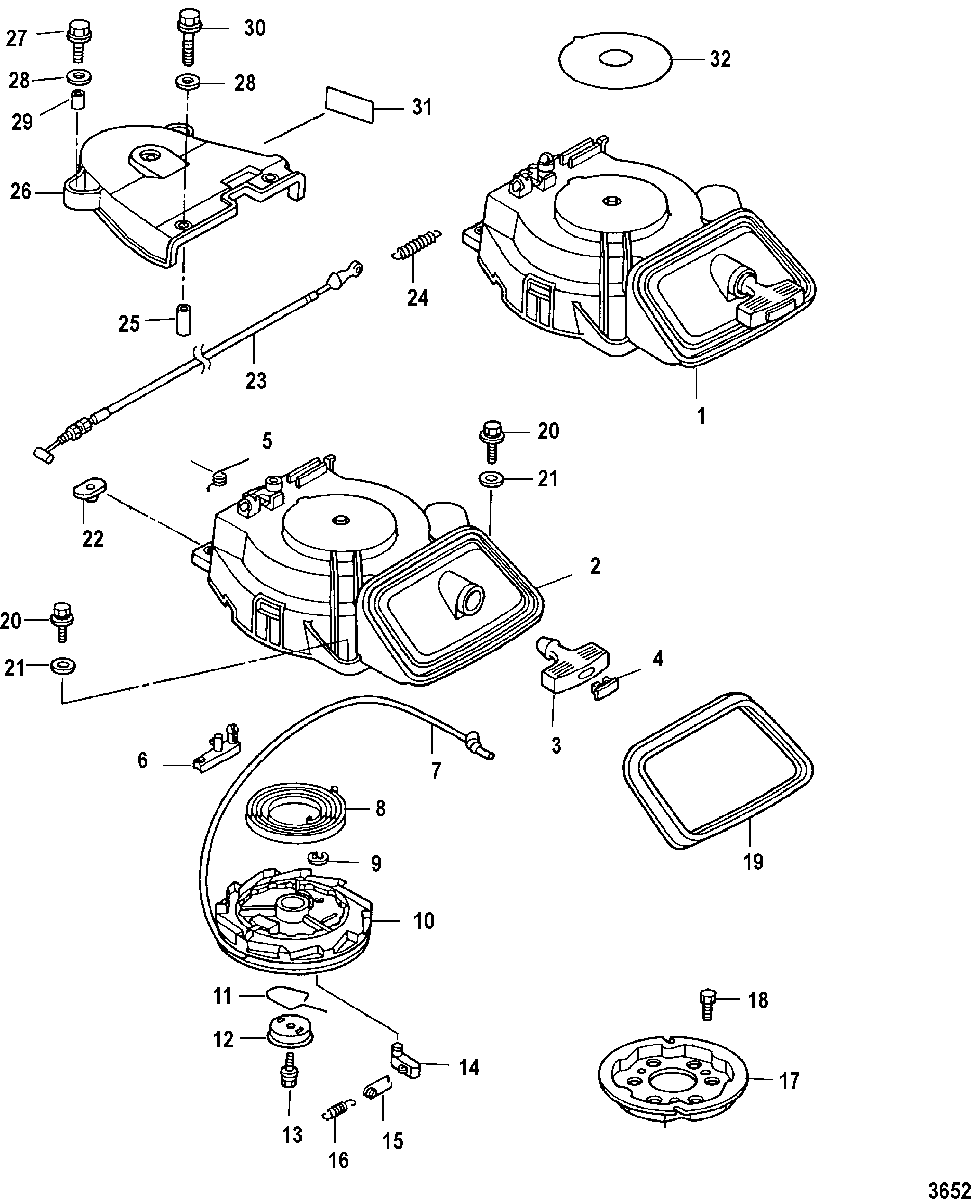

Recoil Starter для Mercury - 25 SEAPRO (4-STROKE) 0R051710 & Up
-
№АртикулНазвание
-
18M0120627 STARTER ASSEMBLY, RecoilSTARTER ASSEMBLY, Recoil
-
2803716005 HOUSING, StarterHOUSING, Starter
-
3804029 HANDLE, StarterHANDLE, Starter
-
4853755002 CAP, Starter HandleCAP, Starter Handle
-
524-812645008 SPRINGSPRING
-
6804031002 LOCK, StarterLOCK, Starter
-
750-8M0110715 ROPE, StarterROPE, Starter
-
824-804024008 SPRING, StarterSPRING, Starter
-
953-852784001 E RINGE RING
-
10803717002 REELREEL
-
1124-852778010 SPRING, FrictionSPRING, Friction
-
12812638002 PLATE, FrictionPLATE, Friction
-
1310-8M0126987 BOLTBOLT
-
14812635T03 RATCHETRATCHET
-
15898101148 RATCHET GUIDERATCHET GUIDE
-
1624-812634004 SPRING, ReturnSPRING, Return
-
17804035001 PULLEY, StarterPULLEY, Starter
-
1810-8248324 BOLT, Stainless SteelBOLT, Stainless Steel
-
19824995004 SEAL, RubberSEAL, Rubber
-
2010-16705 BOLT, Stainless SteelBOLT, Stainless Steel
-
2112-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
2211-856949002 NUTNUT
-
23895131A03 CABLE ASSEMBLY, StarterCABLE ASSEMBLY, Starter
-
2424-812645009 SPRINGSPRING
-
2523-855545004 COLLARCOLLAR
-
26895133T01 COVER, BeltCOVER, Belt
-
2710-16705 BOLT, Stainless SteelBOLT, Stainless Steel
-
2812-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
2923-952868 COLLARCOLLAR
-
3010-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
31878369 DECAL, Spark PlugDECAL, Spark Plug
-
32NSS NOT SOLD SEPARATE, Caution Lable BNOT SOLD SEPARATE, Caution Lable B
