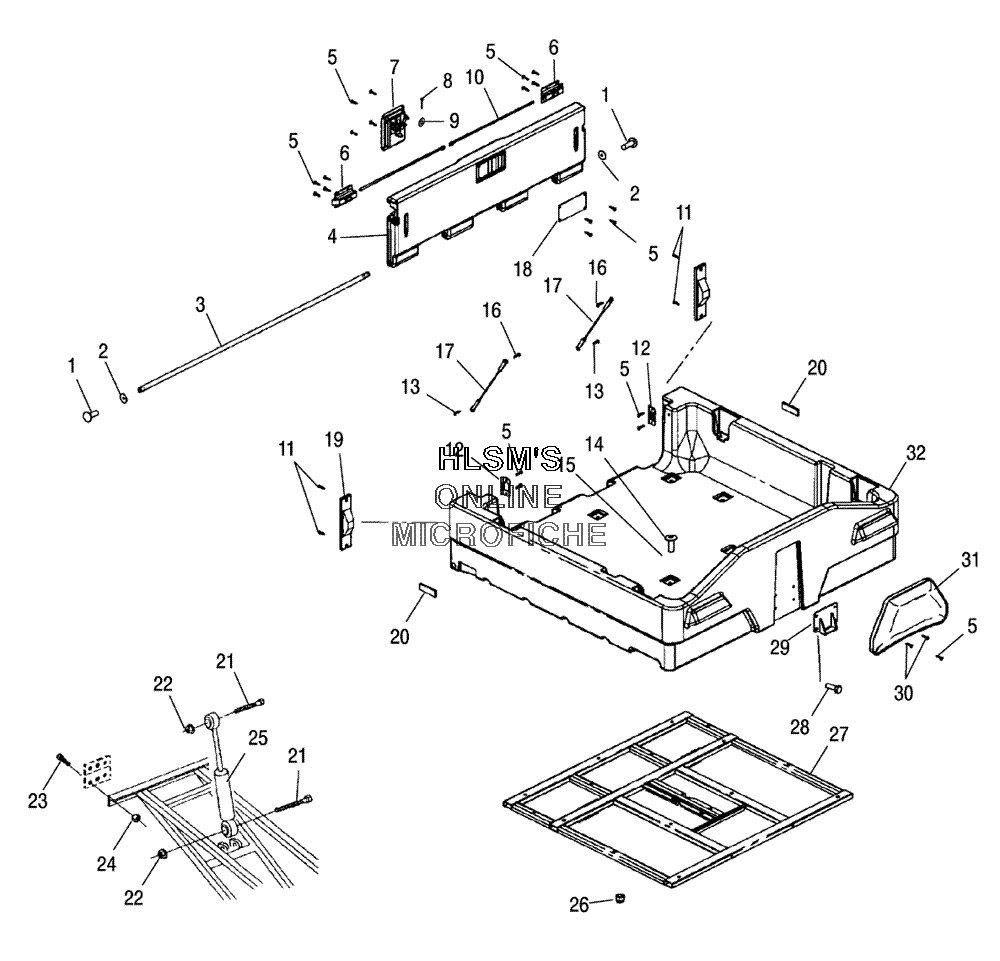

BED - REAR для Polaris SPORTSMAN 6X6 (A05CL50AA) - 2005 года выпуска
-
№АртикулНазвание
-
17515177 SCREWSCREW
-
27558221 WASHERWASHER
-
35132358 ROD, HINGEROD, HINGE
-
45433388 TAILGATE, PLASTICTAILGATE, PLASTIC
-
57517561 SCREWSCREW
-
65433656 LATCH, FLASH BOLT TAILGATE (BLACK)LATCH, FLASH BOLT TAILGATE (BLACK)
-
75433655 LATCH, PADDLE TAILGATE (BLACK)LATCH, PADDLE TAILGATE (BLACK)
-
87661644 PIN, HITCHPIN, HITCH
-
97556143 WSHR, RUBBER W/METAL BACKWSHR, RUBBER W/METAL BACK
-
105132373 SHFT, TAILLGATE LATCH 5/16 ZINCSHFT, TAILLGATE LATCH 5/16 ZINC
-
117517790 SCREW (#10X3/4 HI/LO)SCREW (#10X3/4 HI/LO)
-
125243304 BRKT BOX LATCHBRKT BOX LATCH
-
137517938 SCREW (1/4 20X2)SCREW (1/4 20X2)
-
147517747 SCREW, TROX/TRUSS (3/8 16X1)SCREW, TROX/TRUSS (3/8 16X1)
-
157556157 WASHERWASHER
-
167517742 SCREWSCREW
-
177080881 CABLE TAILGATECABLE TAILGATE
-
185244068-067 COVER TAILGATE (BLACK)COVER TAILGATE (BLACK)
-
192410179 TAILLIGHT W/BRAKE LIGHT ASSYTAILLIGHT W/BRAKE LIGHT ASSY
-
194010340 BULB, TAILLIGHTBULB, TAILLIGHT
-
207079925 DECAL REFLEC (2.88) (RED)DECAL REFLEC (2.88) (RED)
-
217512329 BOLTBOLT
-
227542324 NUT, NYLOKNUT, NYLOK
-
237512492 SCREWSCREW
-
247542449 NUT, FLANGE LOCKNUT, FLANGE LOCK
-
257041301 SHOCK, DUMPBOXSHOCK, DUMPBOX
-
267547089 NUT FLANGE LOCK Y (3/8 16 )NUT FLANGE LOCK Y (3/8 16 )
-
271012893-067 WELD BOX SUPPORT (BLACK)WELD BOX SUPPORT (BLACK)
-
287515350 SCREWSCREW
-
291013125-067 LATCH, BOX (BLACK)LATCH, BOX (BLACK)
-
307512084 SCREWSCREW
-
312682522-070 BACKREST ASSY (BLACK)BACKREST ASSY (BLACK)
-
312681664-070 COVERING, BACKREST (BLACK)COVERING, BACKREST (BLACK)
-
325435705-070 BOX, MOLDED MOD (BLACK) (INCL. DECAL)BOX, MOLDED MOD (BLACK) (INCL. DECAL)
