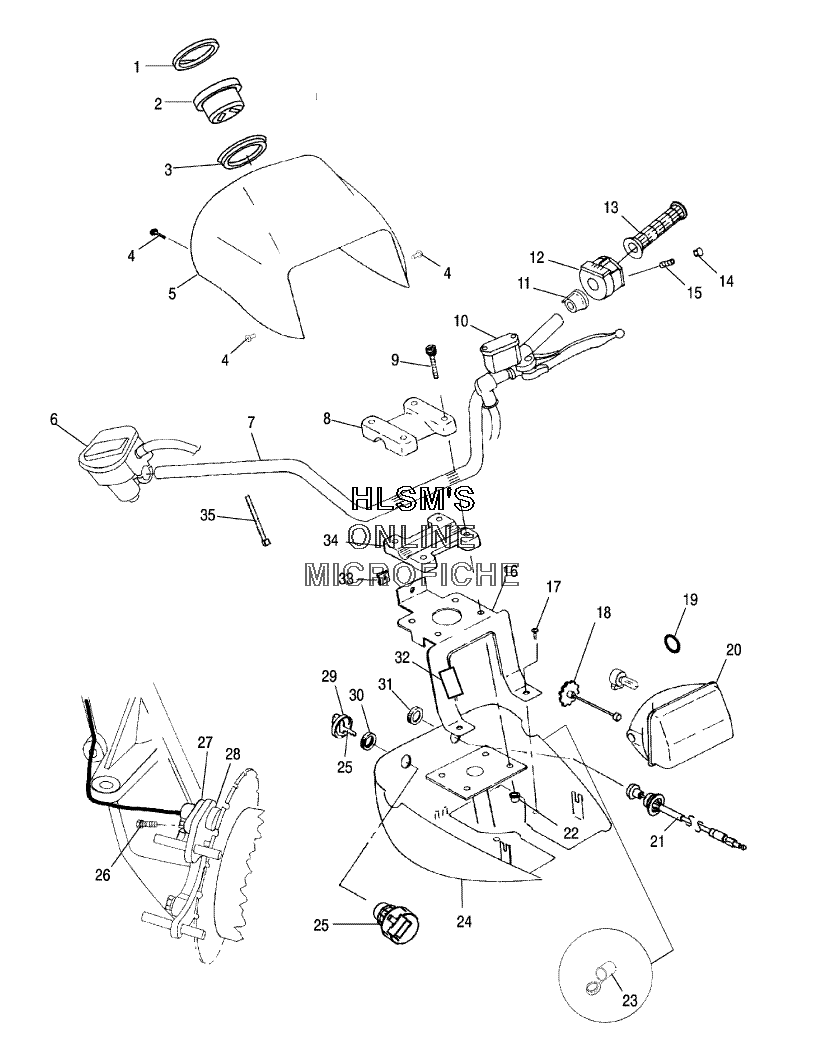

HANDLEBAR W/ HEADLIGHT для Polaris SPORTSMAN 6X6 (A05CL50AA) - 2005 года выпуска
-
№АртикулНазвание
-
15434380 BEZEL REPLACEMENT CLUSTERBEZEL REPLACEMENT CLUSTER
-
23280431 CLUSTER ASSY, W/FUEL (110MM)CLUSTER ASSY, W/FUEL (110MM)
-
35412138 MOUNT RUBBER, INSTRUMENT CLUSTERMOUNT RUBBER, INSTRUMENT CLUSTER
-
47511881 SCREWSCREW
-
55434284-400 POD HDLT, SNAP (UPPER/CAMO GREEN MET)POD HDLT, SNAP (UPPER/CAMO GREEN MET)
-
75244581-067 TUBE, HANDLEBAR (BLACK)TUBE, HANDLEBAR (BLACK)
-
85631517 BLOCK HANDLEBAR, PEGGEDBLOCK HANDLEBAR, PEGGED
-
97515189 SCREWSCREW
-
115433903 SPACER SWITCH (LEFT) (99)SPACER SWITCH (LEFT) (99)
-
124010592 SWITCH HANDLEBAR, HI/LO/OFF (2P)SWITCH HANDLEBAR, HI/LO/OFF (2P)
-
135433834-070 GRIP HNDLBAR (7/8 ID) (BLACK)GRIP HNDLBAR (7/8 ID) (BLACK)
-
145432952 PLUG, HOLEPLUG, HOLE
-
157517625 SCREW, SETSCREW, SET
-
165244969-067 BRACKET POD MOUNTING (BLACK)BRACKET POD MOUNTING (BLACK)
-
177517317 SCREWSCREW
-
184032079 KNOB, ADJUSTING (W/ROD)KNOB, ADJUSTING (W/ROD)
-
195410163 O RINGO RING
-
202410268 HEADLAMP ASSY (50 WATT)HEADLAMP ASSY (50 WATT)
-
204010253 BULB HEADLIGHT (50 WATT)BULB HEADLIGHT (50 WATT)
-
217081171 CABLE, CHOKE FRICTION (40")CABLE, CHOKE FRICTION (40")
-
227542122 NUT NYLOKNUT NYLOK
-
234010638 RECEPTACLE POD MOUNT (12 VOLT)RECEPTACLE POD MOUNT (12 VOLT)
-
245433762-070 POD HEADLIGHT, SNAP (LOWER/BLACK)POD HEADLIGHT, SNAP (LOWER/BLACK)
-
254011002 SWITCH KEY, 3 POS (INCL. KEY)SWITCH KEY, 3 POS (INCL. KEY)
-
254010278 KEY BLANK (20/21/67/68) SERIESKEY BLANK (20/21/67/68) SERIES
-
254010321 KEY BLANK (22/23/27/28)KEY BLANK (22/23/27/28)
-
267517658 SCREWSCREW
-
274010298 SENSOR, HALL EFFECTSENSOR, HALL EFFECT
-
285132382 CAP HALL SENSORCAP HALL SENSOR
-
295433534 KEY COVER KEYSWITCHKEY COVER KEYSWITCH
-
305433733 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
-
317080922 NUT, CHOKE, HEXAGON (M24X1.5 THD) (M29)NUT, CHOKE, HEXAGON (M24X1.5 THD) (M29)
-
325812563 PAD ADHESIVEPAD ADHESIVE
-
337670127 CLIP SCREW, PANEL (#8/10) ( .03 .10)CLIP SCREW, PANEL (#8/10) ( .03 .10)
-
345631516 BLOCK HANDLEBARBLOCK HANDLEBAR
-
357080138 CABLE TIECABLE TIE
