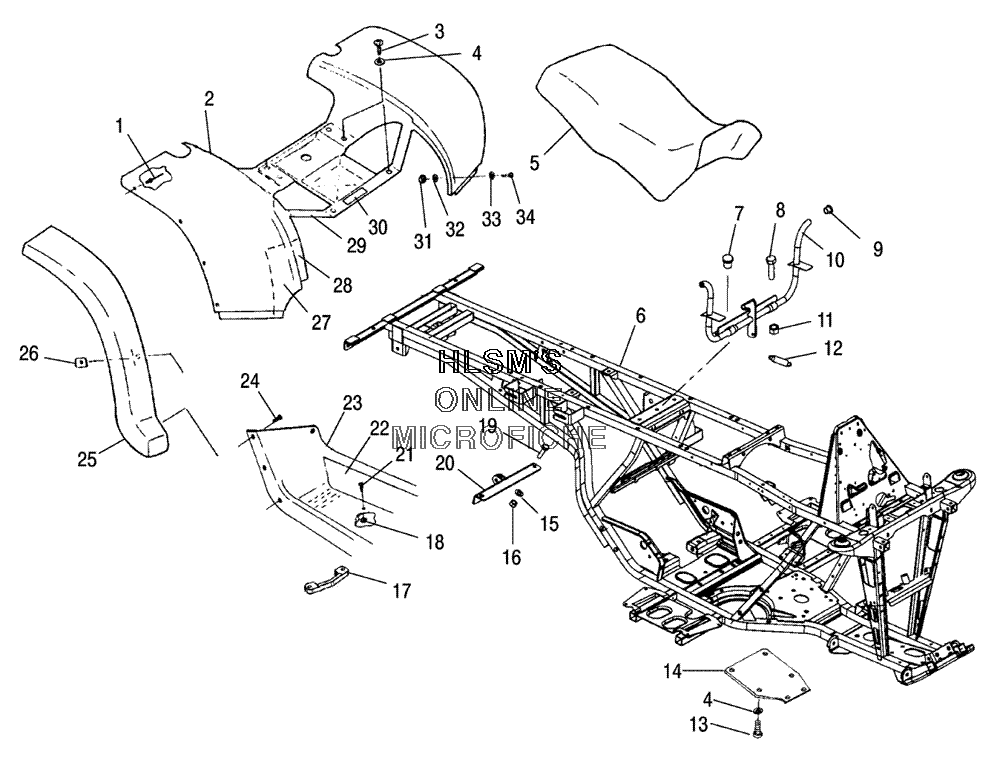

FENDER - REAR W/ SEAT для Polaris SPORTSMAN 6X6 (A05CL50AA) - 2005 года выпуска
-
№АртикулНазвание
-
17661645 RIVETRIVET
-
25433428-400 CAB REAR, MOD (CAMO GREEN MET)CAB REAR, MOD (CAMO GREEN MET)
-
37512242 SCREWSCREW
-
47555859 WASHER, FLATWASHER, FLAT
-
52682959-070 SEAT ASSY (BLACK)SEAT ASSY (BLACK)
-
52682960-070 COVERING SEAT (BLACK)COVERING SEAT (BLACK)
-
61013967-067 WELD MAIN FRAME (BLACK)WELD MAIN FRAME (BLACK)
-
75410414 BUMPER, RUBBERBUMPER, RUBBER
-
87512240 BOLTBOLT
-
95432798 PLUG, NYLONPLUG, NYLON
-
101013307-067 LEVER, BOX (BLACK)LEVER, BOX (BLACK)
-
117542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
127041879 SPRING LATCH RETURNSPRING LATCH RETURN
-
137515179 SCREWSCREW
-
145432763 GUARD, ROCKGUARD, ROCK
-
157555734 WASHER, FLATWASHER, FLAT
-
167542324 NUT, NYLOKNUT, NYLOK
-
175432280 SPACER, FOOTWELLSPACER, FOOTWELL
-
187542122 NUT NYLOKNUT NYLOK
-
197512392 BOLTBOLT
-
201040293-067 MOUNT, STRUT (REAR)MOUNT, STRUT (REAR)
-
217512279 SCREWSCREW
-
227517377 SCREWSCREW
-
235432221-070 FOOTWELL, NYLON (LEFT/BLACK)FOOTWELL, NYLON (LEFT/BLACK)
-
235434417-070 FOOTWELL CDS, NYLON SVC (RIGHT/BLACK)FOOTWELL CDS, NYLON SVC (RIGHT/BLACK)
-
247512232 BOLTBOLT
-
255433429 GUARD, MUD MOD (REAR/LEFT/BLACK)GUARD, MUD MOD (REAR/LEFT/BLACK)
-
255433430 GUARD, MUD MOD (REAR/RIGHT/BLACK)GUARD, MUD MOD (REAR/RIGHT/BLACK)
-
267670057 NUT, SPEEDNUT, SPEED
-
275811111 FOILFOIL
-
285811106 FOIL, FRONTFOIL, FRONT
-
295811087 FOIL (6X1)FOIL (6X1)
-
307079902 DECAL, CARBURETOR/FILTER INFODECAL, CARBURETOR/FILTER INFO
-
317541925 NUT, NYLOKNUT, NYLOK
-
327555792 WASHERWASHER
-
337556034 WASHERWASHER
-
347511989 SCREWSCREW
