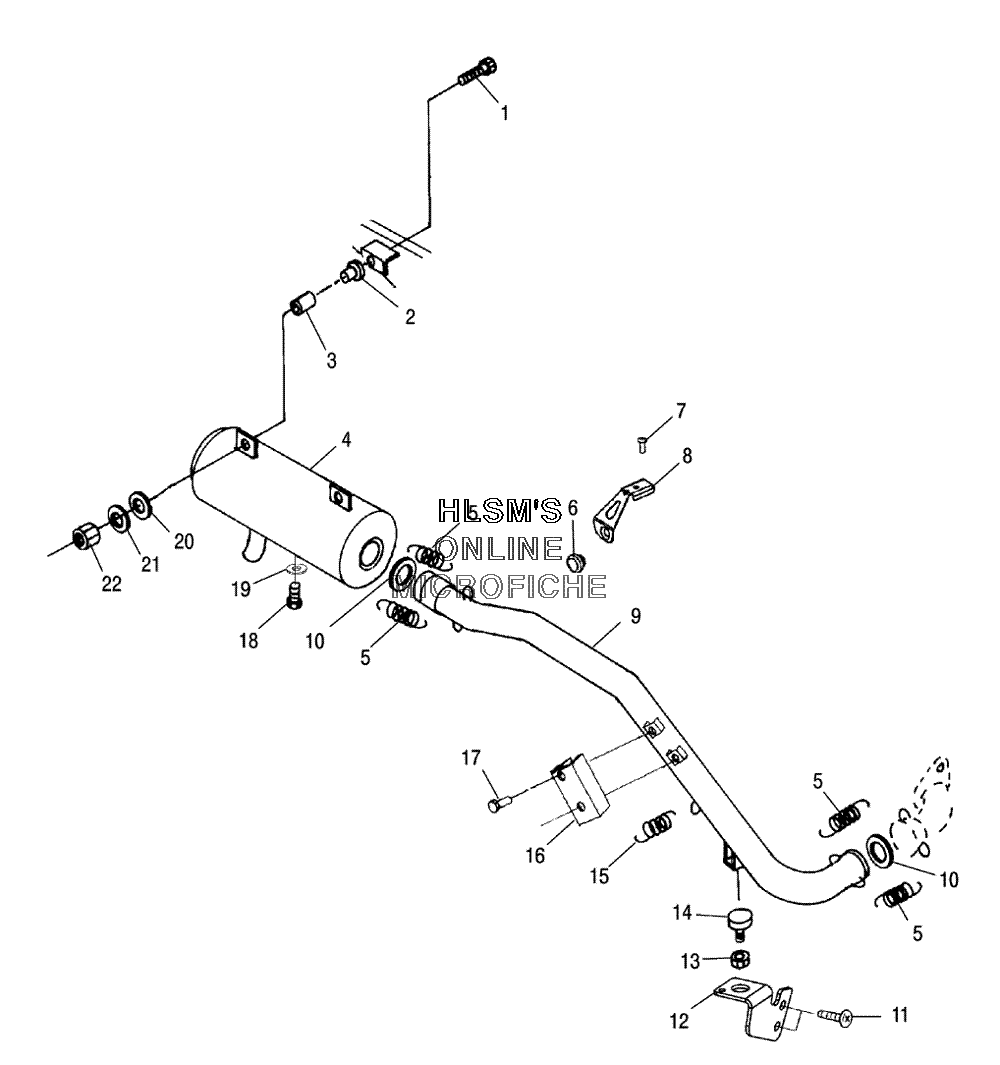

EXHAUST SYSTEM для Polaris SPORTSMAN 6X6 (A05CL50AA) - 2005 года выпуска
-
№АртикулНазвание
-
17515316 BOLTBOLT
-
25412233 DAMPENER VIBRATIONDAMPENER VIBRATION
-
35010192 BUSHINGBUSHING
-
41260989-029 SILENCER (BLACK)SILENCER (BLACK)
-
57041804 SPRINGSPRING
-
65412067 BUMPER RUBBERBUMPER RUBBER
-
77517386 SCREWSCREW
-
85246408 BRACKET SUPPORT, SIDE PANEL (RIGHT)BRACKET SUPPORT, SIDE PANEL (RIGHT)
-
91261245-029 PIPE, EXHAUST (1.62 OD) (BLACK)PIPE, EXHAUST (1.62 OD) (BLACK)
-
105243518 SEAL, EXHAUSTSEAL, EXHAUST
-
117512232 BOLTBOLT
-
125242344 BRACKET EXHAUST SUPPORT PLATEDBRACKET EXHAUST SUPPORT PLATED
-
137542301 NUT HEXAGONNUT HEXAGON
-
143110064 MOUNT, TORQUE STOPMOUNT, TORQUE STOP
-
157042029 SPRINGSPRING
-
165244014 SHIELD HEAT, EXHAUSTSHIELD HEAT, EXHAUST
-
177517615 SCREWSCREW
-
187512666 BOLTBOLT
-
197556230 WASHER CLEAN OUT (.51X.75X.09)WASHER CLEAN OUT (.51X.75X.09)
-
205410436 WASHER, RUBBERWASHER, RUBBER
-
217555716 WASHERWASHER
-
227542324 NUT, NYLOKNUT, NYLOK
