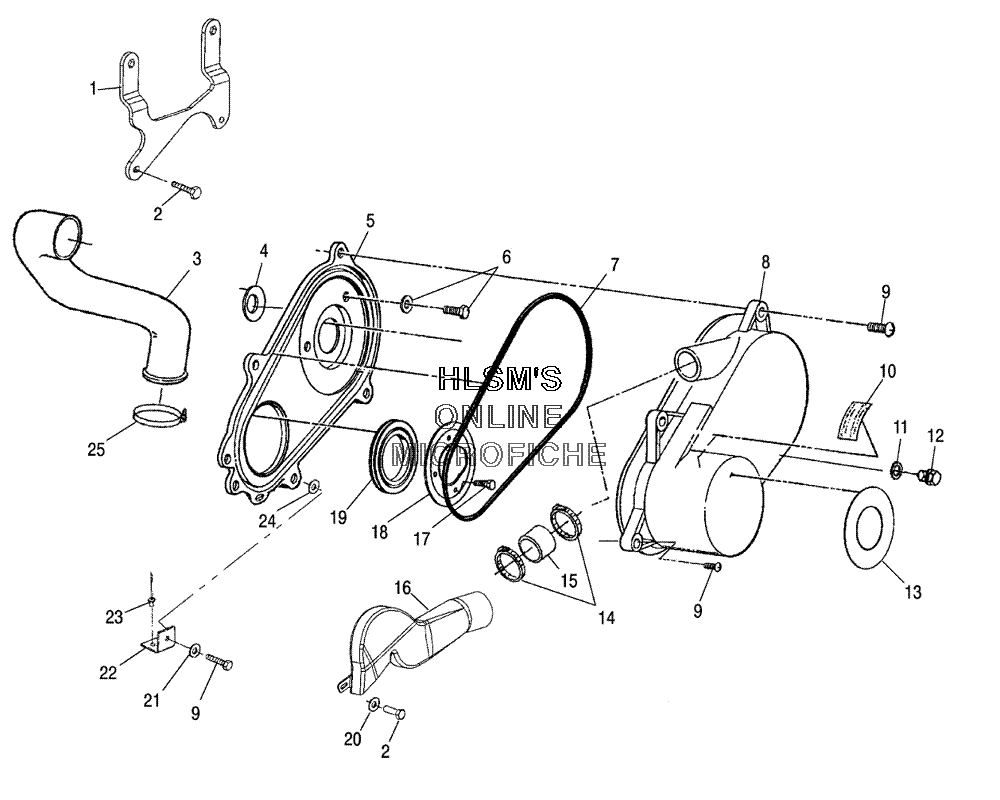

CLUTCH COVER для Polaris SPORTSMAN 6X6 (A05CL50AA) - 2005 года выпуска
-
№АртикулНазвание
-
15247524-067 BRKT CLUTCH COVER (BLACK)BRKT CLUTCH COVER (BLACK)
-
27512232 BOLTBOLT
-
35433427 DUCT CLUTCH AIR INLETDUCT CLUTCH AIR INLET
-
45411553 SEAL, COVER (INNER)SEAL, COVER (INNER)
-
52201957 CLUTCH, COVER KIT (INCL. 9)CLUTCH, COVER KIT (INCL. 9)
-
67510000 BOLT/WASHER ASSY (1.125)BOLT/WASHER ASSY (1.125)
-
75521578 SEAL CLUTCH COVER (OUTER)SEAL CLUTCH COVER (OUTER)
-
85434255-070 COVER CLUTCH, HV (OUTER/BLACK)COVER CLUTCH, HV (OUTER/BLACK)
-
97512094 SCREWSCREW
-
107172563 DECAL, WARNING CLUTCH COVERDECAL, WARNING CLUTCH COVER
-
115410542 O-RINGO-RING
-
125434264 PLUG DRAINPLUG DRAIN
-
137172746 DECAL AUTOMATIC TRANSMISSIONDECAL AUTOMATIC TRANSMISSION
-
147080707 CLAMP, BAND, NARROWCLAMP, BAND, NARROW
-
155411489 BOOT, DUCT HI FLOW (IF BUILT BEFORE 11/15/04)BOOT, DUCT HI FLOW (IF BUILT BEFORE 11/15/04)
-
155412636 BOOT DUCT HI FLOW (IF BUILT AFTER 11/15/04)BOOT DUCT HI FLOW (IF BUILT AFTER 11/15/04)
-
165433657 DUCT, AIROUTLET CLUTCHDUCT, AIROUTLET CLUTCH
-
185242046 BRKT CLUTCH SEALBRKT CLUTCH SEAL
-
195410575 SEAL, COVER CASESEAL, COVER CASE
-
207558301 WASHER, FLATWASHER, FLAT
-
217555935 WASHERWASHER
-
225247949 BRACKET CLUTCH COVER, PLATED (FRONT)BRACKET CLUTCH COVER, PLATED (FRONT)
-
237661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
247556091 SPACERSPACER
-
257080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
