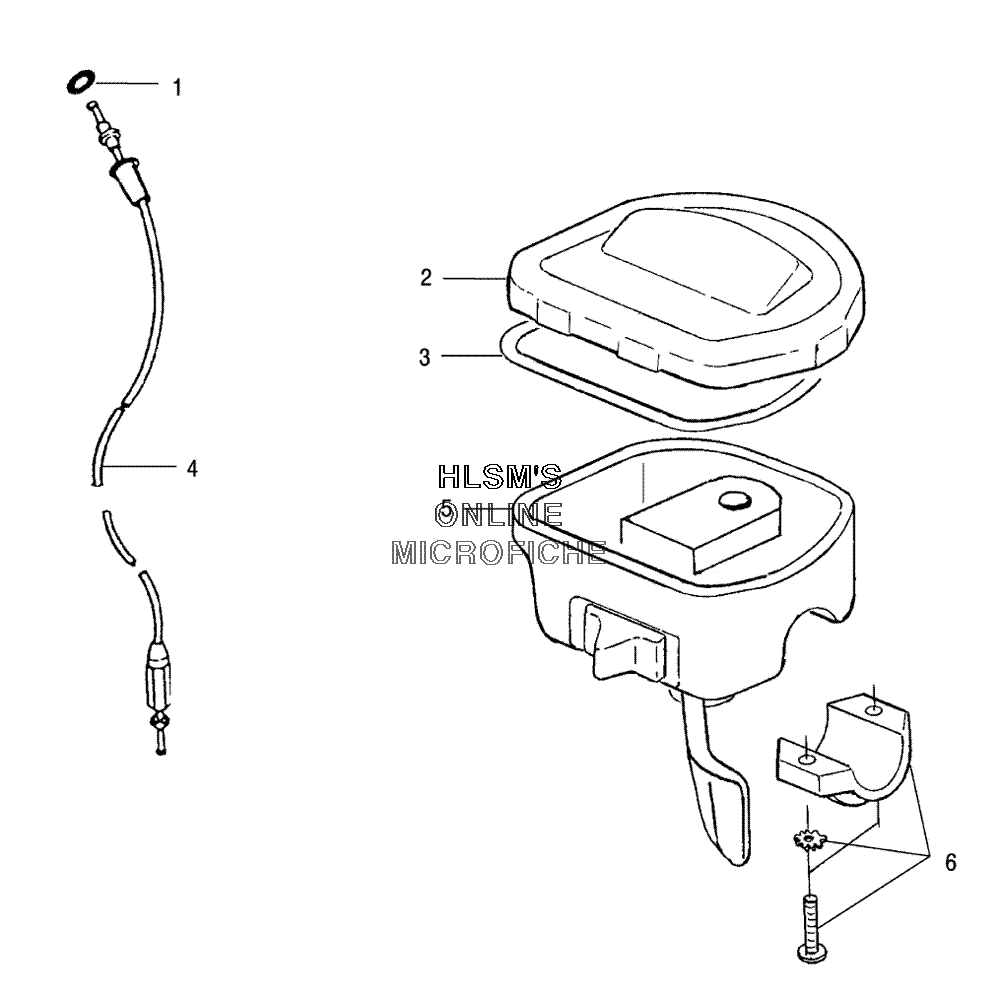

HANDLEBAR - THROTTLE ASSY. W/ CABLE для Polaris SPORTSMAN 6X6 (A05CL50AA) - 2005 года выпуска
-
№АртикулНазвание
-
15410193 O RINGO RING
-
25434113 COVER THROTTLE CONTROLCOVER THROTTLE CONTROL
-
35411439 O RINGO RING
-
47081170 CABLE, THROTTLE (1/4 TURN) (4 STK)CABLE, THROTTLE (1/4 TURN) (4 STK)
-
52010250 THROTTLE CONTROL ASSY, AWD (INCL. 6)THROTTLE CONTROL ASSY, AWD (INCL. 6)
-
62010191 THROTTLE CLAMP, ASSYTHROTTLE CLAMP, ASSY
Все узлы модели:
- AIR BOX ASSY.
- BED - REAR
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - MASTER CYLINDER W/ BRAKE LINE - RIGHT
- BRAKE - REAR CALIPER
- BRAKE - REAR LINES W/ MOUNTING
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECALS
- DIFFERENTIAL - FRONT
- DRIVE - MIDDLE
- DRIVE - REAR
- DRIVESHAFT - FRONT
- DRIVESHAFT - INTERMEDIATE
- ELECTRICAL COMPONENTS
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT
- FUEL PUMP
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- GEARCASE MOUNTING
- GEARCASE SELECTOR MOUNTING
- • HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HANDLEBAR W/ HEADLIGHT
- MAGNETO
- MOUNTING - ENGINE
- OIL FILTER
- OIL PUMP
- OIL TANK
- RACK AND BUMPER MOUNTING - FRONT
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A ARM W/ STRUT MOUNTING
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING
- SUSPENSION - STRUT STABILIZER - REAR
- SUSPENSION - SWING ARM WELDMENT - REAR
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR AND MIDDLE
